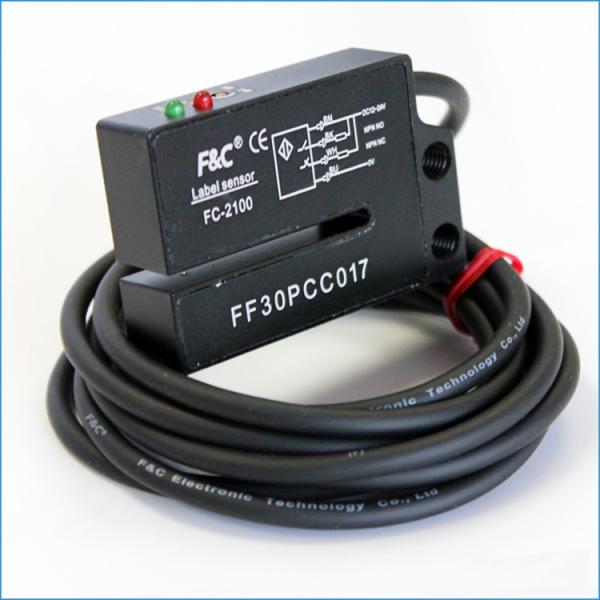

F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
F&C normal sticker label sensor 2mm slot labeler machine usage
Specifications
Brand Name :
F*C
Model Number :
FC-2100
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
1pcs
Price :
USD25-38 per pieces
Payment Terms :
TT
Supply Ability :
50pcs per week
Delivery Time :
7-10days
Packaging Details :
single box package
Power supply :
12-24V DC
Output type :
NPN NO. NC
Acuracy :
0.5mm
Slot width :
2mm
Application :
Normal sticker label
Cable length :
standard 2m cable
Load current :
100mA at 24VDC
Response time :
500us MAX
Description

F&C normal sticker label sensor 2mm slot labeler machine usage

What is optical label sensor?

Optical label sensor distinguish the lightness of label pass through and the slot between labels to help the machine working and it is suitable for normal kind of sticker or adhesive label. for example:

F&C normal sticker label sensor 2mm slot labeler machine usage

F&C normal sticker label sensor 2mm slot labeler machine usage

Specifications for sticker Label sensor:

Model FC-2100
Output type NPN NO NC
Detection distance 2mm
Light source 940nm infrared modulated light
Operating voltage DC12-24V±10%
Current consumption 15mA Max
Load current 100mA Max at DC ;24V
Protection circuit Reverse polarity protection and short circuit protection
Response time 500us Max
Leakage current <0.01mA no-load
Operating temperature -10℃-+50℃(without icing or condensation)
Storage temperarure -20℃~+60℃(No freezing )
Ambient humidity 35%-85% RH
Protection degree IP66
Meterial Aluminium metal sheet
Wiring method φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires

F&C normal sticker label sensor 2mm slot labeler machine usage
