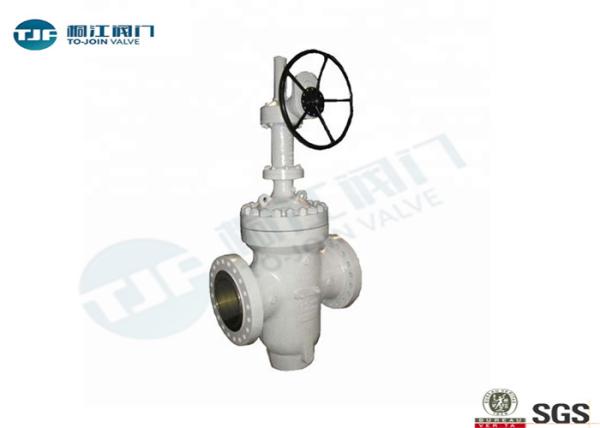

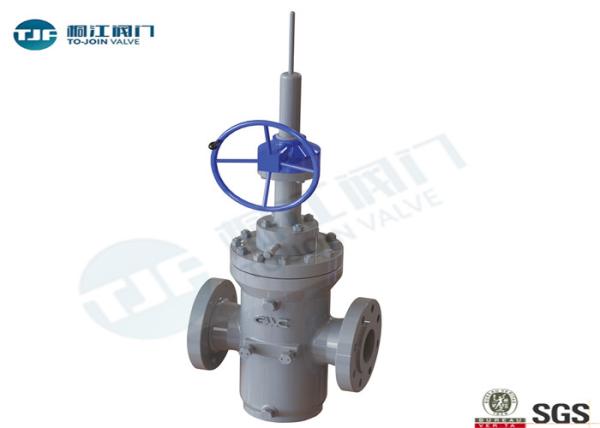

Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3 - 24
Specifications
Brand Name :
TongJiang
Model Number :
Bellow Seal Gate Valve
Certification :
IOS 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Gate Valve Material :
Cast Steel
Gate Valve Connection :
Full Bore allows for pigs & scrapers
Gate Valve Pressure Rating :
150lb - 1500lb
Gate Valve Temperature :
-29-425℃
Gate Valve Media :
Water, gas,Oil , Petrol etc.
Gate Valve Standard :
ANSI B16.5
Gate Valve Size :
3″~24″
Gate Valve Application :
Chemical Industry, Power Plant
Description

Stainless 316 Gate Valve , Bolted Bonnet, Parallel Side , API 600

PRODUCT INTRODUCTION

1. Slab Gate Valve

Slab gate valves are full-port valves, which means the hole in the gate is exactly the same size as the pipe. This full port design provides full flow through the valve and low pressure drop, and it allows for pigging the line when needed.

Slab gate valves are used mostly for petroleum products, including crude oil, gasoline, and diesel. Some are also used for gas service. They can be found at pump stations and along the lengths of pipelines, either buried or above ground. In short, these valves are everywhere.

2. Slab Gate Valve Features

  • API-6D
  • Full Bore allows for pigs & scrapers
  • Bosses for taps & bypass
  • Continual low turbulent flow
  • Block & bleed capable
  • Ring Joint Bonnet gaskets (Class 600lb-4500lb)
  • Self relieving floating seats
  • Long lasting protected seat faces
  • Fugitive emission tested
  • NACE MR-01-75

3. Options

  • Alternative Trims
  • Mounting Pads for Actuation
  • Gear Operated (Recommended for 6" and larger)
  • Alternative Materials

4. Standards

  • API-6D
  • ANSI B16.5
  • ANSI B16.47
  • MSS SP-25

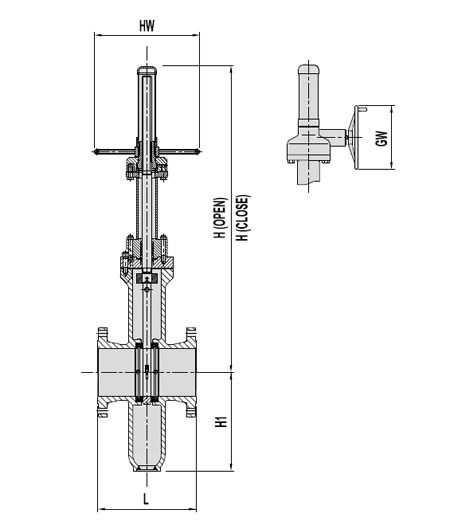

5. Bellow Seal Gate Valve Drawing

Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3

Sizes L H1 H (CLOSE) H (OPEN) HW GW
3" 8 (203) 7-5/64 (180) 23-7/16 (595) 27-5/32 (690) 10-5/8 (270) /
4" 9 (229) 9-3/4 (248) 26-3/16 (665) 31 (787) 11-13/16 (300) /
6" 10-1/2 (267) 13-1/2 (343) 34-11/32 (872) 41-17/32 (1055) 13-3/4 (350) /
8" 11-1/2 (292) 16-3/8 (416) 40-1/2 (1030) 49-3/4 (1263) 13-3/4 (350) /
10" 13 (330) 19-11/16 (500) 44-3/4 (1136) 56 (1420) 15-3/4 (400) /
12" 14 (356) 22-23/32 (577) 50-29/32 (1293) 64 (1627) 17-3/4 (450) 12-7/32 (310)
14" 15 (381) 25 (635) 54-15/16 (1395) 69-1/2 (1765) / 12-7/32 (310)
16" 16 (406) 28-21/32 (728) 63-1/4 (1606) 80 (2031) / 12-7/32 (310)
18" 17 (432) 31-11/16 (805) 67-3/4 (1720) 86-1/4 (2190) / 18-1/8 (460)
20" 18 (457) 34-3/4 (883) 72-5/32 (1833) 92-1/2 (2350) 25-3/16 (640) 18-1/8 (460)
24" 20 (508) 41-15/16 (1065) 86-9/64 (2188) 111-13/32 (2830) 28-11/32 (720) 18-1/8 (460)

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

COMPANY PROFILE (Video)

floa

1. Our Factory

30 years experience of valve and pipeline industry.

10 senior technical engineers

20000 m2 production area

More than 100 employees to provide professional service.

As the reliable OEM for famous valve brand companies.

t ball valve

2. Factory Show

TongJiang Valve Technology Company was established for 30 years. There are more than 100 employees which includes 10 professional engineers.

Cast Steel Industrial Gate Valve , API-6D Pipeline Slab Gate Valve 3

OUR SERVICE ball valve

Reliable Quality, Competitive Price

Reply your inquiry in 2 hours with professional service.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
