Specifications
Brand Name :
TongJiang
Model Number :
Ceramic Double Disc Gate Valve
Certification :
ISO 9001，3C
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Gate Valve Material :
WCB, CF8 , CFM8
Gate Valve Connection :
GB/T12224, ASME B16.34
Gate Valve Pressure Rating :
PN10,PN16,PN25,PN40, CL150, CL300
Gate Valve Temperature :
-29 °C ~ +200 °C
Gate Valve Actuator :
Pneumatic
Gate Valve Standard :
ASME B16.34
Gate Valve Size :
DN25-DN400(1”-16”)
Gate Valve Application :
Steel plant and Coal power
Description

Ceramic Double Disc Gate Valve with Penumatic Actuator in WCB, CF8

PRODUCT INTRODUCTION

Description

Introduction:

The Ceramic Double Disc Valve is ceramics-to-ceramics sealing, also named as parallel double disc valve, or ceramic double disc valve or ceramic double gate valve.

The standard end connection of ceramic double disc valves is flanged type, but if the installation space is limited, wafer type is available.

Three piece bodies of Ceramic Double Disc Valves are very easy for assemble and reliable for maintenance.

Self-cleaning disc design allows disc to move freely and avoid being scratched by solid particles.

Temperature Range

Usually working temperature of pneumatic conveying system is not so high, but under some conditions like economizer valves in coal fired power plant, the working temperature may be up to 450 ℃. Then special design of ceramics and packing material will be considered.

Normal working temperature of Ceramic Double Disc Valves: -29 °C ~ +200 °C

High temperature design of Ceramic Double Disc Valves: -29 °C ~ +450 °C

Design standards

Valve body ASME B16.34

Face-to-Face: Manufacturer’s Standard, customized length of Ceramic Double Disc Valves is available.

Valve Testing: API 598

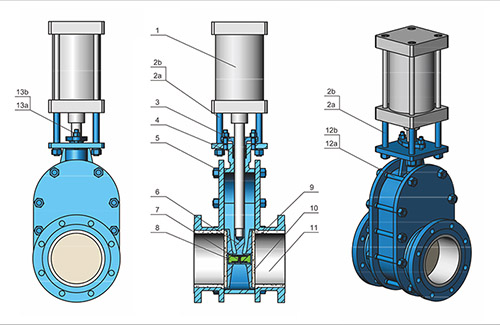

Ceramic Double Gate Valve Drawing and Datasheet

Pneumatic Industrial Gate Valve , Ceramic Double Disc Gate Valve

No. Part Name Material
1 Pneumatic Cylinder Aluminum Aluminum
2a Bolt AISI 1045 F304
2b Nut A194 2H A194 8
3 Packing Gland WCB CF8
4 Packing Graphite Graphite
5 Body WCB CF8
6 Disc Driver WCB CF8
7 Spring 60Si2Mn 17-7PH
8 Disc Adjusting Block AISI 1045 F304
9 Disc A105 F304
10 Disc Sealing Ring Ceramics Ceramics
11 Seat Ceramics Ceramics
12a Body Bolt A193 B7 A193 B8
12b Body Nut A194 2H A194 8
13 Gland Bolt A193 B7 A193 B8
13b Gland Nut A194 2H A194 8
