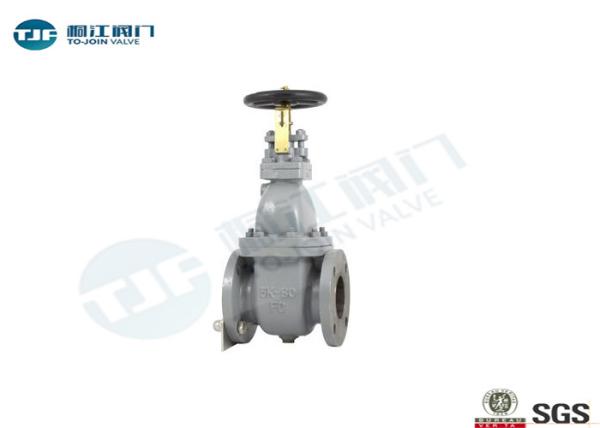

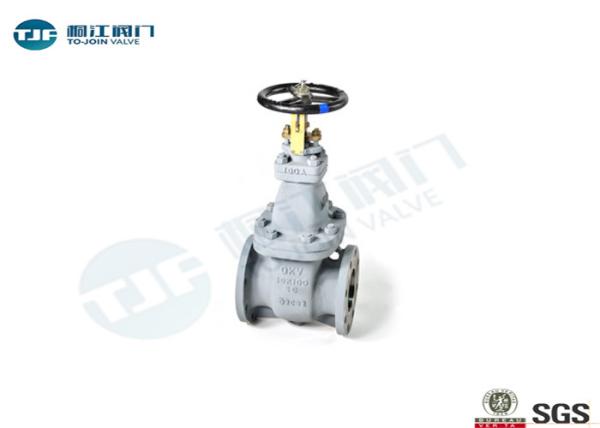

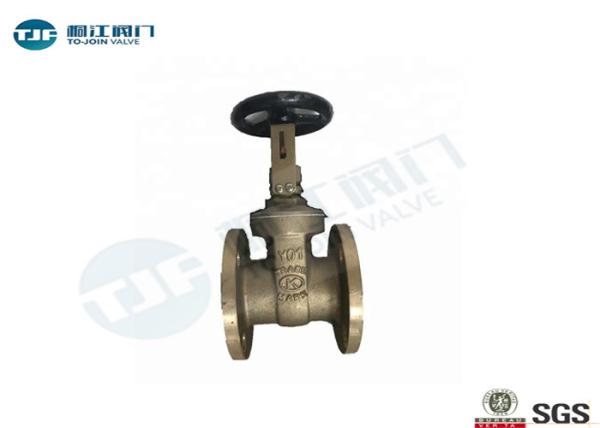

JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional
Specifications
Brand Name :
TongJiang
Model Number :
Marine Flanged Gate Valves
Certification :
ISO 9001，3C
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Gate Valve Material :
Cast iron, Cast Steel, Marine bronze Rg5, Stainless Steel
Gate Valve Connection :
Flanged Type
Gate Valve Pressure Rating :
JIS 5K/10K/16K/20K
Gate Valve Temperature :
Less than 120 ℃
Gate Valve Media :
Sea water, Fresh Water and Lube Oil
Gate Valve Standard :
JIS flanges acc.to 5K/10K/16K/20K
Gate Valve Size :
DN 50- DN 300
Gate Valve Application :
Oil piping, Lubricating, Water, Steam piping
Description

JIS F 7366 Marine Flanged Gate Valve JIS 5K - 40K , Bronze Stainless Steel

PRODUCT INTRODUCTION

Description

The JIS marine valve are used for controlling the medium to open and close in fuel oil piping, lubricating, water, steam piping at temperature 120℃ or less.

Design:

Body: Cast iron, Cast Steel, Marine bronze Rg5, Stainless steel

Steam/seat: Marine bronze Rg5,

Stainless steel Flange Dimensions: JIS flanges acc.to5K/10K/16K/20K

Pressure Rating: 5K-40K

Upon Request: Pressure test certificate 3.2 ABS

Nominal Size: DN15-DN40

Applicable Medium: Sea water, oil and steam

Working Temperature: Normal

Flange Connection: According to JIS flange connection Standard.

Marine Gate Valve Drawing and Datasheet

DESIGN STANDARD JIS F 7366-1996
TEST JIS F 7400-1996
HYDRAULTC INSPECTION
TEST PRESSURE/MPA DODY 2.1
SEAT 1.54
JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional

9 DISC SC450
8 HANDWHEEL FC200
7 GASKET NON-ASBESTES
6 PACKING GLAND BC6
5 STEM CA771BD SUS403
4 VALVE SEAT BC6 SCS2
3 VALVE SEAT BC6 SCS2
2 BONNET SC450
1 BODY SC450
NAME OF PART CLASS B CLASS C
MATERIAL
CAST STEEL 10K GATE VALVE

DN d L D C NO. h t H D2
50 50 200 155 120 4 19 16 300 140
65 65 220 175 140 4 19 18 350 160
80 80 230 185 150 8 19 18 400 180
100 100 250 210 175 8 19 18 450 200
125 125 270 250 210 8 23 20 520 224
150 150 290 280 240 8 23 22 580 250
200 200 310 330 290 12 23 22 700 315
250 250 340 400 355 12 25 24 840 400
300 300 380 445 400 16 25 24 960 450

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

COMPANY PROFILE (Video)

floa

1. Our Factory

30 years experience of valve and pipeline industry.

10 senior technical engineers

20000 m2 production area

More than 100 employees to provide professional service.

As the reliable OEM for famous valve brand companies.

t ball valve

2. Factory Show

TongJiang Valve Technology Company was established for 30 years. There are more than 100 employees which includes 10 professional engineers.

JIS F 7366 Flanged Gate Valve Bronze / Stainless Steel Type Optional

OUR SERVICE ball valve

Reliable Quality, Competitive Price

Reply your inquiry in 2 hours with professional service.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
