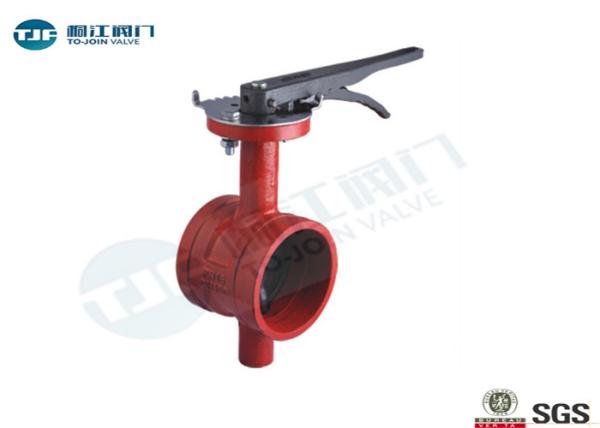

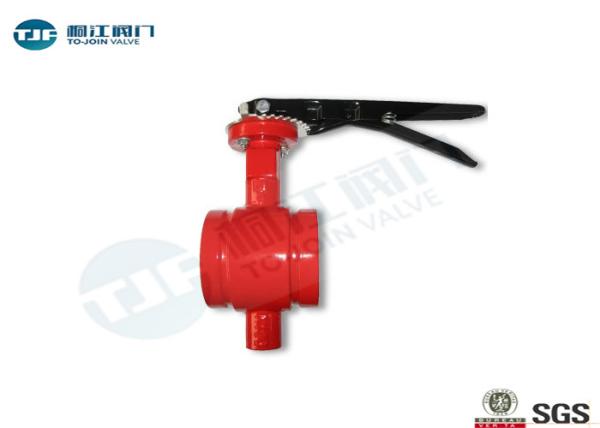

Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125
Specifications
Brand Name :
TongJiang
Model Number :
Grooved Butterfly Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Butterfly Valve Material :
Ductile Iron
Butterfly Valve Connection :
Class 125
Butterfly Valve Flow Bore :
Full port
Butterfly Va lve Temperature :
-20°C ~ 120°C
Butterfly Valve Actuator :
Lever Handle, Gear Operator, Pneumatic, Electric
Butterfly Valve Face to Face :
API 609
Butterfly Valve Size :
2"-12" ” (DN50-DN300)
Butterfly Valve Application :
Water, Seawater, Cold/hot water pipeline, mechanical rooms
Description

Butterfly Valve Grooved End with Ductile Iron API 609 , Class 125

PRODUCT INTRODUCTION

1. Description

Design feature:

Suitable for use in mechanical rooms, process lines, water lines, and cold/hot water pipelines.

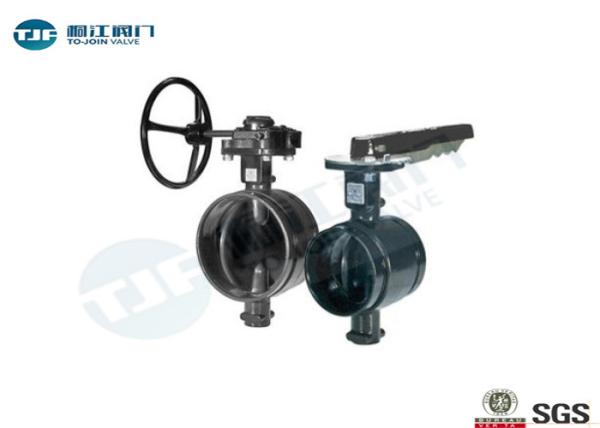

Available in Lever Handle and Gear Operator

Nickel plated ductile iron disc are available as standard feature. Optional BUNA-N or EPDM encapsulated with ductile iron disc for bubble tight shutoff.

Groove end designed to ANSI/AWWA C-606 Rigid Groove Specifications.

Groove End compatible with IPS pipe. Concentric disc design

Two piece shaft design of the disc, increasing cycle life. ISO 5211 mounting flange accommodates automation installations, including pneumatic and electric actuators.

Specification

Size Range : 2"-12" ” (DN50-DN300)
Valve Material : ASTM A536 GR 65-45-12 / GGG50
End Connections : Grooved End
Disc Material : Ductile Iron Nickle Plated with EPDM encapsulated
Stem Material: SS416

Features

Quality Assurance to ISO 9001
Work temperature: -20°C ~ 120°C (-4°F ~ 248°F)
Rating: Class 125
Operation: Lever Handle, Gear Operator, Pneumatic, Electric
Service Application: Water, Seawater, cold/hot water pipeline, mechanical rooms
Standards: API 609, ANSI/AWWA C-606, MSS SP-67

Safety/Quality Approvals

ISO 9001

Grooved Butterfly Valve Drawing and Datasheet

Ductile Iron Wafer Butterfly Valve Grooved End Type API 609 Class 125

A B H D E F G Ф L C C1 C2 S

Top

Flange
DN50 100 70 83 51 57 60 67 12.6 32 90 10 70 10 F07
DN65 106 75 97 64 69 73 80 12.6 32 90 10 70 10 F07
DN80 113 82 97 76 85 89 97 12.6 32 90 10 70 10 F07
DN100 135 100 116 100 110 114 123 15.7 32 90 10 70 12 F07
DN125 148 119 148 128 137 141 151 19 32 90 10 70 14 F07
DN150 176 130 148 152 164 168 180 19 32 90 10 70 14 F07
DN200 204 162 134 203 214 219 231 22 45 125 12 102 17 F10
DN250 228 200 159 253 268 273 284 28.5 45 125 12 102 22 F10
DN300 266 234 164 303 318 324 335 32 45 125 12 102 24 F10
