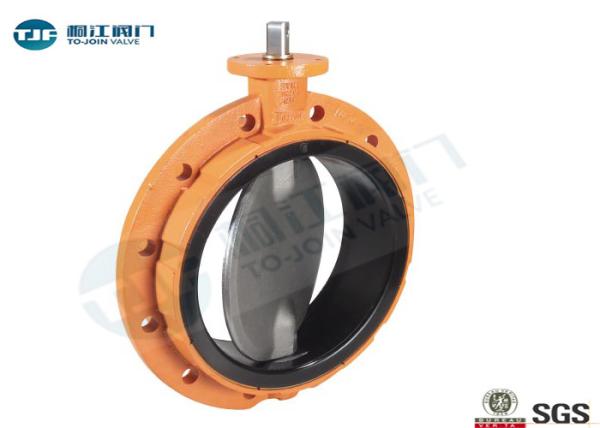

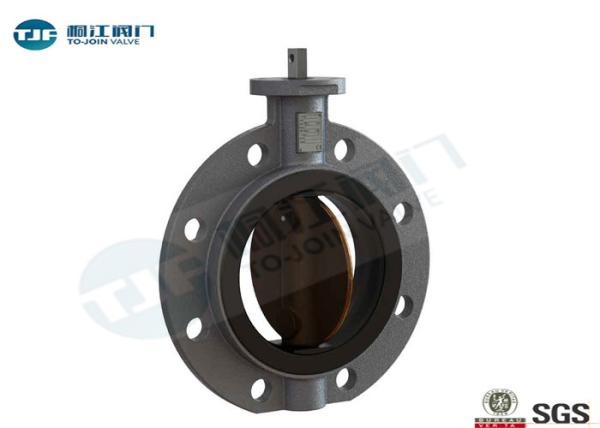

Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150
Specifications
Brand Name :
TongJiang
Model Number :
Marine Ductile Iron Butterfly Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Butterfly Valve Material :
Carbon steel, Stainless steel, Ductile iron, Duplex, Aluminium bronze
Butterfly Valve Connection :
Mono Flange Type
Butterfly Valve Pressure :
PN6, PN10, PN16
Butterfly Va lve Temperature :
0 °C to 200 °C
Butterfly Valve Actuator :
Manual, electric & pneumatic actuation
Butterfly Valve Face to Face :
EN558-1 series 13
Butterfly Valve Size :
DN50-DN300
Butterfly Valve Application :
Dams & hydropower, HVAC, Industrial, Irrigation, Sewage & wastewater treatment, Water treatment
Description

Butterfly Valve Ductile Iron Body , Viton Lined , Mono Flange Type , ANSI 150

PRODUCT INTRODUCTION

Description

This concentric mono flanged valve, is suitable for mounting between flanges and can be used in many general applications such as in water distribution, water treatment, dams, power plants and in many other. The valve can be used as a stopper, a tap for discharging at the end of the pipeline, open/close and flow control. The threaded holes make it easy to install or uninstall from the pipeline. Operation can be manual, pneumatic, hydraulic or electric.

Specification

Resilient seated, mono flanged centric butterfly valve to DIN-EN 593 Wafer-Type
Shut-off valve for drinking and service water up to 100°C
DN50 – 300, PN6 – 10 – 16
Face-to-face length DIN EN 558-1, basic series 20 (DIN 3202, series K1)

General information

  • Replaceable rubber sleeve with integrated seal for functionally reliable use for flared flanges, welding flanges, PE flanges as well as loose flanges with V-collar
  • Stable sealing seat due to liner with vulcanized support ring
  • Tight in both flow directions
  • Anti-blowout shafts
  • Tightness to DIN EN 12 266-1, leak-rate A
  • Actuator flange connection acc. to ISO 5211
  • Body: cast iron GG25
  • Disc: ductile cast iron GGG50
  • Sleeve: EPDM
  • Valve shaft: stainless steel 1.4021
  • Maintenance-free shaft bearings
  • Certificate EN10204 3.1

Corrosion protection

  • Body: internally and externally epoxy coated, coating thickness >250 µm, blue RAL 5010
  • Disc: epoxy coated

Butterfly Valve Drawing and Datasheet


Ductile Iron Wafer Butterfly Valve Viton Lined Mono Flange Type ANSI 150

DN 40 50 65 80 100 125 150 200 250 300
A 40 52 68 82 104 127 151 201 252 304
B 61 67 74 82 100 112 134 159 195 220
C 113 118 126 133 147 160 180 204 245 270
D 33 43 46 46 52 56 56 60 68 78
E 11 11 11 11 11 14 14 17 22 22
F 25 25 25 25 25 28 28 28 30 30
G 12 12 12 14 14 14 14 14 15 15
H 90 90 90 90 90 90 90 90 125 125
K 3.5 4.7 11 18 26 35 47 70 91 113
L 23 30 49 68 90 114 140 192 243 293
N (ISO 5221) F07 F07 F07 F07 F07 F07 F07 F10 F10 F10
nxO 4 x 9 4 x 9 4 x 9 4 x 9 4 x 9 4 x 9 4 x 9 4 x 11 4 x 11 4 x 11
Torque (Nm)* 13.75 18.75 26.25 43.75 60 106.25 218.75 275 375 487.5
Weight Kg 2.7 3 4 4.2 6.1 8.3 10.3 15 25.8 33.6
