Specifications
Brand Name :
TongJiang
Model Number :
Aluminium Bronze Butterfly Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Butterfly Valve Material :
Aluminium Bronze Body & Disc • NBR Liner
Butterfly Valve Connection :
Multi-Flange Wafer
Butterfly Valve Pressure :
PN16
Butterfly Va lve Temperature :
-10°C to 120°C
Butterfly Valve Actuator :
Lever operated as standard (50-200mm)
Butterfly Valve Face to Face :
ANSI16.34
Butterfly Valve Size :
DN50 to D300 • Wafer
Butterfly Valve Application :
Air ,Inert Gas, Oil, Seawater ,Water
Description

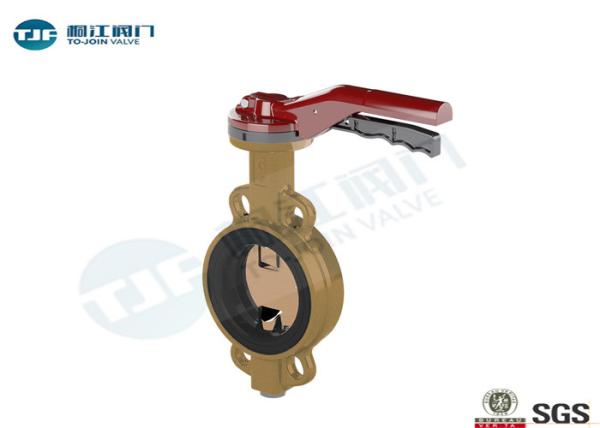

Wafer Butterfly Valve in Aluminium Bronze , NBR Lined ,PN 16

PRODUCT INTRODUCTION

Description

Marine Butterfly Valves are well proven within the marine industry and can be found onboard ship where critical applications demand maximum reliability.

At Valves Online we supply a range of Wafer Pattern and Lugged marine butterfly valves for ballast systems, compressed air, liquid and dry cargo, HVAC, seawater cooling, hydrocarbon based oils and fuel.

Valves are manufactured to meet marine approval standards and can be operated manually via lever or gearbox, or actuated (electric or pneumatic).

This butterfly valve has an aluminium bronze body and disc with a NBR liner making it an effective solution for marine applications. The butterfly valve offers quick opening and closing with full flow in either direction and leak tight shut off. Flange gaskets not needed since the lining that extends onto the faces acts as a gasket.

Features & Benefits

• Suitable for marine applications

• ISO 5211 for direct mount actuation

• Lever operated as standard (50-200mm)

• Gearbox operated as standard (250-300mm)

• Lugged & larger sizes available on request

Pressure & Temperature

Pressure range:- PN16

Temperature range:- -25oC to 100oC

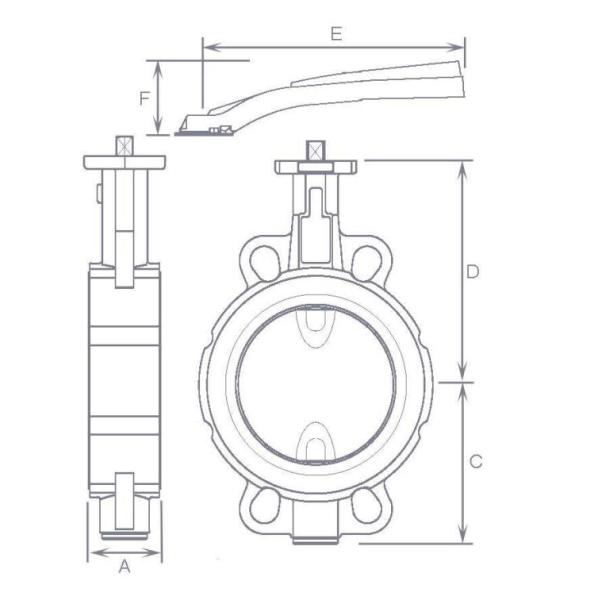

Butterfly Valve Drawing and Datasheet


Aluminum Bronze Wafer Butterfly Valve , NBR Lined Butterfly Valve PN 16

DN 50 65 80 100 125 150 200 250 300
A 43 46 46 52 56 56 60 68 78
C 81 98 110 128 140 155 190 220 247
D 138 144 158 173 186 202 240 270 300
E 220 220 220 220 275 275 340 - -
F 67 67 67 67 67 67 76 - -
ISO 5211 F07 F07 F07 F07 F07 F07 F10 F10 F10
Torque (Nm)* 18.75 22.5 50 60 87.5 112.5 262.5 400 487.5
Weight Kg 4 4.7 5 7 8.2 10.1 15 25 35
