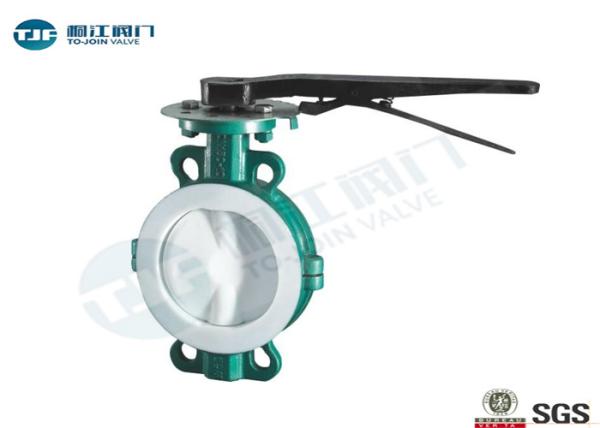

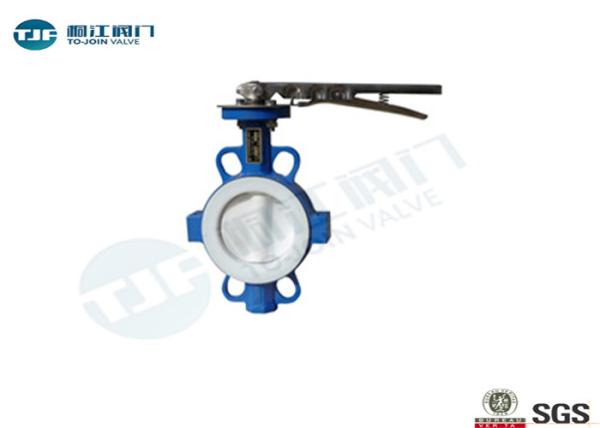

PTFE Lined Butterfly Valve with Wafer type in Cast Iron , Class 150

PRODUCT INTRODUCTION

Description

Like the full PTFE High-Performance Butterfly Valve sets the standard for reliability and service life. It is used for corrosive and toxic media, acids and other special applications. Particularly noteworthy is the unique stem seal, which is far superior to all conventional sealing methods. The high flow rate values (Kv) are achieved in particular by the streamlined design of the valve disc. The material selection of the PTFE butterfly valve is diverse, from PTFE and stainless steel to UHMWPE and special materials - suitable for the respective customer requirements.

PTFE Lined butterfly valve Specification

Stocking Sizes: 2″ – 12″
Pressure: 1.6Mpa
ANSI Class: 125/150 Capable
Features: Pinless Disc, 2-Piece Split Body
Body Material: Ductile Iron+Epoxy Coating
Disc Materials: A216 WCB+Teflon Coating
Seat Materials: Teflon Bonded Over EDPM
Stem Materials: 304 Stainless Steel
Stem Style: Double D Shaft
Operator: Lever, Gear or Actuator

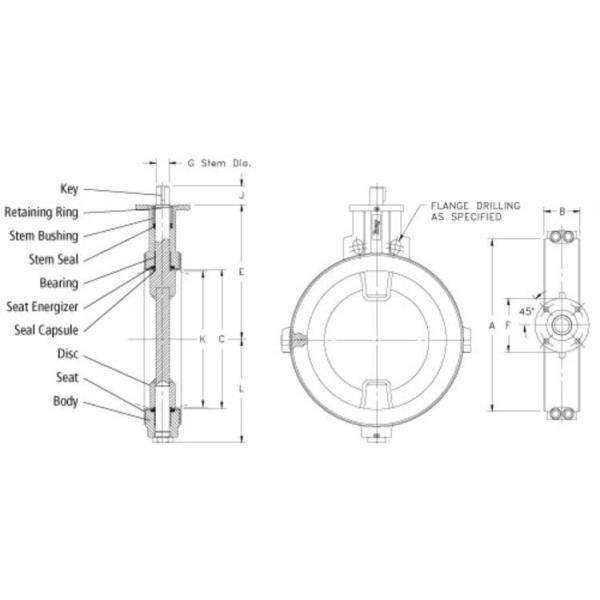

Butterfly Valve Drawing and Datasheet


ASME Wafer Butterfly Valve , Full PTFE High Performance Butterfly Valves

​
DIMENSIONS AND WEIGHTS
Note: K dimension is disc chordal dimension at valve face.
Size in A B C E F G H J K L Adapt.
Code		 Weight lb
Wafer Lug Wafer Lug
2 3.88 1.69 2.00 5.50 3.54 .55 .39 1.25 1.13 2.22 2.30 A 6.5 8.0
2½ 4.38 1.81 2.50 6.00 3.54 .55 .39 1.25 1.77 2.47 2.57 A 7.5 10.0
3 5.00 1.81 3.00 6.25 3.54 .55 .39 1.25 2.44 2.81 2.81 A 8.5 11.0
4 6.25 2.05 4.00 7.00 3.54 .63 .43 1.25 3.48 3.56 4.09 B 13.5 17.5
5 7.38 2.20 5.00 7.50 3.54 .75 .51 1.25 4.53 4.28 4.61 C 16.0 21.0
6 8.50 2.20 5.75 8.00 3.54 .75 .51 1.25 5.35 4.78 5.06 C 20.5 28.5
8 10.62 2.36 7.75 9.50 5.91 .87 .63 1.25 7.43 6.03 6.05 D 38.5 51.5
10 12.75 2.68 9.75 10.75 5.91 1.18 .87 2.00 9.42 7.41 7.69 E 62.0 76.0
12 14.88 3.07 11.75 12.25 5.91 1.18 .87 2.00 11.39 8.41 9.02 E 76.0 116.0
14 17.05 3.07 13.25 13.62 5.91 1.38 2.00 .39x.39 13.00 10.02 10.02 F 125 148
16 19.21 4.02 15.25 14.75 5.91 1.38 2.00 .39x.39 14.75 11.99 11.99 F 180 218
18 21.12 4.49 17.25 16.00 8.27 1.97 2.50 .39x.47 16.65 13.94 13.94 G 240 273
20 23.25 5.00 19.25 17.25 8.27 1.97 2.50 .39x.47 18.73 14.94 14.94 G 320 368
