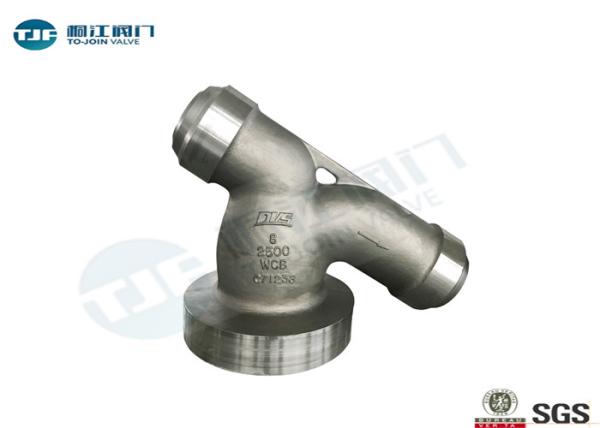

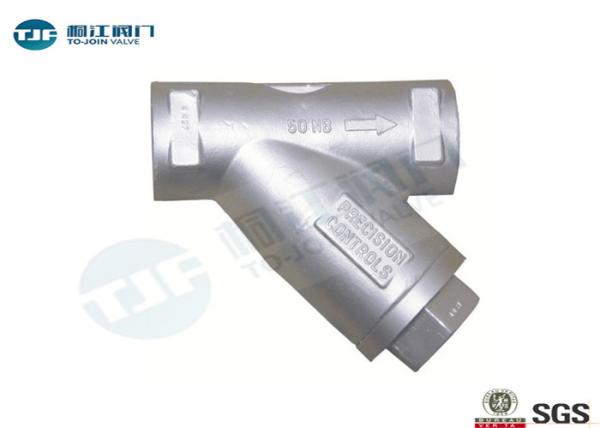

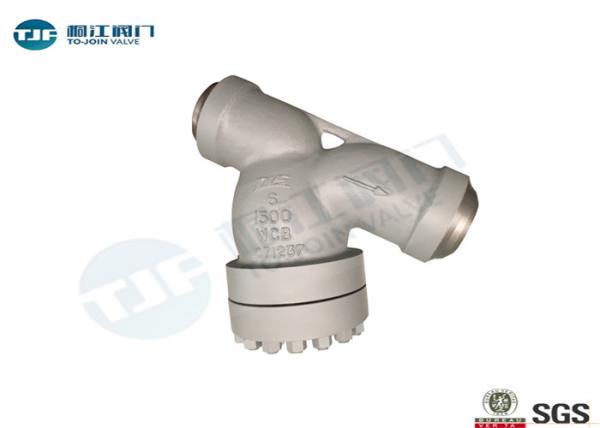

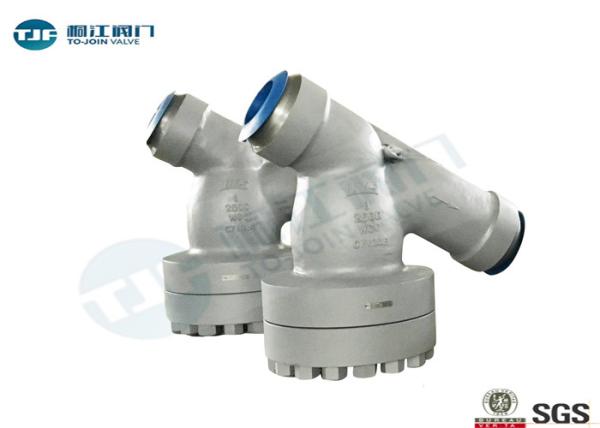

Y Type Strainer, WCB, Cast Steel with Socket Welded and Butt Welded

Y Strainer Product Introduction

1. Description

Y Type Strainers are devices used to separate unwanted solid particles from gas, liquid or steam flowing in a pipe. They derive their name from their shape. The Y-type strainer is commonly applied in pressurized fluid lines as well as in vacuums and suction conditions. It is used where small solid particles are expected within the fluid and there is a less frequent clean out. They make use of a filtering element which is basically a perforated wire mesh. In instances where the material to be cleaned out from the flow is small hence long duration before screen cleaning, the line is shut down and the strainer cap removed to allow for manual cleaning of the strainer screen. In applications with high dirt density, a blowing system is fitted so that the screen can be cleaned without the need to remove it from the strainer.

Socket Welded and Butt Welded Y Type Strainer

Socket and Butt welded type are suitable for high presure pipeline.

Filtration area is 3 times larger than the inlet area, therefore the pressure loses slightly.

As the mesh area is wide, you can choose double-decked mesh microns.

The body and filtration net can be made according to customer’s demand.

2. Features

Socket Welded and Butt Welded Y Type Strainer Performance Parameters

3. Y Strainer Outsize Drawing

ST-60 DN20-50 S.W. External Dimensions (mm)

ST-61 DN65-200 B.W. External Dimensions(mm)

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
