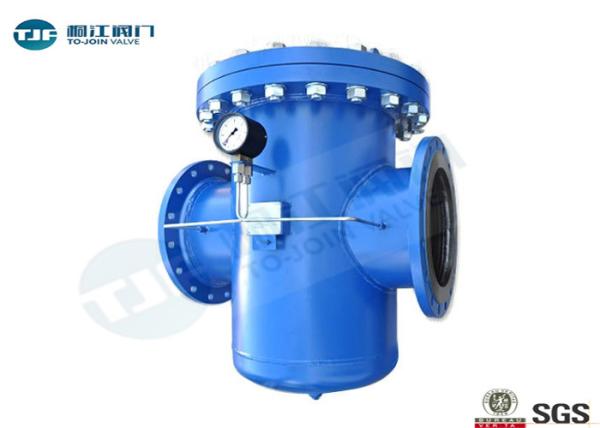

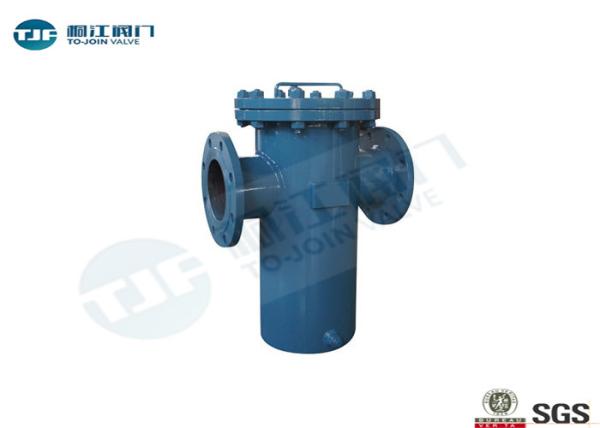

Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer
Specifications
Brand Name :
TongJiang
Model Number :
T Strainer Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Strainer Valve Body Material :
Steel Pipe, Stainless Steel Pipe
Stainer Valve Screen Material :
SUS 304
Strainer Valve Connection Type :
Flange
Strainer Valve Medim :
Water, Oil, Steam
Strainer Valve Pressure Class :
PN 1.6~2.5Mpa
Strainer Temperature :
Max.T. 220℃
Description

Basket Strainer, Simplex Strainer, WCB, Stainless Steel with Flange PN 16 Bar

Y Strainer Product Introduction

1. Description

Basket Strainer. An official definition adopted by the Fluid Controls Institute is: "A closed vessel with cleanable screen element designed to remove and retain foreign particles down to 0.001 inch diameter from various flowing fluids." Note the term "foreign particles". Strainers do not necessarily remove only dirt.

Basket strainer suitables for high viscous fluid and large circulation needs.

Basket strainer suitables for the mixtures of different objects which need large filtration area.

The material, connection mode according to the use purpose can be choosen by customer's requirement.

​

2. Features

Type SB23-16C
Applicable Fluid Water, Oil, Steam
Applicable Inlet Pressure 1.6~2.5Mpa
Applicable Temperature Max.T. 220℃
Connection Mode RF Flanged
Hydrostatic Test 2.4-3.8Mpa
Material Body Steel Pipe, Stainless Steel Pipe
Cover Carbon Steel, Stainless Steel
Screen Stainless Steel(304)
Gasket

Asbestos Sheet

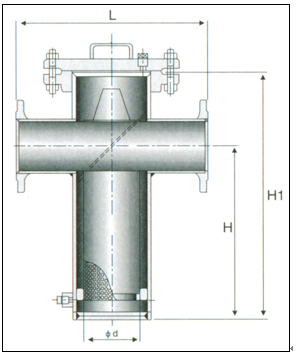

3. T Strainer Outsize Drawing

Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer

Main Dimensions

SB23-16C DN50-500 External Dimensions (mm)

DN L H H1 Screen (d)
DN50 290 135 180 114
DN65 350 150 215 140
DN80 350 160 260 159
DN100 430 170 310 219
DN125 500 200 360 273
DN150 500 215 430 273
DN200 550 65 530 325
DN250 650 300 630 325
DN300 750 360 835 426
DN350 800 370 900 478
DN400 900 395 1030 540
DN450 1050 440 1150 540
DN500 1100 480 1250 620

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

4. T Strainer Valve Packing with Plywood

Flanged Basket Type Strainer , Stainless Steel / WCB Simplex Strainer

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
