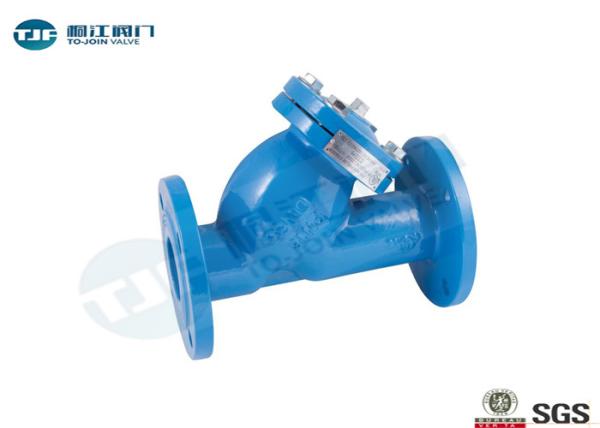

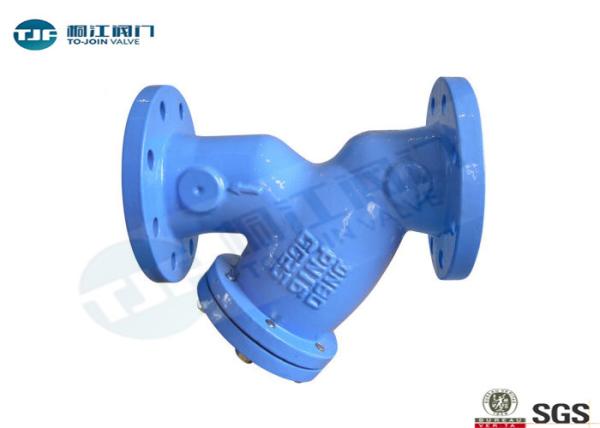

Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5
Specifications
Brand Name :
TongJiang
Model Number :
Y Strainer Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Strainer Valve Body Material :
Cast Steel, Stainless Steel
Stainer Valve Design :
MFG Standard
Strainer Valve Connection Type :
Flange ANSI B16.5
Strainer Valve Medim :
Steam, Air, Kerosene, Water, Weak Corrosive Gases, Liquids
Strainer Valve Pressure Class :
Class 150LB, 300LB, 600LB
Strainer Temperature :
-29～425℃
Description

ANSI Y Strainer Valve , Cast Steel with Manual Operation Flange ANSI B16.5

Y Strainer Product Introduction

1. Description

ANSI Y-filter is a small equipment to remove solids from liquids. It can protect compressors, pumps and other equipment and meters from normal operation and operation, so as to stabilize the process and ensure safety. In addition to improving the quality of products has a very heavy significance, Y-type series filters are suitable for steam, air, kerosene, water, weak corrosive gases, liquids.

2. Features

The flow is fast, so the pressure loss is small, the dirt resistance is strong, and the slag discharge is convenient.

standard

1, design and manufacture conform to MFG standard.

2, The test and test conform to API598.

3, the length of the structure is in line with the MFG standard.

4, flange dimensions meet ANSI B16.5 technical requirements.

3. Main performance parameters

Pressure
150Lb
300Lb
600LB
Test Pressure
Shell Test
3.0MPa
6.5MPa
15MPa
Temperature
-29～425℃
Medium
Water, Oil, Gas

4. Y Strainer Outsize Drawing

Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5

Main Dimensions

Size (in)
ANSI Flange Connection
 Thread Connection
B
C
Mesh cm2
150LB
300LB
600LB
A
A
A
A
1/2"
127
127
130
75
70
110
27
3/4"
145
150
150
80
80
130
43
1"
154
160
160
90
90
150
73
11/4"
180
180
200
110
130
235
135
11/2"
200
210
230
120
147
260
164
2"
230
240
250
140
180
320
251
21/2"
290
290
210
200
325
327
3"
310
310
205
330
361
4"
315
351
255
405
545
5"
410
401
315
510
843
6"
473
478
345
560
1117
8"
593
600
440
710
1909
10"
730
730
503
760
2010

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

5. Y Strainer Valve Packing with Plywood

Flanged Y Strainer Valve Cast Steel Manual Operation Type ANSI B16.5

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
