Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar
Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
Cast steel, Alloy Steel, Stainless Steel
Globe Stop Valve Connection :
Flange
Globe Stop Valve Pressure :
PN 16 Bar, PN 25 Bar, PN 40 Bar
Globe Stop Valve Temperature :
Uo to 425°C
Globe Stop Valve Actuator :
Penumatic Double Acting
Globe Stop Valve Face to Face :
GB/T12235
Globe Stop Valve Size :
DN50 to DN300
Globe Stop Valve Application :
Compressed Air, Nitrogen
Description

Globe Stop Valve with Double - Acting Penumatic Actuator in Flange , PN 16 bar

PRODUCT INTRODUCTION

Description of Globe Stop Valve

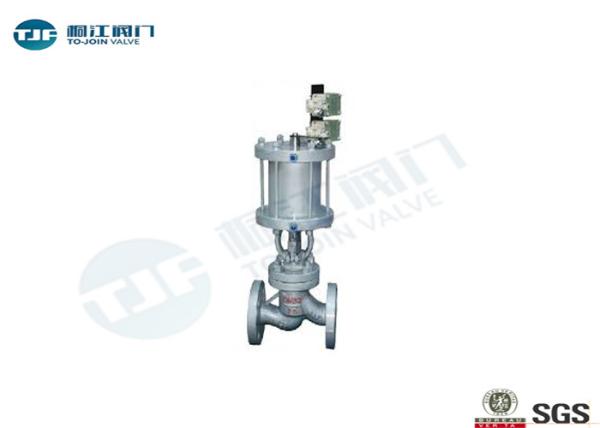

J641H Pneumatic flange globe stop valve adopts double-acting cylinder, using upper or lower cavity air intake to control the valve remotely, easy to operate and flexible. Cylinder medium: compressed air, nitrogen. The utility model has the advantages of simple structure, convenient manufacture and maintenance, small working stroke and short opening and closing time, and the sealing surface of the closing body (disc) and the valve seat adopts conical sealing, which has the advantages of small closing force, erosion resistance and reliable sealing. The valve seat can be replaceable, and can be combined with the sealing material of the closing part at will to meet the working conditions and extend the service life.

Globe Valve Design Specification

Design and Manufacture
GB/T12235
Flange Connection
Face to Face
GB/T12221
Flange Size
JB/T79
Inspection and Test
JB/T9092
Material
Carbon Steel
GB/T12229
Stainless Steel
GB/T12230
Alloy Steel
Q/ZB66
Marking
GB/T12220
Supply
JB/T7928

Globe Stop Valve Drawing and Datasheet

Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar

Main dimensions of J641H pneumatic flanged globe valves


PN(MPa)

DN(mm)
L
D
D1
n2
D6
b
f
f1
Z-φd
L1
H
1．6
50
230
160
125
100
16
3
4-φ18
185
645
65
290
180
145
120
18
3
4-φ18
232
690
80
310
195
160
135
20
3
8-φ18
232
715
100
350
215
180
155
20
3
8-φ18
232
770
125
400
254
210
185
22
3
8-φ18
283
780
150
480
280
240
210
24
3
8-φ23
283
810
200
600
335
295
265
26
3
12-φ23
283
967
250
622
405
355
320
30
3
12-φ25
283
1143
300
698
460
410
375
30
4
12-φ25
283
1292
2.5
50
230
160
125
100
20
3
4-φ18
185
645
65
290
180
145
120
22
3
8-φ18
232
690
80
310
195
160
135
22
3
8-φ18
232
715
100
350
230
190
160
24
3
8-φ23
232
770
125
400
270
220
188
28
3
8-φ25
283
780
150
480
300
250
218
30
3
8-φ25
283
810
200
600
360
310
278
34
3
12-φ25
283
967
250
622
425
370
332
36
3
12-φ30
283
1143
300
698
485
430
390
40
4
16-φ30
283
1292
4．0
50
230
160
125
100
88
20
3
4
4-φ18
185
645
65
290
180
145
120
110
22
3
4
8-φ18
232
690
80
310
195
160
135
121
22
3
4
8-φ18
232
715
100
350
230
190
160
150
24
3
4．5
8-φ23
232
770
125
400
270
220
188
176
28
3
4．5
8-φ25
283
782
150
480
300
250
218
204
30
3
4．5
8-φ25
283
875
200
600
375
320
282
