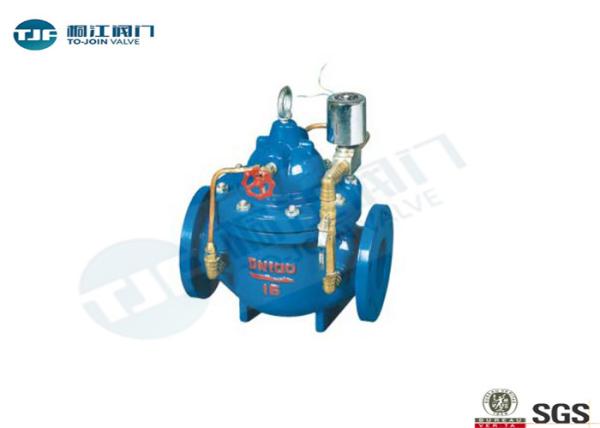

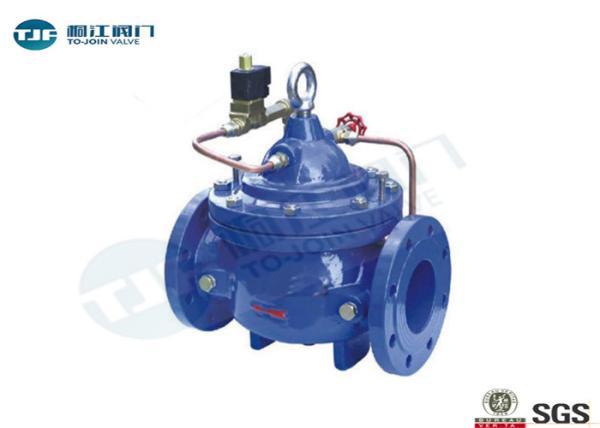

Hydraulic Eletric Water Control Valve , Cast Steel, PN 25 Bar, Flange Ends, 600X

PRODUCT INTRODUCTION

1. Description

The 600X motorized valves is a kind of waterpower operated valves that utilizes a solenoid valves as its pilot valves. It is normally used in automatic control for water supply and drain systems and other industrial systems.It is precise and quick in its response in the process of control and utilizes remote operations through turning on/off the management system via remote control signals. It can also replace gate valves and butterfly valves for application in large-sized electrically operated systems because the shut-off speed of the valves is adjustable and smooth shutoff can be realized without causing any pressure variation. This valves is small in volume and weight, simple to maintain and repair, easy to use, safe and reliable. Both 220VAC and 24VDC can be used for the solenoid valves and you can choose to use the constantly open or constantly closed valves according to you actual needs during a specific situation.

Pressure Rating: PN10. PN16. PN25/Class150

Size Range: DN20mm-DN800mm (3/4" - 32")

Test and inspection: GB/T 13927 API598

2. Application

The valves is controlled by solenoid valves and can implement remote open & close operation to substitute electrical driven gate valves or butterfly valve.

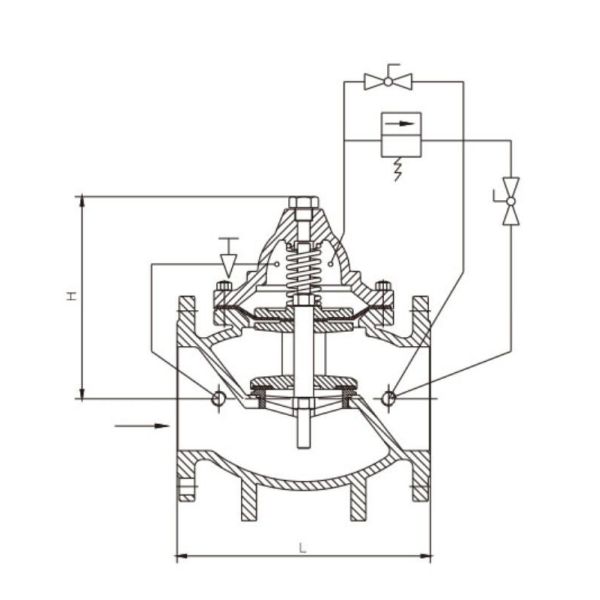

3. Hydraulic Control Valve Outsize Drawing

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
