Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts
Specifications
Brand Name :
TongJiang
Model Number :
Hydraulic Control Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Hydraulic Control Valve Body Material :
Ductile Iron GGG50
Hydraulic Control Valve Size :
DN 50- DN 600
Hydraulic Control Valve Connection :
UNI EN 1092-2 Flanged
Hydraulic Control Valve Medium :
Potable drinking water
Hydraulic Control Valve Pressure Class :
PN 10, PN 16, PN 25
Hydraulic Control Valve Temperature :
up to 120° C
Description

Hydraulic Water Pressure Reduce Valve , Ductile Iron GGG50 , PN 16 , Flange

PRODUCT INTRODUCTION

1. Description

The pressure-reducing valves reduces and stabilizes the outlet pressure, regardless of any water demand or any variation of inlet pressure. These pressure-reducing valves work with the self energy of the medium, to adjust the pipeline pressure through the pilot valve. Pressure-reducing valve with high accuracy of level control, debug service, easy to install and to maintain.

2. Features and Advantage

Flanges drilling: UNI EN 1092-2 PN 10, PN 16, PN 25
Installation: horizontal
FIELDS OF APPLICATION: civil and industrial plants aqueducts
Epoxy painting suitable for potable drinking water applications

3. Specification

Materials

Body - bonnet Ductile iron GGG50, EN-GJS-500-15
Stem Stainless steel AISI 410
Seat Stainless steel CF8M
O ring - diaphragm EPDM
Spring Stainless steel AISI304
Ball valve Brass
Painting Epoxy 250 mcr

Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts

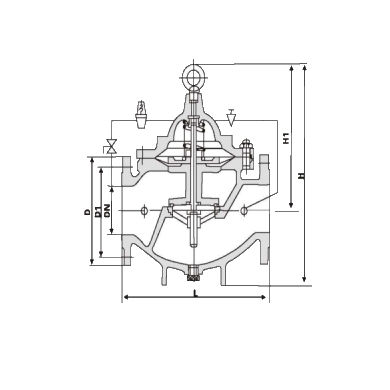

4. Hydraulic Control Valve Outsize Drawing


Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts

DN L mm PN 16 H mm H1 mm
D mm D1 mm
50 203 160 125 395 278
65 235 180 145 405 298
80 285 195 160 430 313
100 360 215 180 510 350
125 400 245 210 560 365
150 455 280 240 585 420
200 585 335 295 675 450
250 650 405 355 730 470
300 800 460 410 760 490
350 860 520 470 840 526
400 915 580 525 910 570
450 980 640 585 1030 610
500 1075 705 650 1135 665
600 1230 840 770 1270

725


If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

5. Hydraulic Control Valve Packing with Plywood

Hydraulic Pressure Reducing Valve Ductile Iron GGG50 Type For Industrial Plants Aqueducts

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
