20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made
Specifications
Brand Name :
TongJiang
Model Number :
Screen for Y Strainer Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Filter Screen Body Material :
Stainless steel 304 body
Filter Screen Design :
DIN 3230, BS 5154 and ISO 5208
Filter Screen Size :
DN15-DN400
Filter Screen Medim :
For all types of fluids.
Filter Screen Pressure Class :
PN 16 bar
Filter Screen Temperature :
max + 140°C
Description

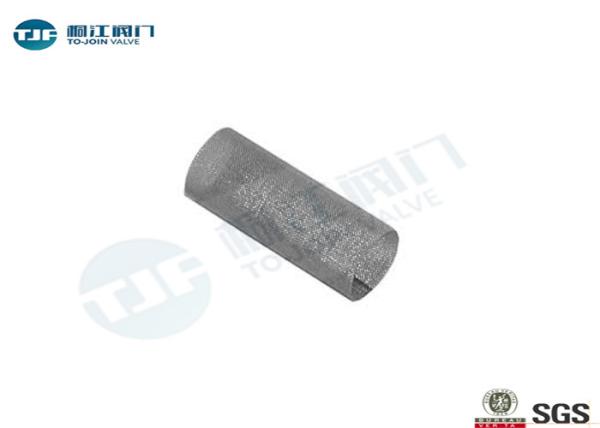

Filter Screen for Y Strainer Valve in Stainless Steel 304 / 316 of 20 Mesh

Y Strainer Product Introduction

1. Description

Screen filters can be used to filter out debris and larger particulate matter, and are available at different fineness for a wide range of flow rates. These filters are typically fitted into the pipe supplying water, and water passes through one or two cylindrical screens, leaving filtered particles deposited on the outside. Self-cleaning models are available, which may use brushes to wipe the screen or backflushing (sending water in reverse direction through the filter) to displace debris . Otherwise, cleaning can be performed by manually removing and rinsing the filter with water, although a manual filter may not be practical if the water source is not very clean .

GENERAL CHARACTERISTICS

Stainless steel screen. Rolled, welded construction.

CONSTRUCTION

Stainless steel 304 body

WORKING CONDITIONS

Maximum working pressure: 16 bar (TS max + 140°C)

Test pressure according to EN 12266-1, DIN 3230, BS 5154 and ISO 5208

STANDARDS

For use only with flanged type PN16 strainer

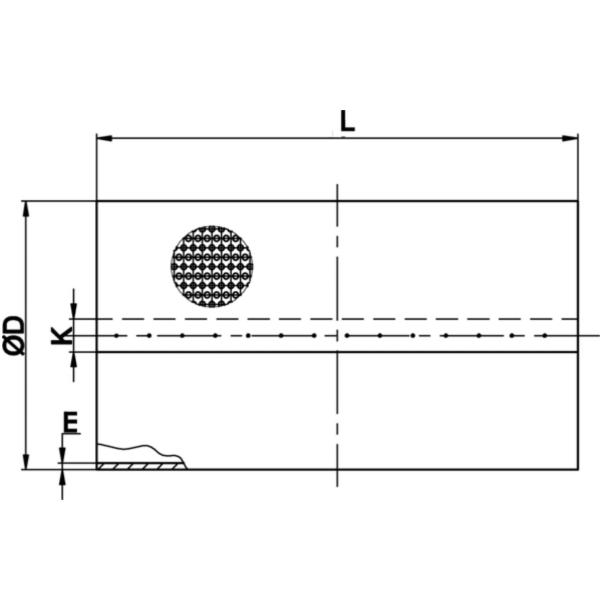

2. Filter Screen Outsize Drawing

20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made

Main Dimensions

DN

L

Ø D

K

E

Bore diameters

 Weight (kg)
mm inch
15 1/2” 69 17

10

0,6

1

 0.02
20 3/4” 77.5 23 0.03
25 1 97 27 0.045
32 1”1/4 116.5 35 0.075
40 1”1/2 91.2 42 0.1
50 2" 105.2 52 0.13
65 2"1/2 127.2 67

1.3

 0.18
80 3" 140.7 82 0.25
100 4" 180.2 102 0.34
125 5" 215.7 127 0.48
150 6" 234.2 152 0.63
200 8" 296.5 202

15

0.8

1.6

 1.1
250 10" 393.5 252 1.76
300 12" 426 302 2.5
350 14" 612 362 30 1,2 3.9
400 16" 689 410 40 5

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

3. Y Strainer Valve Packing with Plywood

20 Mesh Y Strainer Replacement Screens Stainless Steel 304 316 Material Made

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
