Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
GS-C25 1.7363、1.4308、1.4408、1.4306、1.4301
Globe Stop Valve Connection :
DIN2543-2545, Flange
Globe Stop Valve Pressure :
PN1.6-16MPa
Globe Stop Valve Temperature :
-29-350 ℃
Globe Stop Valve Actuator :
Manual, Electric ,Penumatic
Globe Stop Valve Face to Face :
DIN 3356
Globe Stop Valve Size :
DN15-DN350
Globe Stop Valve Application :
Petroleum, Chemical, Pharmaceutical
Description

Bellows Globe Stop Valve in Right Angle DIN3356, PN 1.6 Mpa, WCB

PRODUCT INTRODUCTION

Description

DIN 3356 right-angle bellows globe valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, chemical fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-350 C.

Structural characteristics of DIN 3356 right angle BELLOWS GLOBE VALVE

1. The product is reasonable in structure, reliable in sealing, excellent in performance and beautiful in appearance.

2. sealing surface hardfacing Co based cemented carbide, wear resistance, corrosion resistance, good friction resistance, long service life.

3. The quenching and tempering of the valve stem and surface nitriding have good corrosion resistance and friction resistance.

4. double seal, more reliable performance.

5. The position of the stem is more direct.

6. Material of parts, flange and butt weld numbering dimensions can be reasonably selected according to actual working conditions or user requirements to meet various engineering needs.

Specification for DIN 3356 Right Angle BELLOWS GLOBE VALVES

Structure
BB-BG-OS & Y
Operation
Manual
Electirc Actuator
Design and manufacture
DIN3356
Face to Face
DIN3202
Flange Connection
DIN2543-2545
Test and Inspection
DIN3230

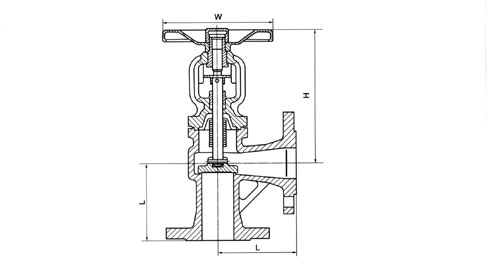

Globe Stop Valve Drawing and Datasheet

Right Angle Bellow Globe Valve DIN3356 PN 1.6 Mpa For Pharmaceutical Industry

Main dimensions of German standard right angle BELLOWS GLOBE VALVES
Type
WJ44H-16
Pressure
PN16
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
L
130
150
160
180
200
230
290
310
350
400
480
600
730
850
980
H
166
166
172
175
193
195
213
227
294
325
355
440
580
620
785
W
120
140
140
180
200
220
260
280
300
340
400
450
450
500
500
WT(kg)
4
5
6
10
13
18
25
30
40
50
100
180
300
450
670
