Cast Iron Globe Valve with Manual Operation Flanged Connection

PRODUCT INTRODUCTION

1. Globe Valve Application

The globe valve is used for throttling flow control. Shut off is accomplished by moving the disc against the flow stream rather than across it as in the case with a gate valve.

The globe valve must be installed in the proper relation to the media flow as indicated by the flow direction arrow marked on the valve body. This valve is considered uni-directional and must be installed with the pressure side or inlet under the seat.

2. Globe Valve Design Highlights

• Bolted Bonnet – Confined Bonnet Gasket

• Outside Screw & Yoke (OS & Y)

• Full Port

• Metal / Renewable Disc Available

• Special Trims available

• Teflon (Braided or Chevron), Flexible Graphite or other packings and gasket combinations available

• Flanged, Butt Weld, Threaded and Socket Weld available

• API 623 available

• Valve design per ASME B16.34

3. Globe Valve Components

4. Valve Design and Manufacturing Standards

All valves are manufactured in accordance with the latest industry standards listed below as applicable:

ASME B16.34 Valves, Flanged, Threaded and Welding End

API 623 Steel Globe Valves - Flanged and Butt Welding Ends, Bolted Bonnet

ASME B16.10 Face-to-Face and End-to-End Dimensions of Valves

ASME B16.11 Forged Fittings, Socket Welding and Threaded

ASME B16.25 Butt Welding Ends

ASME B16.5 Pipe Flanges and Flanged Fittings

API 598 Valve Inspection and Testing

MSS SP-25 Standard Marking System for Valves, Fittings, Flanges and Unions

MSS SP-42 Corrosion Resistant Gate, Globe, Angle and Check Valves

MSS SP-61 Pressure Testing of Valves

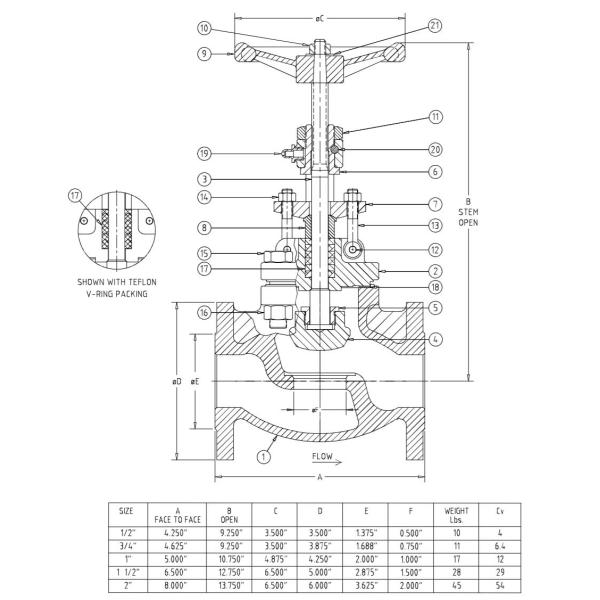

5. Valve Outline Size Drawing

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
