Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling
Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
Stainless 304, Stainless 316, Stainless 316L
Globe Stop Valve Connection :
JB/G79-94, Flange
Globe Stop Valve Pressure :
PN 10 bar-PN 32 Bar
Globe Stop Valve Temperature :
≤450℃
Globe Stop Valve Actuator :
Manual, Electric Device
Globe Stop Valve Face to Face :
GB12235-89
Globe Stop Valve Size :
DN10-DN400 mm
Globe Stop Valve Application :
Cut-off or Adjustment and Throttling use
Description

Globe Stop Valve in SUS304, Stainless 316 , Flange Conenction, J41W

PRODUCT INTRODUCTION

Description

The stem axis of the J41W stainless steel flange valve is perpendicular to the sealing surface of the valve seat. Stem opening or closing stroke is relatively short, and has a very reliable cut-off action, making this valve is very suitable for medium cut-off or adjustment and throttling use.

Global Stop Valve Structural Features

(1) The structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.

(2) Sealing surface is not easy to wear and scratch, good sealing, no relative sliding between disc and valve body sealing surface when opening and closing, so wear and scratch are not serious, sealing performance is good, long service life.

(3) When the valve is opened and closed, the valve stroke is small, so the height of the cut-off valve is smaller than that of the gate valve, but the length of the valve is longer than that of the gate valve.

(4) The opening and closing moment is large, the opening and closing is more laborious, and the opening and closing time is the headmaster.

(5) Fluid resistance is large, because the medium channel of the valve body is tortuous, the fluid resistance is large, and the power consumption is large.

(6) When the nominal pressure PN is less than 16 MPa, the medium flows downstream from the bottom of the valve disc; when the nominal pressure PN is more than 20 MPa, the medium flows downstream from the top of the valve disc to increase the seal energy. When used, the medium of the shut-off valve can only flow in one direction, and the flow direction can not be changed.

(7) The disc is always eroded at full opening.

Specification for performance of Stop Globe Valves

Design and manufacture: E101, JB/T3595-93

Pressure temperature: E101, JB/T3595

Structure length: E101

Butt welding joint size: GB/T15198.3-95

Inspection and experiment: GB/T13927-92

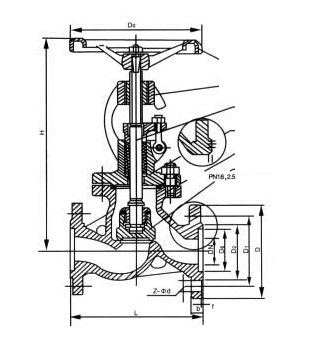

Globe Stop Valve Drawing and Datasheet

Stainless 304 316 Globe Stop Valve J41W For Medium Cut - Off / Throttling

Main dimensions of Globe Stop Valve
DN
15
20
25
32
40
50
65
80
100
125
150
200
250
300
350
400
L
mm
130
150
160
180
200
230
290
310
350
400
480
600
650
750
850
950
H
mm
200
243
253
280
312
321
325
355
415
460
510
700
975
1115
1250
1380
W
mm
120
140
160
160
200
200
240
240
280
320
360
560
600
700
800
900
WT
kg
5
6.5
7
13.5
16
32
45
60
80
107
134
268
449
663
750
1170
