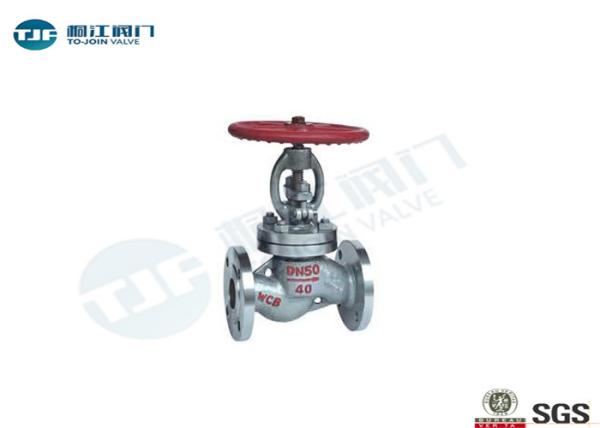

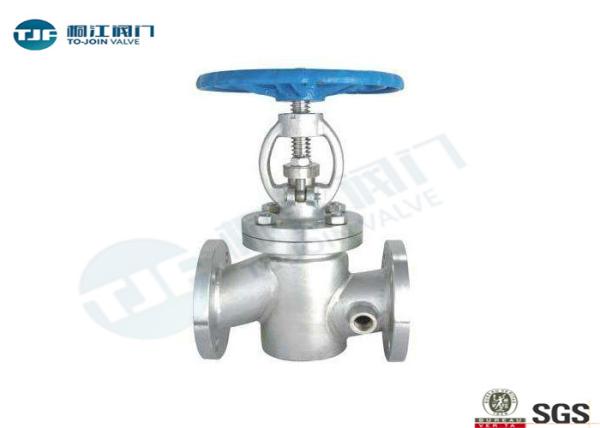

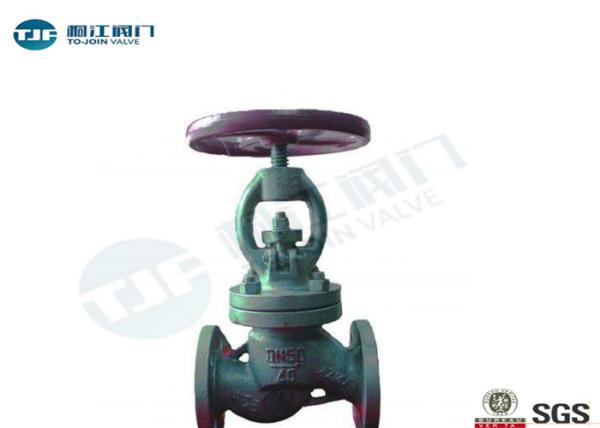

J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K
Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
Carbon Steel , Forged Steel, Stainless Steel
Globe Stop Valve Connection :
Flange Type
Globe Stop Valve Pressure :
2.5MPa, 4.0MPa,JIS 10K, JIS 20K
Globe Stop Valve Temperature :
-40∽+80℃
Globe Stop Valve Actuator :
Manual, Handwheel
Globe Stop Valve Face to Face :
JB/T 79-94
Globe Stop Valve Size :
DN15-DN200
Globe Stop Valve Application :
High and Medium Pressure Gas Transmission Pipeline
Description

Globe Stop Valve in Liquefied Petroleum Gas of Cast Steel, JIS 10K ,J41N

PRODUCT INTRODUCTION

Description

J41N LPG/CNG globe valve uses elastically formed polytetrafluoroethylene as filler. The sealing performance of filler increases with the increase of medium pressure and has inverted sealing function. J41N LPG globe valve is suitable for high and medium pressure gas transmission pipeline.

Specification:

J41N-25/40 globe valve

Path : DN 15 -200 (mm)

Pressure: (PN) 2.5 * 4.0MPa

Materials: Forged Steel and Carbon Steel.

Japanese JIS-10K and 20K check valves

Main parts of LPG stop valves

Valve Body
Valve stem and Valve Disc
Seal Face
Packing
Carbon Steel , Stainless Steel
Stainless Steel
Stainless Steel and 101
PTFE
Nylon

Globe Stop Valve Drawing and Datasheet

J41N Flange Cast Steel Globe Valve For Liquefied Petroleum Gas JIS 10K

Main dimensions of Globe Stop Valve
PN
DN
L
H
D
D1
D2
b
f
Z-φd
D0
2.5MPa
4.0MPa
10K
20K
15
130
207
95
65
45
16
2
4-14
120
20
150
217
105
75
55
16
2
4-14
140
25
160
219
115
85
65
16
2
4-14
160
32
190
280
135
100
78
18
2
4-18
180
40
200
330
145
110
85
18
3
4-18
200
50
230
350
160
125
100
20
3
4-18
240
65
290
400
180
145
120
22
3
8-18
280
80
310
430
195
160
135
22
3
8-18
320
100
350
465
230
190
160
24
3
8-23
360
125
400
502
270
220
188
28
3
8-25
400
150
480
560
300
250
218
30
3
8-25
440
200
600
580
360
310
278
34
4
12-25
480
