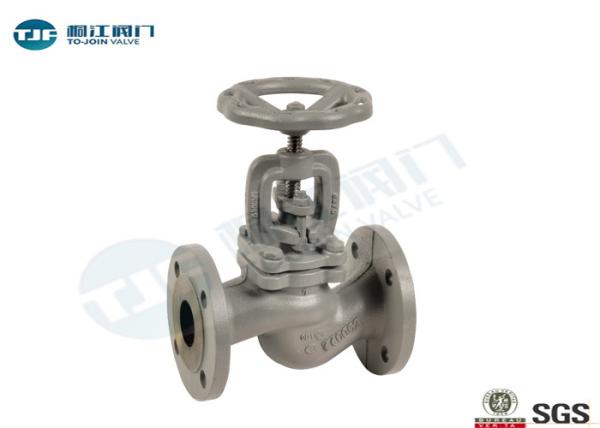

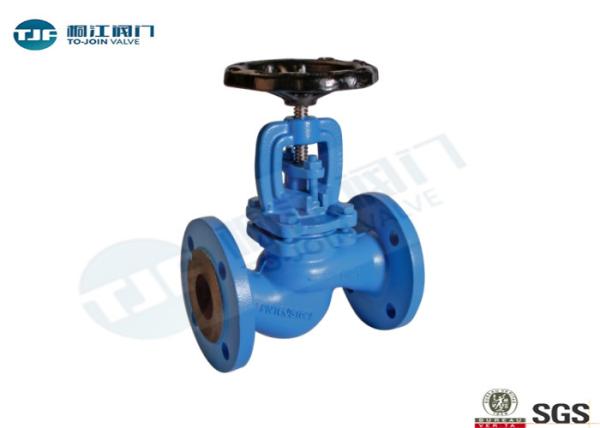

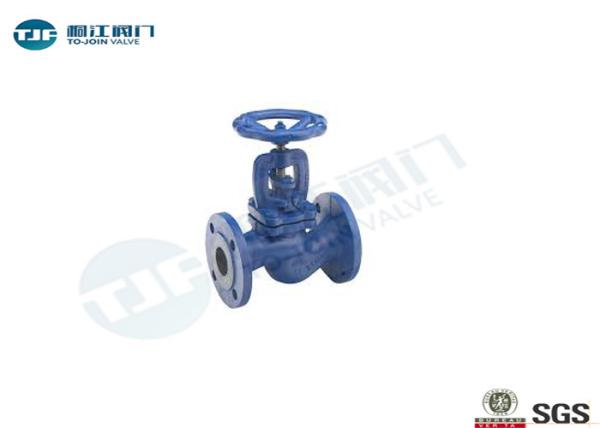

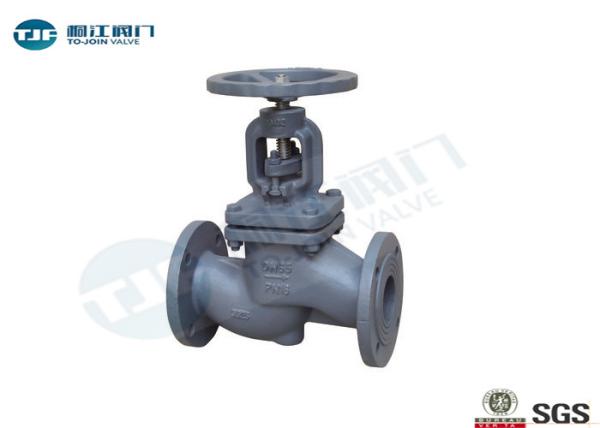

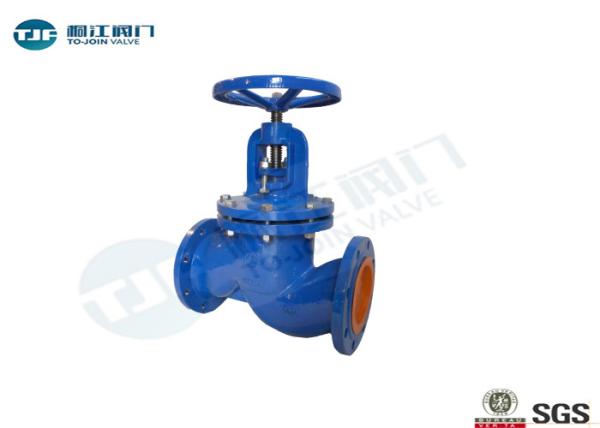

Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc
Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
Cast Iron GG25, Cast Steel
Globe Stop Valve Connection :
UNI EN 1092-2 PN 16
Globe Stop Valve Pressure :
PN 16 Bar
Globe Stop Valve Temperature :
≤120 ℃
Globe Stop Valve Actuator :
Manual, Electric, Penumatic
Globe Stop Valve Face to Face :
EN 1074
Globe Stop Valve Size :
DN15-DN300
Globe Stop Valve Application :
Oil & refineries ,Water ,Steam ,Industry
Description

Globe Stop Valves, Cast Iron GG25 with Balanced Disc in Flanged PN 16

PRODUCT INTRODUCTION

Description

Cast iron globe valves are traditionally selected for on-off purpose. For diameters higher than DN 150, the globe valve is equipped with balanced disc, to facilitate the opening; in this case the valve has to be mounted in the opposite direction, with pressure over the shutter. Handwheel operated. Graphite rings are easily replaceable for maintenance. These globe valves can be applied for water, steam, not aggressive fluids, temperature and working pressure according to DIN 2401 part 2.

Specification

Flanges: UNI EN 1092-2 PN 16
Design: EN 1074
Face to face length: EN 558-1 serie 1
Installation: horizontal / vertical, with the flow following the direction of the arrow. When working pressure exceeds below indicated limits, valves must be installed in opposite direction, with pressure over the shutter, and balance disc type compulsory.

APPLICATIONS • Oil & refineries • Water • Steam • Industry

Globe Stop Valve Drawing and Datasheet

Cast Iron GG25 Globe Stop Valves Flange Type PN 16 With Balanced Disc

Main dimensions of Globe Stop Valve
DN L mm. H mm. D mm. Weight kg.
15 130 188 95 4
20 150 188 105 4
25 160 196 115 5
32 180 207 140 8
40 200 254 150 10
50 230 266 165 13
65 290 300 185 17.5
80 310 336 200 30
100 350 377 220 41
125 400 430 250 61
150 480 474 285 87
200 600 607 340 157
250 730 670 405 204.5
300 850 750 460 220
