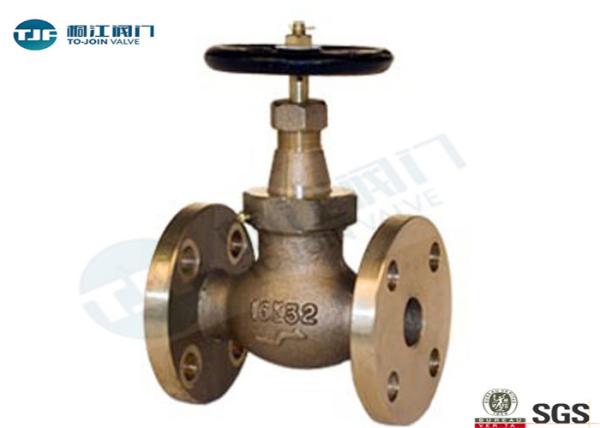

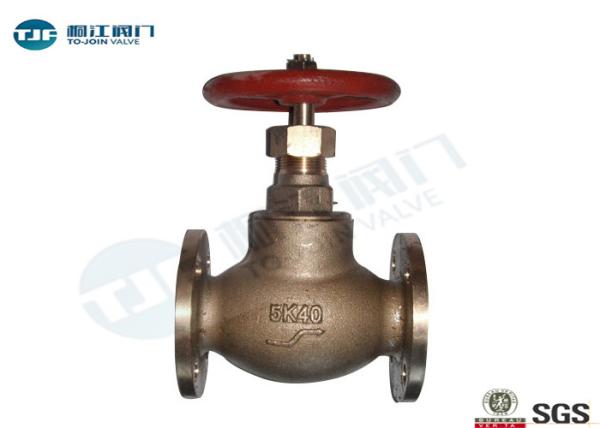

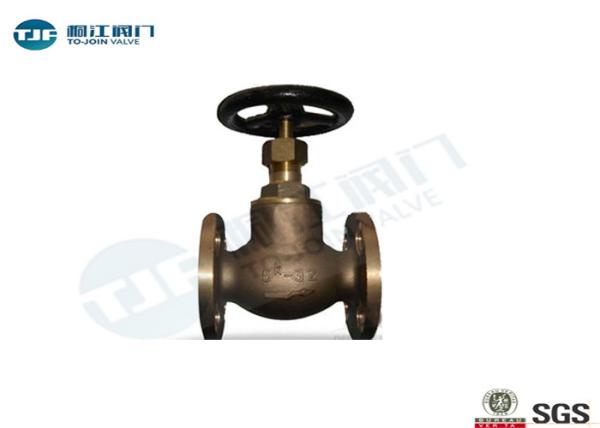

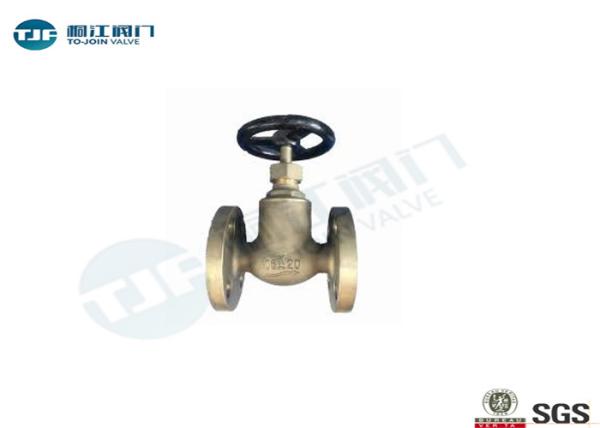

Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K
Specifications
Brand Name :
TongJiang
Model Number :
Globe Stop Valve
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
5 Piece
Price :
USD 300-5000 per piece
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-14 days
Packaging Details :
Wooden cases
Globe Stop Valve Material :
Bronze
Globe Stop Valve Connection :
Flange as per JIS B2220 - 5K or 16K
Globe Stop Valve Pressure :
JIS 5K or 16K
Globe Stop Valve Temperature :
5 Bar @ 205°C
Globe Stop Valve Actuator :
Handwheel,Manual
Globe Stop Valve Face to Face :
JIS F7400
Globe Stop Valve Size :
JIS B2220 - 5K
Globe Stop Valve Application :
Seawater, Steam
Description

Globe Stop Valve in Marine Bronze 5K in JIS F7301 for Seawater with Flange

PRODUCT INTRODUCTION

Description of Globe Stop Valve

Globe valve has a bulb like body with a valve seat, which can have a screw-down plug or a disc acting as valve. The surfaces of valve and valve seat are made up a hard alloy of cobalt and chromium with cobalt as the principal ingredient. The seat is secured into the valve chest with a help of light interference fit and grub screw. A spindle or stem with square or vee threads above and below the stuffing box is used. The spindle is held in the valve disc by a nut. Stuffing box is fixed with an appropriate gland around the spindle in order to prevent leakage.

Bronze metal seated gland packed globe valve to JIS Japanese specifications. Suitable for cold and hot water, seawater, saturated steam, oil and other neutral non aggressive liquids.

Marine Globe Valve Design Features

• JIS 5K specifications

• Class society survey can be arranged

• 3.1 & 3.2 certificates available on request

• Screw lift • 15-40mm Secured screwed bonnet

• 50-65mm Bolted bonnet

• Gland sealed

• Bronze / brass disc

• Rising stem

Pressure & Temperature

Non-shock water: 7 Bar @ 120oC

Air, Gas, Steam, Pulsating Water: 5 Bar @ 205oC

Specification

MATERIALS
Body Bronze
Bonnet Bronze / Brass
Stem Brass
Disc Bronze / Brass

Globe Stop Valve Drawing and Datasheet

Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K

Screwed Bonnet for sizes 15A - 40A
No. Component Material
1 Body Bronze
3 Disc Bronze
4 Stem Brass
Bronze Globe Stop Valve Flange Type For Seawater / Oil JIS F7301 5K

Bolted Bonnet for sizes 50A - 65A
Nominal Pressure 5K 16K
Hydraulic Inspection Body 10.5kg 33kg
Seat 7.7kg 24.2kg
Type Size L D C No. h t H D2 Kg
F7301 5K 15A 100 80 60 4 12 9 130 80 2.02
20A 110 85 65 4 12 10 140 100 2.86
25A 120 95 75 4 12 10 160 125 3.54
32A 140 115 90 4 15 12 170 125 5.00
40A 160 120 95 4 15 12 190 140 6.48
50A 210 130 105 4 15 14 235 140 11.70
65A 250 155 130 4 15 14 260 160 17.00
F7303 10K 15A 110 95 70 4 15 12 130 80 2.76
20A 120 100 75 4 15 14 140 100 3.72
25A 130 125 90 4 19 14 160 125 5.20
32A 160 135 100 4 19 16 170 125 6.91
40A 180 140 105 4 19 16 190 140 8.43
