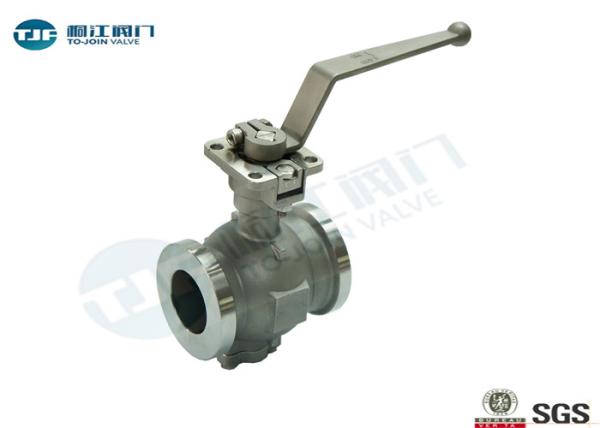

V Port Industrial Ball Valve in Segmented Reduced Bore, Alloy Steel

PRODUCT INTRODUCTION

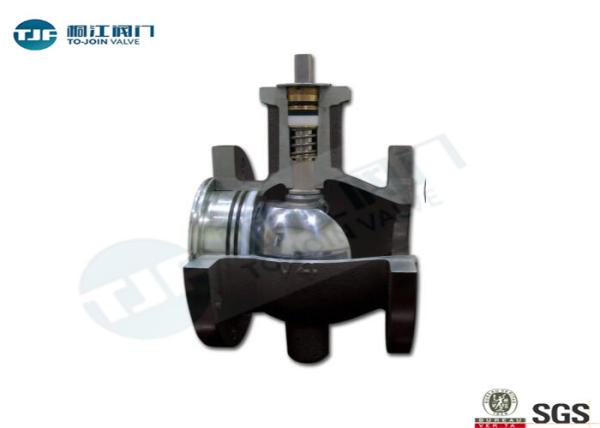

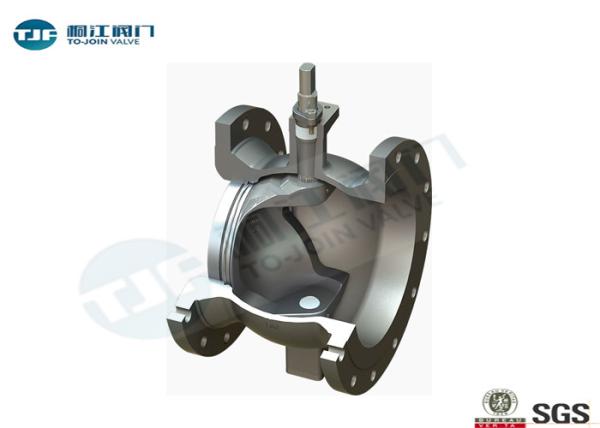

1. V Port & Segmented Ball Valve Introduction

TonJiang V-notch Segment Ball Valve is a control valve designed to handle most fluids. V port ball valve can be used for most pulp and paper process applicaƟons as well as other applications involving fibers, particles, dirty or even corrosive media.

2. Technical Features

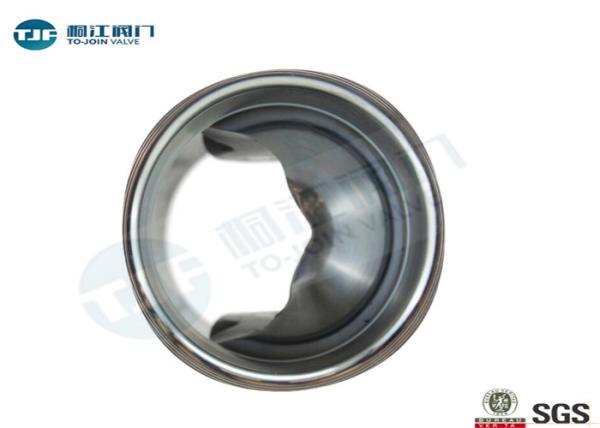

V-notch provides equal percentage flow control

Uni-body prevents external leakage

Durable metal seat

Soft seat TFM1600 where metal seat is unsuitable Live loaded packing

Protected peek bearing ISO 5211

Direct-Mounting for easy automation

Extremely low actuator torque

3. Technical Specifications

Reduced bore quarter-turn valve

ANSI Class 600 pressure raƟng

Size: 1-1/2” ~ 4” (DN32 ~ DN100) Stainless Steel, Carbon Steel, Alloy materials available

-4°F ~ 536°F (-20°C ~ 280°C) for metal Seat

-4°F ~ 392°F (-20°C ~ 200°C) for soft Seat Face to Face acc. to ISA-S75.04 Short version

Inspection acc. to API 598 or EN12266-1 where applicable

Tightness test acc. to ANSI/FCI 70.2 Class IV for metal seat

4. V Port & Segmented Ball Valve Drawing and Datasheet

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
