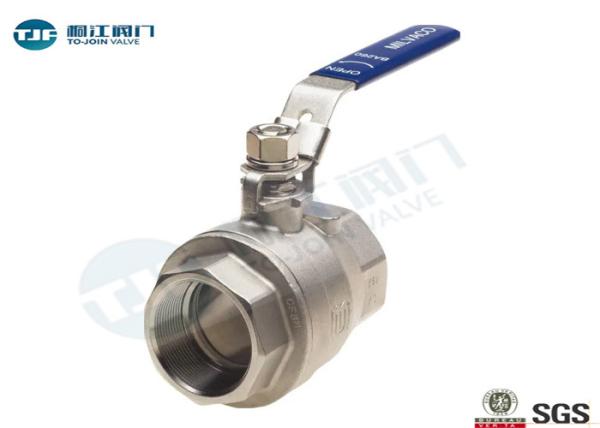

Standard 2-Piece Full Port Ball Valve ASTM A216 with NPTConnection

PRODUCT INTRODUCTION

1. Ball Valve introduction

Standard 2-piece ball valves offers rugged, dependable, and economical flow control for hydraulic, chemical, steam, and oil/ gas uses. To achieve such diverse requirements,TongJiang provided several features to meet customer’s need: valve body design, stem, and sealing. For standard 2-piece ball valves, full port and standard port are available.

The standard blowout-proof stem design gives a safer valve use environment when undergo unexpected events. Instead of insert the stem from the top, it is inserted from inside of the bore to prevent stem shooting out during accidents. Also, the double-D shape stem design provides the easiness of lever mounting. The self-adjusting stem and packing assembly automatically adjusts with valve changes caused by thermal effects.

TongJiang provides solutions for valve sealing. All of our standard 2-piece ball valves are equipped with thrust washer and gland nuts to achieve almost no-leak quality. The thrust washer not only prevents galling between stem and body, it can be considered as a secondary stem seal and reduces torque. In addition, the gland nuts are sealed tightly to act as an additional third guard to stop leakage. Standard 2-piece ball valves are accompanied with a wide range of seat materials to choose, as well as investment valve body cast with retraceable furnace number for future references

2. Specification

Blowout-Proof Design The stem is installed from the bottom-entry direction instead of top-bottom. This prevents stem to shoot out during unexpected accident, and further provides a safer valve using environment.

Pressure Rating

Full Port: 1000 psi (PN64) WOG for DN8 - DN50

600 psi (PN40) WOG for DN65 - DN80

150 psi (10 bar) with saturated steam

Standard Port: 2000 psi WOG for 1/4’’ ~ 1’’

1500 psi WOG for 1-1/4’’ ~ 2’’

150 psi with saturated steam

Temperature Range: -20°F to 400°F (-28°C to 204°C) with PTFE/RPTFE

End Connection: Female pipe thread that meets NPT, DIN 259/2999, and BS21 regulations. For butt-welding, socket-welding, and other end connection options, please contact with our sales representatives.

Body Material: ASTM CF8M, CF8, WCB (DIN 1.4408. 1.4308, 1.0619)

Size Range: Full Port: 1/4’’ ~ 3’’ (DN8 ~ DN80) Standard Port: 1/4’’ ~ 2’’ (DN8 ~ DN50)

Standards and Specifications

Female Thread end-to-end length meets NPT, DIN 259/2999, and BS21 regulations Valve body and end cap connections are high quality investment cast. Stainless steel can be special processed with anneal, and carbon steel can be normalized, both are upon request. Other valve components, such as valve body, end cap, and stem, are produced to follow the ASME and other international regulations. All the valves are factory tested to meet API and MSS standards to ensure the quality of the valves.

3. Features

Investment cast body construction
Bottom Entry Blow-Out Proof Stem design Provides Maximum Safety
Double D Stem Head Design Provides Mounting Of The Lever
Fully traceable materials
Option: oval handle, lock device handle
Service Application : Hydraulic,Chemical,Steam,Oil/Gas,Oxygen,Vacuum

4. Safety/Quality Approvals

ISO 9001; PED 2014/68/EU

5. Ball Valve Drawing and Datasheet

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
