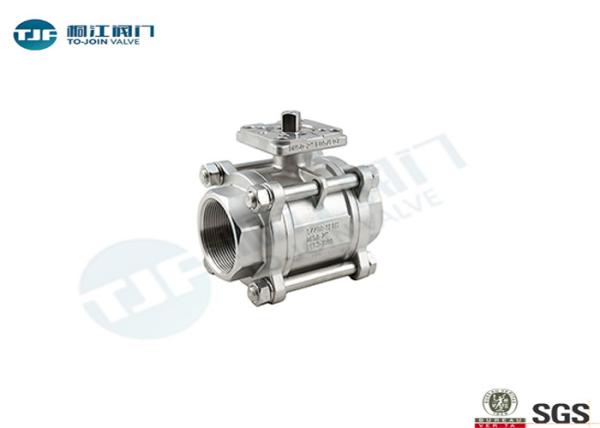

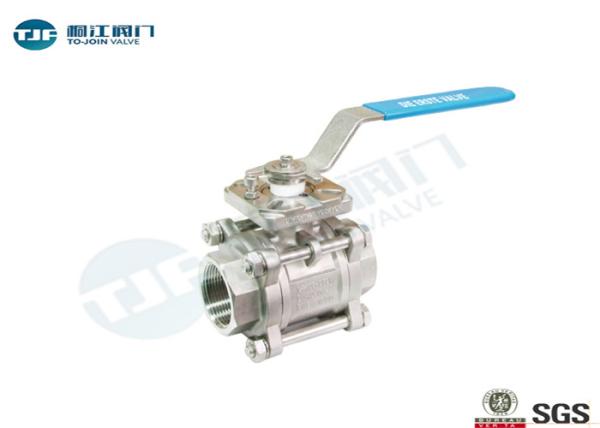

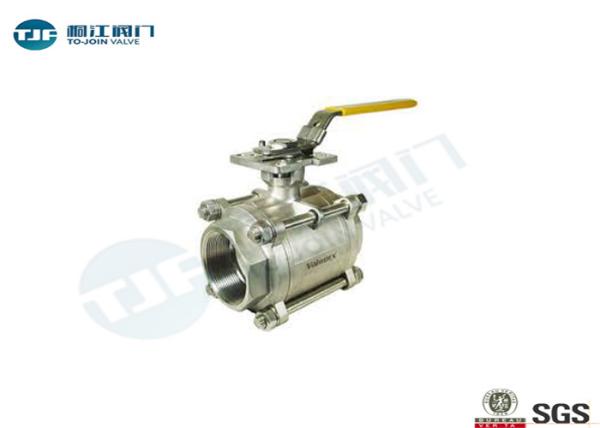

Direct Mount 3-Piece Full Port Industrial Ball Valve Satinless 304 with Threaded

PRODUCT INTRODUCTION

1. Ball Valve introduction

Industrial Ball valves feature direct mount Series 35 ball valves feature direct mount for actuators with dual sets of ISO 5211 mounting patterns .

In combination with high life-cycle, and live-loaded stem packing system, Series 35 ball valve provides an ideal choice for all your automation requirements.

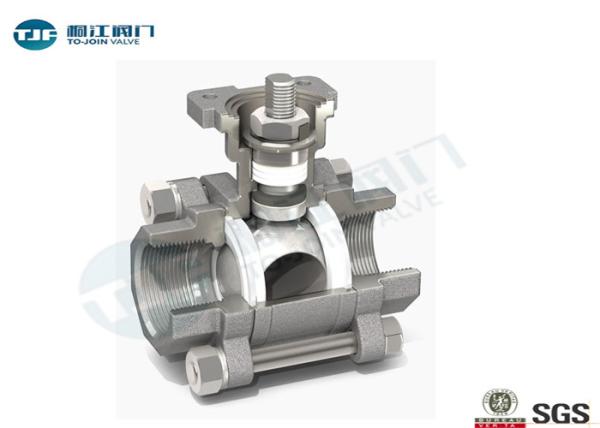

The 3-piece Swing-In-Place construction with a swing out center section allows for ease of in-line and out-of-line maintenance and installation.

Various interchangeable end connections and a wide range of seat materials are available to meet most applications. All of the Series 35 ball valves are equipped with standard blowoutproof design.

This design is specified in which the stem is locked in the original position to prevent shoot out, even in the event of excess pressure in the pipeline system. In addition, all of the valve balls in the Series 35 are fixed at one side; the top face is interlocked with the stem, but the bottom face is free to move. This result produces a floating ball effect. With the downstream fluid flowing one direction, the ball forms an even tighter seal with the valve seat ring. This also provides a lower torque, and the ease of valve lever operation, as well as longer product life span.

2. Specification

Size Range:1/4"- 4" (DN8~DN100)
Valve Material:Stainless Steel
End Connections:Threaded, Butt-Weld, Socket-Weld
Seat Material:Teflon
Port Size:Full Port
Ball and Stem Material:Stainless Steel

3. Features

(1) Direct mounting of actuators to valves
(2) Three-piece swing-out in-line maintenance design.
(3) High cycle self-adjusting stem seal offers significantly extra longer cycle life
(4) Self-adjusting stem packing assembly with Belleville spring for temperature fluctuations, vibration and is secured by a saddle type lock washer
(5) Fully traceable materials
(6) Square stem can be with direct mount without bracket /adaptor.
(7) Bottom entry blow-out proof stem provides maximum safety
(8) Service Application : Hydraulic,Chemical,Steam,Oil/Gas,Oxygen,Vacuum

4. Safety/Quality Approvals

ISO 9001; PED 2014/68/EU

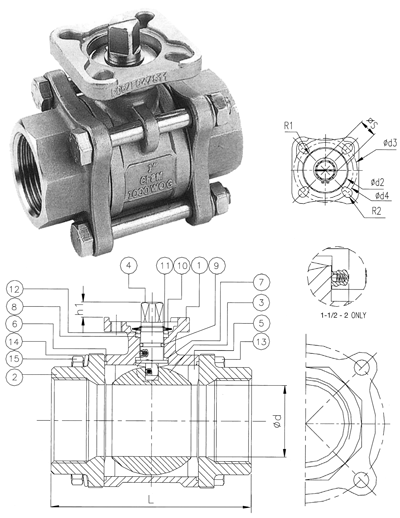

5. Three-Pieces Ball Valve Drawing and Datasheet

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
