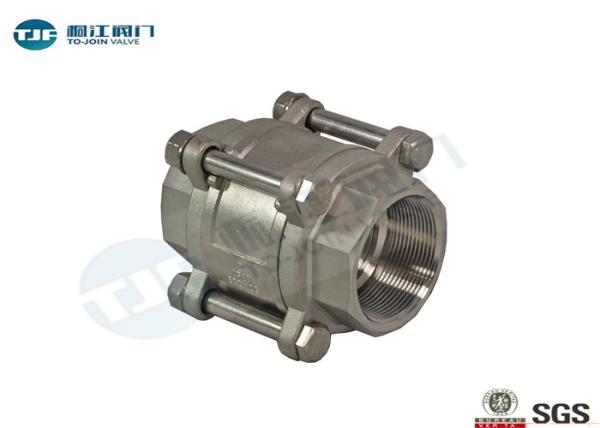

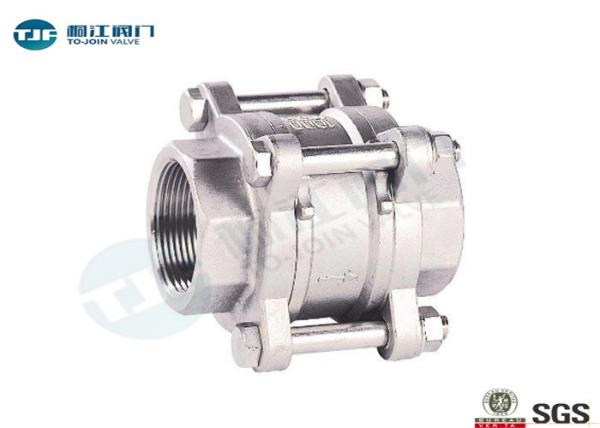

Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve
Specifications
Brand Name :
TongJiang
Model Number :
Non Return Check Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Check Valve Body Material :
Stainless Steel
Check Valve Size :
1/2" to 4"
Check Valve Temperature :
-10°C to 180°C
Check Valve Media :
Chemical industry, Pharmaceutical Applications, Hydraulic, for Compressed Air
Check Valve Pressure Class :
PN63 Bar
Check Valve Connection :
BSP, Socket Weld
Description

Three Pieces Non Return Check Valve in Stainless Steel 316 , PN 64 Bar


Check Valve PRODUCT INTRODUCTION

Operation:

The compact 3-piece check valve body design allows a flow exceeding the pipe area to minimize flow losses and maximize efficiency. In addition, it is a cost-effective alternative to traditional 3-piece ball valves. The unique spring loaded, stainless steel disc and guiding system insures quick closing of the valve, which minimizes water hammer. Optional resilient sealing (Viton, Buna, EPDM) for this 3 piece ball valve alternative.

Installation of 3 Pieces Check Valves:

Three Pieces Check valve and is designed for simple installation and will operate well in any position. Valve is also available with NPT threaded connections or socket end connections.

Benefits:

  • All 316 stainless design
  • Reliable closing system
  • Ultra compact
  • Minimizes water hammer
  • Max. Temp: 400°F
  • Works in any position
  • Low head loss
  • Streamlined design
  • Serviceable in line
  • 1000 WOG

Applications:

  • Chemical-Petrochemical
  • Pharmaceutical
  • Steam
  • Marine
  • Industrial
  • High temperature

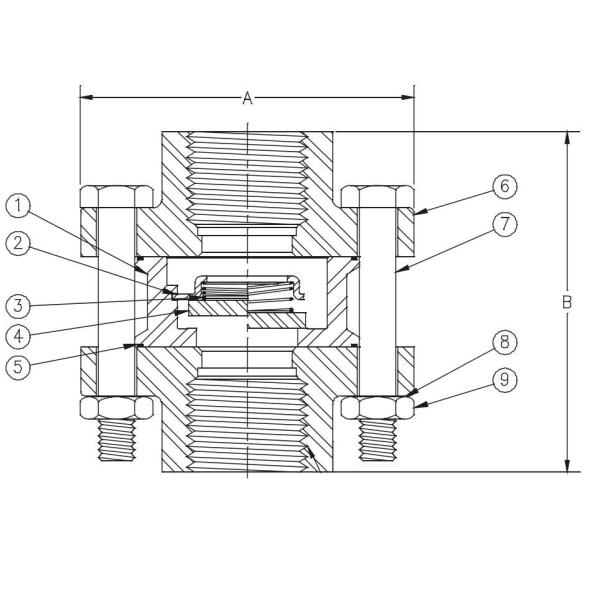

Valve Outline Size Drawing




Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve

Size A B Wt.
1/4 1.46 2.37 0.6

3/8

 1.49 2.34 0.6
1/2 1.76 2.47 0.8
3/4 2.07 2.79 1.2
1 2.25 3.17 1.6
1-1/4 2.92 3.82 3.5
1-1/2 3.01 3.89 3.7
2 3.85 4.53 7.5

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.


Valve Packing with Plywood
Three - Piece Non Return Stop Valve , Stainless Steel 316 Check Valve

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.
