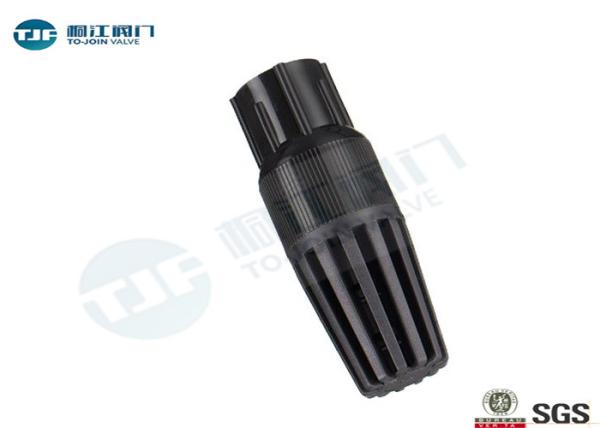

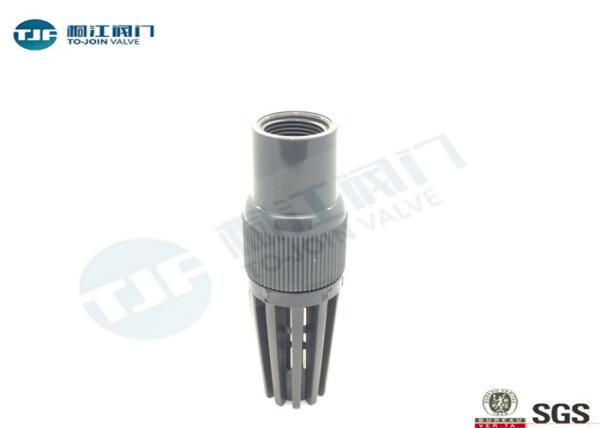

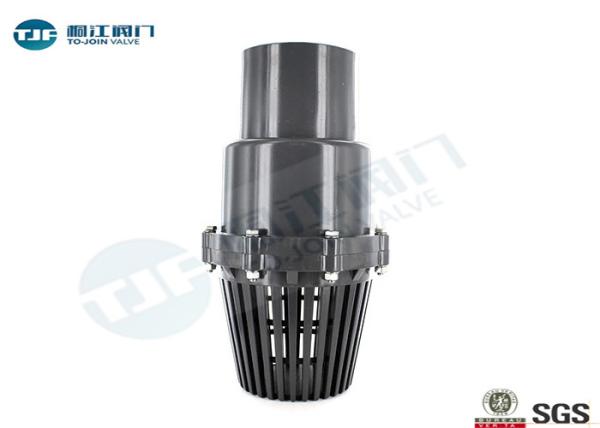

BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made
Specifications
Brand Name :
TongJiang
Model Number :
Foot Check Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Check Valve Body Material :
PVC
Check Valve Size :
½” to 6”inch
Check Valve Temperature :
: Connection is cold water (less than 20°C) rated
Check Valve Media :
Prevent back flow of water
Check Valve Pressure Class :
0-150 P.S.I.
Check Valve Connection :
All threads are BSP
Description

PVC Foot Valve Non Return Check Valve , 150 PSI BSP Thread Ends


Check Valve PRODUCT INTRODUCTION

Description

Foot Valves are used to connect to a male thread to draw water from a water source only allowing water to travel in one direction and restricting large sediment from entering the pipe system. Connecting to male BSP threads, they are easy to install and offer excellent durability, reliability and strength. Australian made for Australian conditions.

Foot valves are designed to comply with the following standards and undertake a range of tests to ensure they comply with these standards.

PVC Foot Valves:

As you can see, foot valves are a very interesting and unique kind of valve. If you are constructing a pond, pool, or well, you'll want to do your research on the best type of foot valve to use for your application. PVC foot valves like the ones pictured in this article are lightweight and cost effective. They can be used for backyard ponds and even industrial applications where PVC is a suitable material.

If your application requires a specific chemical resistant material, or your temperature and pressure needs do not allow for PVC, you can also find stainless steel and other metal valve options.

Features & Benefits
  • All valves pressure and leak tested
  • 0-150 P.S.I.
  • Heavy duty injection molding grey PVC material
  • EPDM gasket
  • Vertical and horizontal mount
  • All parts are easily replaceable
  • Stainless steel components: assembly bolts, springs
Specifications
  • 2" FPT (threaded) Weight: 2 lbs
  • 1.25" FPT (threaded) Weight: 1 lb

Valve Outline Size Drawing

BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made

SIZE d d1 d2 D L L1
ANSI DIN JIS CNS ANSI DIN JIS CNS
1/2"(15) 15 21.40 20.25 22.30 22.40 21.25 20.05 21.85 21.90 54.00 91.00 23.00
3/4"(20) 20 26.75 25.25 26.30 26.40 26.58 25.05 25.85 25.90 63.00 106.50 26.00
1"(25) 25 33.52 32.25 32.33 34.50 33.28 32.05 31.85 33.90 73.50 125.00 29.00
1-1/4"(32) 32 42.28 40.25 38.43 42.50 42.05 40.05 37.85 41.90 84.50 141.00 33.00
1-1/2"(40) 40 48.40 50.25 48.46 48.60 48.12 50.05 47.75 47.90 98.00 150.50 35.50
2"(50) 50 60.45 63.25 60.56 60.60 60.18 63.05 59.75 59.90 119.00 169.50 38.50
2-1/2”(65) 63 73.30 75.25 76.60 76.70 72.85 75.05 75.87 75.90 150.00 295.00 64.50
3”(80) 75 89.25 90.35 89.60 89.70 88.70 90.05 88.83 88.90 169.00 335.00 70.00

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.



Valve Packing with Plywood
BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.



COMPANY PROFILE
floa
1. Our Factory

30 years experience of valve and pipeline industry.
10 senior technical engineers
20000 m2 production area
More than 100 employees to provide professional service.
As the reliable OEM for famous valve brand companies.
t ball valve

2. Factory Show

TONGJIANG Valve Technology Company was established for 30 years.
There are more than 100 employees which includes 10 professional engineers.

BSP Threaded Non Return Foot Valve 150 PSI Class PVC Material Made


OUR SERVICE float ball valve

Reliable Quality, Competitive Price
Reply your inquiry in 2 hours with professional service.


CONTACT INFORMATION

Miss Angela
Mobile: +86 13588429004(Whatsapp)
Skype: angelazhuo1
E-mail: angela@tjfmcn.com
Tel No: +86 571 86991717
Official Website: www.zjtjvalve.com
