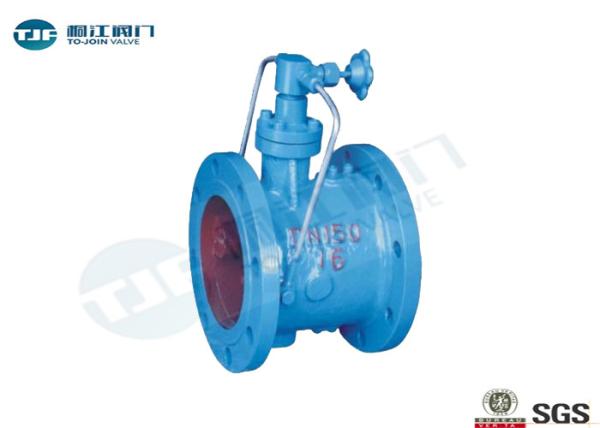

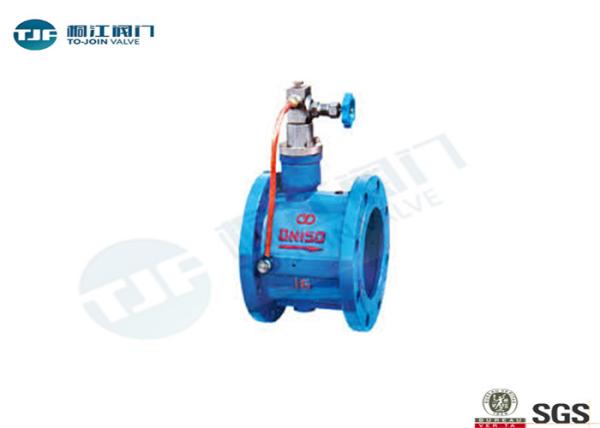

Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve
Specifications
Brand Name :
TongJiang
Model Number :
Non Return Check Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Check Valve Body Material :
Cast Iron, Ductile lron
Check Valve Size :
DN50～800mm
Check Valve Temperature :
up to 80℃
Check Valve Media :
Water Purification, Source Water, Sewage, Seawater
Check Valve Pressure Class :
PN 10 Bar, PN 16 Bar , PN25 Bar
Check Valve Connection :
Flange Ends GB Standard
Description

Butterfly Non Return Check Valve in Micro Resistance Slow Closing , PN 10 bar


Check Valve PRODUCT INTRODUCTION

Description

HH49X retarded butterfly check valve is mainly used in water purification, source water, sewage, seawater and other media supply and drainage pipelines, installed in the pump outlet, to cut off the backflow of the medium to eliminate the atomic energy damage of the water hammer, to protect the safe operation of the pipeline, water pump.

Main Features

1. Body shape is small, light weight, structure length is only about 1/3 of swing check valve.

2. The slow-closing system has excellent performance and is not affected by the medium in the pipeline. The valve disc closes first and then slowly closes to prevent the ring-breaking water hammer.

3. Rubber soft seal, good sealing performance, wear resistance, long service life.

4. Rubber buffer, opening and closing smoothly, no vibration, no noise.

5. Less resistance than the old check valve, which has obvious energy saving effect.


Valve Outline Size Drawing

Butterfly Non Return Check Valve , PN 10 Bar Flanged Non Return Valve


DN(mm)		 PN(mm) L D D1 D2 B H H1 n-φd
50 1.0/1.6 160 165 125 100 20 105 110 4-18
65 170 185 145 120 20 110 115 4-18
80 180 200 160 135 22 115 120 4-18/8-18
100 190 220 180 158 24 130 228 8-18
150 210 285 240 212 26 172 230 8-23
200 230 340 295 268 28 210 270 8-23/12-23
250 250 395/405 350/355 320 28/30 240 305 12-23/12-25
300 270 445/460 400/410 370 28/30 264 367 12-23/12-25
350 290 505/520 460/470 430 30/34 294 422 16-23/16-25
400 310 565/580 515/525 482 32/36 324 462 16-25/16-30
450 330 615/640 565/585 532 32/40 351 497 20-25/20-30
500 350 670/715 620/650 585 34/44 379 532 20-25/20-34
600 390 780/840 725/770 685 36/48 434 607 20-30/20-37
700 430 895/910 840 800 40/50 491 702 24-30/24-37
800 470 1015/1025 950 905 44/52 549 792 24-34/24-41
900 510 1115/1125 1050 1005 46/54 600 900 28-34/28-41
1000 550 1230/1255 1160/1170 1110 50/56 655 975 28-34/28-45
1200 630 1455/1485 1380/1390 1330 56/58 770 1140 32-41/32-51


If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.
