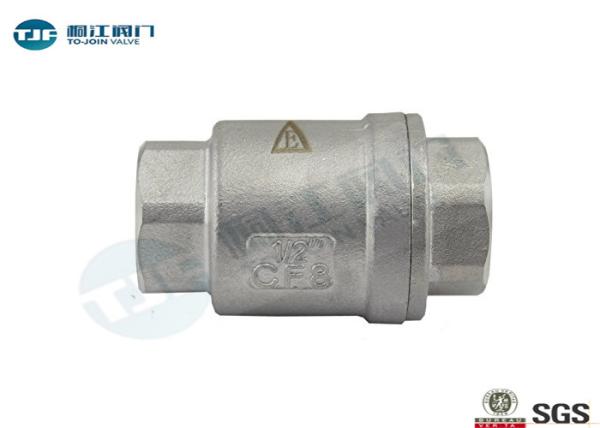

2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
2 - Piece Lift Check Valve , 1/2 - 2 BSP Threaded Stainless Non Return Valve
Specifications
Brand Name :
TongJiang
Model Number :
Pressure Seal Check Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Check Valve Body Material :
Stainless steel(CF8,CF8M)
Check Valve Size :
1/2" to 2" BSP
Check Valve Temperature :
0 to 180°C
Check Valve Media :
Air, water, gas, oil & some acids.
Check Valve Pressure Class :
0 to 54 BAR
Check Valve Connection :
Thread BSP
Description

Lift Check Valve in 2 PCS Style Stainless Steel 304 / 316 , 1/2" to 2" BSP

Check Valve PRODUCT INTRODUCTION

Check Valve Description

Stainless Steel 2 piece BSP threaded in line lift check valve. Suitable for a wide range of media including steam, water and oil. Please bear in mind that this is a metal to metal seat so a bubble tight seal will not be formed at lower pressures. Can be installed in any orientation as it has a spring backing. Great for a simple backflow/backpressure preventer where stainless steel is required.

Features

Size 1/2" to 2" BSP
Body Stainless Steel
Seat Metal
Pressure Range 0 to 54 BAR
Temperature 0 to 180°C

Specification

Model Size (BSP) DN Pressure Range Temperature Weight (KG) CV
ICS-04 1/2" 15 0 to 54 BAR -20°C to 180°C 0.25 13
ICS-05 3/4" 20 0 to 54 BAR -20°C to 180°C 0.3 32
ICS-06 1" 25 0 to 54 BAR -20°C to 180°C 0.5 67
ICS-07 1 1/4" 32 0 to 54 BAR -20°C to 180°C 0.8 115
ICS-08 1 1/2" 40 0 to 54 BAR -20°C to 180°C 1.1 183
ICS-09 2" 50 0 to 54 BAR -20°C to 180°C 1.5 365

Valve Outline Size Drawing

2 - Piece Lift Check Valve , 1/2

Main Dimensions

Model Size DN D C L
ICS-04 1/2" 15 15 14 61
ICS-05 3/4" 20 20 16 70
ICS-06 1" 25 25 18 80
ICS-07 1 1/4" 32 32 20 90
ICS-08 1 1/2" 40 37 20 100
ICS-09 2" 50 50 22 120


If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Valve Packing with Plywood

2 - Piece Lift Check Valve , 1/2

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

COMPANY PROFILE

floa

1. Our Factory

30 years experience of valve and pipeline industry.

10 senior technical engineers

20000 m2 production area

More than 100 employees to provide professional service.

As the reliable OEM for famous valve brand companies.

t ball valve

2. Factory Show

TONGJIANG Valve Technology Company was established for 30 years.

There are more than 100 employees which includes 10 professional engineers.

2 - Piece Lift Check Valve , 1/2

OUR SERVICE float ball valve

Reliable Quality, Competitive Price

Reply your inquiry in 2 hours with professional service.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
