Double Hinge Flap Check Valve Ductile Iron, PN 16 Bar, DN80 - DN600


Check Valve PRODUCT INTRODUCTION


Flap Check Valve Description

The double hinge Flap Valve is a circular aperture design suitable for use in dirty or sea water applications. Typical installations include outfalls from treatment works and outfalls to rivers or the sea. All Euro TF sizes are double hung to provide added sealing assurance.



Double Hinge Flap Check Valve Feature

  • Tamper-proof austenitic stainless steel hinge pins as standard.
  • Body and flap manufactured from ductile iron.
  • Incorporates flap lifting eye to facilitate opening.
  • Superior welded nickel iron seating face machined to a high quality finish, providing excellent seating characteristics.
  • Lightweight scalloped flange design on sizes DN200 and above provides ease of handling and installation.
  • Single link design for sizes DN80-250 double link design for sizes DN300-600.
  • Suitable for use in sea water applications.
  • Coated in fusion bonded epoxy to BS EN 14901.
  • Suitable for wall or flange mounting.

Service Conditions

  • Potable water, filtered water, sea water, dirty water & sewage.
  • Working pressure 16 bar.
  • Temperature range -10°C to 70°C.

(Insulate at 0°C and below)

Technical Information
Where the flap valve may be subjected to severe wave action, consideration should be given to shielding the valve to avoid disturbing the seal. The valve should always be mounted above the shingle line.
Material Specification
Items Description Material Specification
1. Body Ductile Iron BSEN 1563 Gr. 500/7
2. Bush Gunmetal BSEN 1400 LG2
3. Hinge Pin Stainless Steel BSEN 10088 1.4310
4. Links Ductile Iron BSEN 1563 Gr. 500/7
5. Flap Ductile Iron BSEN 1563 Gr. 500/7
6. Seating Face Nickel Iron Weld Ni55Fe45

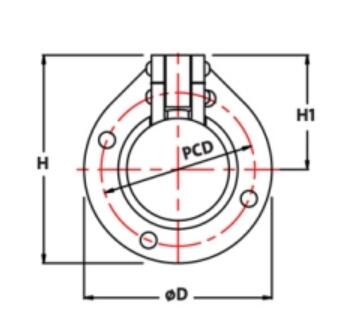

Valve Outline Size Drawing


Double Hinge Flap Type Non Return Valve DN80 - DN600 For Sea Water ApplicationsDouble Hinge Flap Type Non Return Valve DN80 - DN600 For Sea Water Applications

Double Hinge Flap Type Non Return Valve DN80 - DN600 For Sea Water Applications

Dimensions
DN H H1 D PCD W
No. of
bolts
Hole
diameter
Approx
weight (kg)
80 225 125 200 160 68 4 19 4
100 244 134 220 180 72 4 19 6
150 312 170 285 240 81 4 23 11
200 370 210 340 295 77 4 23 16
225 395 229 370 325 74 4 23 20
250 410 233 400 355 75 4 28 23
300 470 280 460 410 83 4 28 25
350 550 321 540 470 94 4 28 33
375 550 321 540 495 94 4 25 33
400 621 331 580 525 95 4 31 44
450 695 375 640 585 100 4 31 53
500 758 400 715 650 103 4 34 62
600 867 447 840 770 110 4 37 78






If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.
