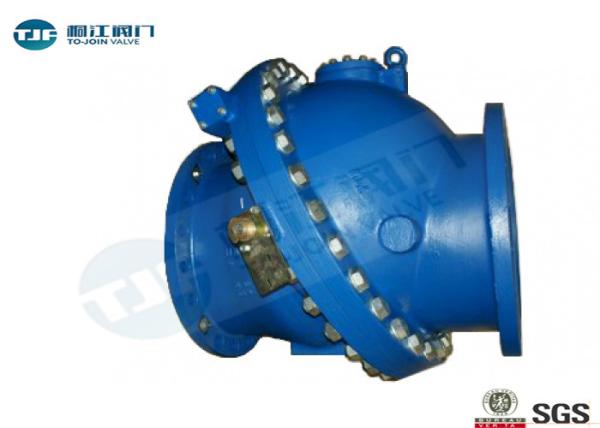

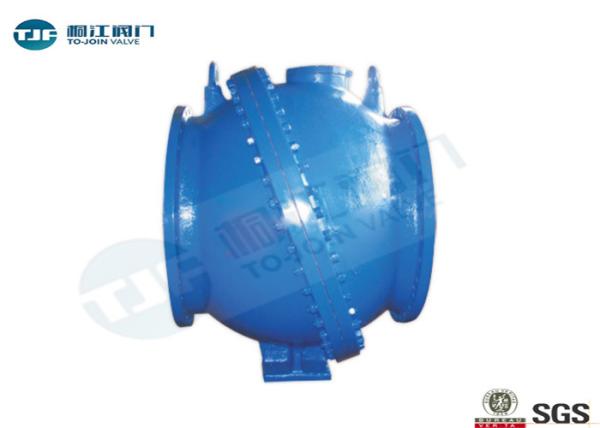

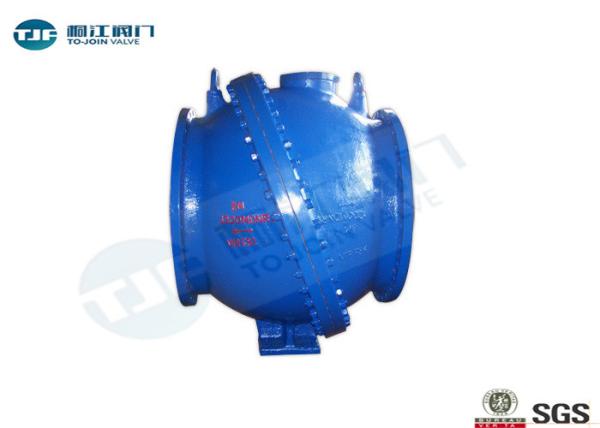

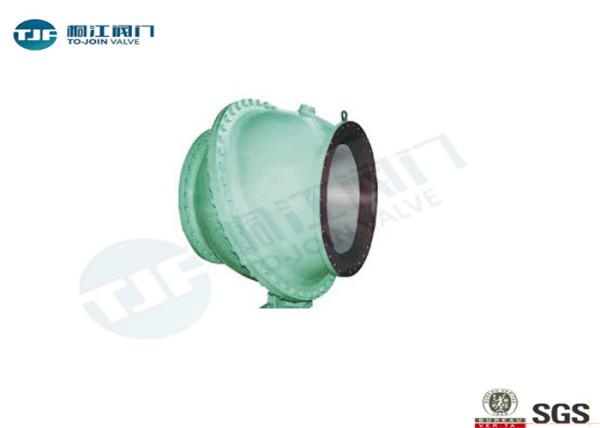

Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3
Specifications
Brand Name :
TongJiang
Model Number :
Double Hinge Flap Check Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Check Valve Body Material :
Cast Iron BSEN 200
Check Valve Size :
DN80 - DN600
Check Valve Temperature :
-10°C to 70°C. (Insulate at 0°C and below)
Check Valve Media :
Filtered water, dirty water & sewage
Check Valve Pressure Class :
PN16 Bar BS4504
Check Valve Connection :
Double-Door Design DN500-DN900, Multi-Door Design DN1000-DN14000
Description

Recoil Non Return Check Valve in Multi Door Cast Iron, PN 16 Bar , EN 1074 - 3


Check Valve PRODUCT INTRODUCTION

Metal seat Free Acting Check Valve to prevent reverse flow, suitable for water, wastewater and sewage applications.Flanges to BSEN 1092-2 table - PN16 BS4504, size range 100-1400mm, cast or Ductile iron with gunmetal seats.
Certain applications, particularly those associated with centrifugal pumping sets demand a higher standard of performance than the standard type of check valve can offer. The Hi-Check is designed to cope with those more arduous conditions, being able to handle higher velocities and offering quicker response to deceleration of the column to minimise slamming and resultant surges. This is achieved by low seat angle. The Hi-Check valves open fully under flow and this reduces head loss in the open position.
To cope with particularly arduous conditions a range of special weight doors are available, please submit details of your application with any enquiry.
Features.
  • Designed for rapid closure.
  • Robust compact ductile iron design.
  • Gunmetal seated.
  • Stainless steel shaft.

Service Conditions.

  • Potable water, filtered water, dirty water & sewage.
  • Working pressure 16 bar.
  • Temperature range -10°C to 70°C. (Insulate at 0°C and below)
Standards.
  • Designed according to EN 1074 - 3.
  • Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16.
Test/Approvals.
  • Hydraulic test to EN 1074-3.
  • Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar).
  • Approved for waste water / pressure test EN 1074.
Accessories / Options.
  • Extra Heavy Doors.
  • Non Standard Flanges.
  • Proximity and Limit Switch.
  • By-pass.
  • Double-Door Design DN500-DN900.
  • Multi-Door Design DN1000-DN14000.
  • PN25.

Valve Outline Size Drawing


Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3

Double Door Dimensions

Size C C1 E F G H J K L P R S T
500 864 940 406 607 1128 715 42 4 610 650 356 254 229
600 914 990 451 658 1240 840 48 5 725 770 388 260 229
700 965 1040 508 737 1337 908 48 5 795 840 438 260 267
800 1016 1090 546 775 1456 997 48 5 900 950 438 273 267
900 1219 1295 635 915 1551 1125 51 5 1000 1050 572 349 267
1000 1219 1295 781 940 1816 1255 54 5 1115 1170 699 394 305

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.



Valve Packing with Plywood
Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.
You will get an effective response within 24 hours from TongJiang Team.



COMPANY PROFILE
floa
1. Our Factory

30 years experience of valve and pipeline industry.
10 senior technical engineers
20000 m2 production area
More than 100 employees to provide professional service.
As the reliable OEM for famous valve brand companies.
t ball valve

2. Factory Show

TONGJIANG Valve Technology Company was established for 30 years.
There are more than 100 employees which includes 10 professional engineers.

Recoil Non Return Check Valve Cast Iron Made With Multi Door Design EN 1074 - 3


OUR SERVICE float ball valve

Reliable Quality, Competitive Price
Reply your inquiry in 2 hours with professional service.
