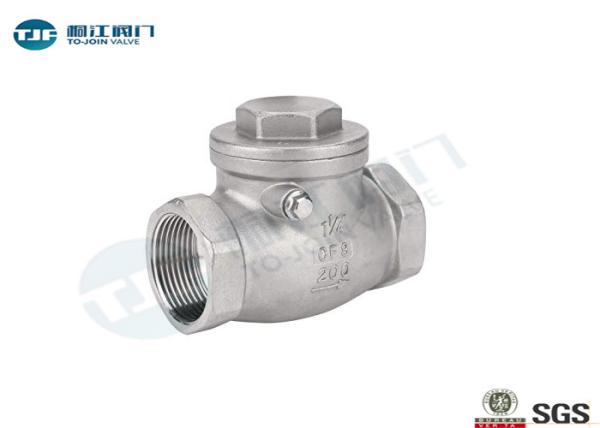

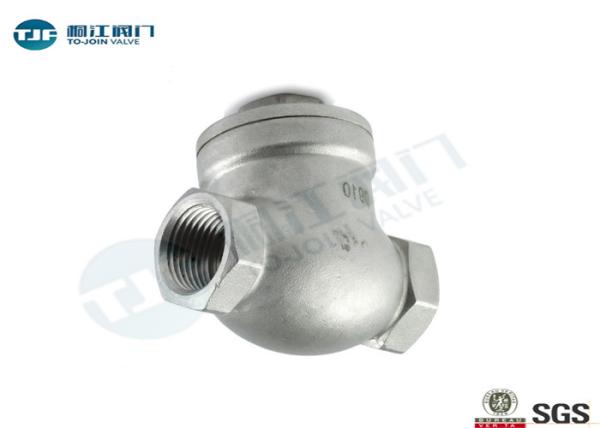

Non Return Check Valve Stainless 316 in Female Threaded BSP / NPT Ends

Check Valve PRODUCT INTRODUCTION

Check Valve Description

304/ 316 Stainless Steel swing check valve. Rated to 13 BAR (200 PSI) and used on a horizontal plane only. The 'gate' is pushed back allowing flow in one direction but will seal shut if it receives any flow/pressure from the other direction. Metal seat for temperatures up to 180°C. This swing check valve is suitable for a wide range of applications such as liquid, steam and chemical. Very low cracking pressure.

Swing Check Valve female NPT/BSP SS304/SS316( 200 PSI)

Product Specification :

1) Full Bore
2) Size: 1/2''-2''(DN15-DN50)
3) Material: CF8(SS304), CF8M(SS316), DIN1.4408/1.4308
4) Threaded: BSP, NPT, PT, DIN259/2999
5) Working Pressure: 200PSI
6) Suitable Temp.: -20~200ºC~350ºC
7) Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid

Features:

1. Investment casting Body
2. Inside screw and screwed cap
3. Adjustable stem packing
4. Swing type disc, integral seat
5. Working pressure 200 psi for W.O.G.
6. Temperature range: -60 to 450 °F
7. 100% leakage tested at 100 psi air under water
8. Hydrostatic test pressure: 300psi

Valve Outline Size Drawing

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
