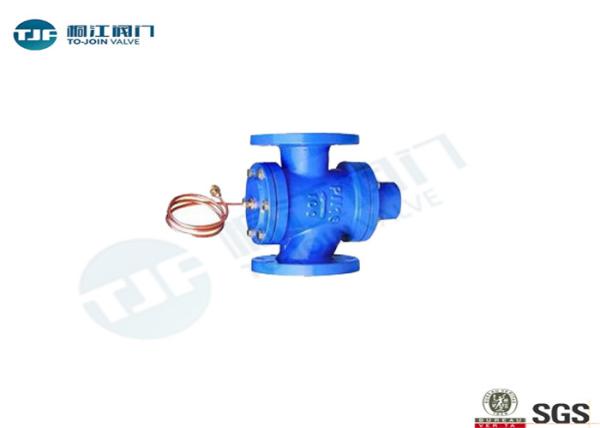

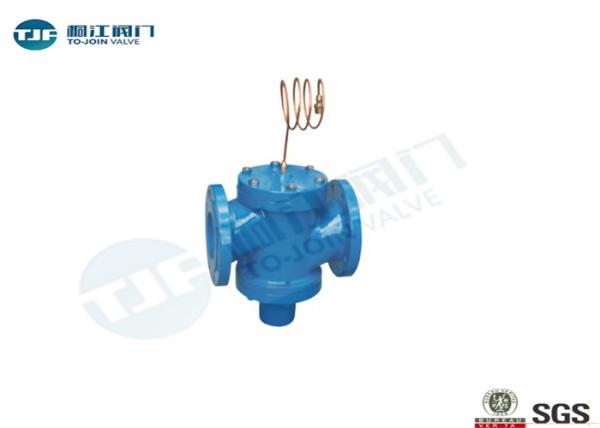

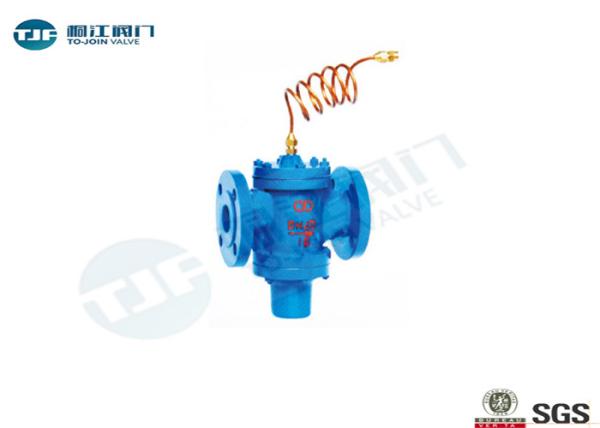

Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve
Specifications
Brand Name :
TongJiang
Model Number :
Balance Valves
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Balancing Valve Body Material :
Cast iron, HT 200, GGG50
Balancing Valve Size :
DN 15-DN 125 mm
Balancing Valve Temperature :
0~100°C
Balancing Valve Pressure Class :
10KPa,20KPa,30KPa
Balancing Valve Connection :
Flange or Thread Ends
Balancing Valve Medium :
Water, Non-Corrsive Medium
Description

Self Diffential Balancing Valve, Cast Iron, Thread / Flange Ends for Pipeline System

PRODUCT INTRODUCTION

1. Description

ENZYC Self Pressure Diffential Control Valve is such a valve as using the self pressure variation to do self control while keep the pressure differential of the medium flowing through this controlled system unchanged. Suitable for the pressure differential control of the warming supply using a dual-pipeline system to guarantee the system basically unchanged, lower the noise, balance the resistance and get rid of the heat-net and hydraulic imbalance.

2. Technical parameters

Model PN(MPa) Casing test pressure Control range of pressure differential
Fixed pressure differential type Adjustable pressure differential type
ZYC-16 1.6 2.4 MPa 10KPa,20KPa,30KPa 10~30KPa

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

3. Valve Drawing and Datasheet

Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve

Dimensions (mm)

DN
mm		 Way of connection L
mm		 D D1 D2 H(mm) Flow
(m3/h)		 Medium used Medium temperature Part material
Fixed pressure differential type Adjustable pressure differential type
15 Thread 110 95 65 45 95 145 0.2-1 Water 0~100°C Body, upper and lower bonnets: cast iron valve core: copper membrane: nylon reinforced rubber spring: stainless steel
20 110 105 75 55 110 150 0.3-
1.5
25 115 115 85 65 130 165 0.5-2
32 Flange 130 135 100 78 140 190 1-4
40 200 145 110 85 190 340 1.5-6
50 215 160 125 100 205 355 2-8
65 230 180 145 120 240 390 3-12
80 275 195 160 135 300 500 5-20
100 290 215 180 155 350 550 10-30
125 310 245 210 185 380 580

15-45

​4. Valve Packing with Plywood

Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

COMPANY PROFILE

floa

1. Our Factory

30 years experience of valve and pipeline industry.

10 senior technical engineers

20000 m2 production area

More than 100 employees to provide professional service.

As the reliable OEM for famous valve brand companies.

t ball valve

2. Factory Show

TONGJIANG Valve Technology Company was established for 30 years.

There are more than 100 employees which includes 10 professional engineers.

Threaded / Flanged Static Balancing Valve , Self Differential Pressure Control Valve

OUR SERVICE float ball valve

Reliable Quality, Competitive Price

Reply your inquiry in 2 hours with professional service.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
