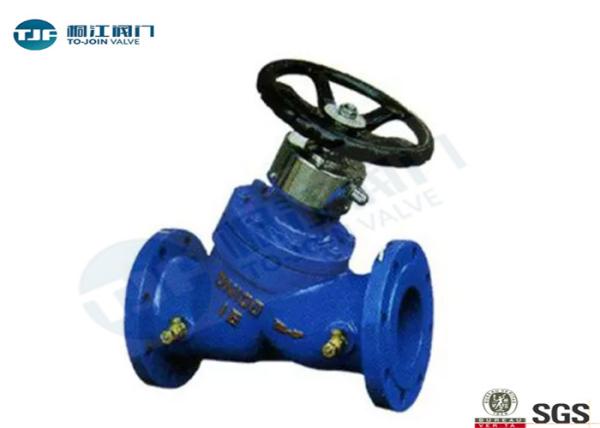

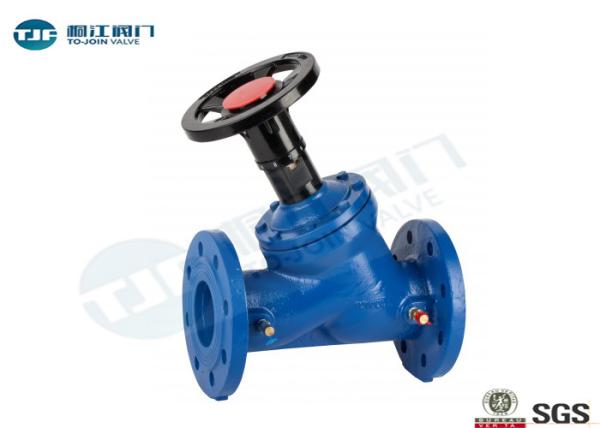

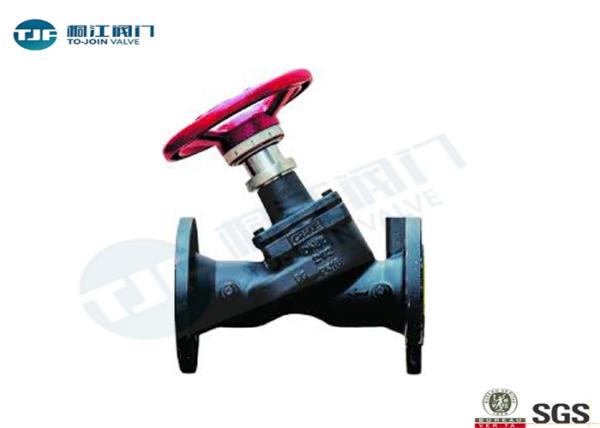

Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional
Specifications
Brand Name :
TongJiang
Model Number :
Balance Valves
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Balancing Valve Body Material :
Ductile Iron, Cast Iron
Balancing Valve Gasket Seal :
EPDM
Balancing Valve Temperature :
-10°C to +120°C
Balancing Valve Pressure Class :
PN 10/PN16 KG
Balancing Valve Power :
Manual
Balancing Valve Medium :
Water , Oil and other Liquids
Description

Cast Iron Ductile Iron Static Balancing Valve Flanged in Cooling and Heating System

PRODUCT INTRODUCTION

1. Description

Balancing valves maintain flow conditions so that control valves function properly in HVAC systems, because unbalanced systems can produce wide temperature variations among rooms and can increase energy needs. We offer a line of balancing valves that help heating and cooling systems perform well and cost-efficiently.

2. Design & Constrution

1. Variable orifice cast iron double regulating globe valve according to BS 7350 standard.

2. Body and Bonnet in Ductil Iron.

3. PN16 flanges according to EN 1092.

4. Face To Face according to EN558-1 series 1.

5. Non rising stem.

6. EPDM coated disk.

7. Provided with test points (Rc 1/4").

8. Handwheel with position indicator and preset screw.

9. Three functions: Measuring, Regulating andIsolating.

10. Max. working pressure 16 bar.

11. No maintenance.

Working conditions:

Water: -10°C to +120°C

Below 0°C only for water with added antifreezing fluids.

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

3. Valve Drawing and Datasheet

Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional

Dimensions (mm) of SP45F-10/16

DN D D D L H
32 135 100 78 180 230
40 145 110 85 200 242
50 160 125 100 230 250
65 180 145 120 290 260
80 195 160 135 310 329
100 215 180 155 350 340
125 245 210 185 400 424
150 280 240 210 480 454
200 335 295 265 550 517
250 405 355 320 622 573
300 460 410 375 698 617
350 520 470 435 787 705

4. Valve Packing with Plywood

Flanged Static Balancing Valve Cast Iron / Ductile Iron Type Optional

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
