Specifications
Brand Name :
TongJiang
Model Number :
Hydraulic Control Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Hydraulic Control Valve Body Material :
Cast Iron HT200, Ductile iron GGG50
Hydraulic Control Valve Size :
DN 50mm-DN 800mm
Hydraulic Control Valve Connection :
Flanged Ends ANSI 16.34
Hydraulic Control Valve Application :
Pipeline of High Buildings, Fire-fighting
Hydraulic Control Valve Pressure Class :
PN 10 Bar- 25 Bar
Hydraulic Control Valve Temperature :
up to 80 °C
Description

Pressure Relief Valve, Sustaining Valve in Diaphragm Styple, Ductile Iron

PRODUCT INTRODUCTION

1. Description

AX742X Pressure Relief, Pressure Sustaining Valve, Prevent Water Hammer is mounted on the pipeline of high buildings, fire-fighting and other water supply systems.

AX742X Pressure Relief, Pressure Sustaining Valve, Prevent Water Hammer will open automatically to discharge the pressure quickly when the pressure inside the pipeline surpasses the set one so as to protect the pipelines safety. It can also be used as the pressure-retaining valve to guarantee the water supply pressure of the main valves upper-stream.

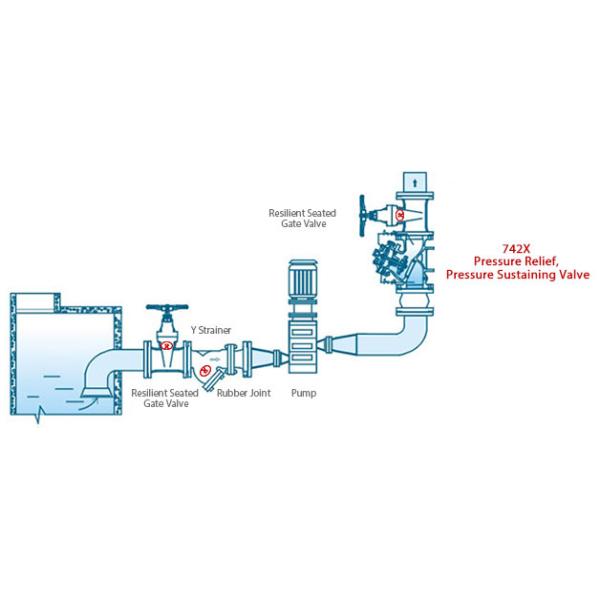

2. Installation Pump Control Valve

Diaphragm Style Hydraulic Control Valve , Ductile Iron Pressure Relief Valve

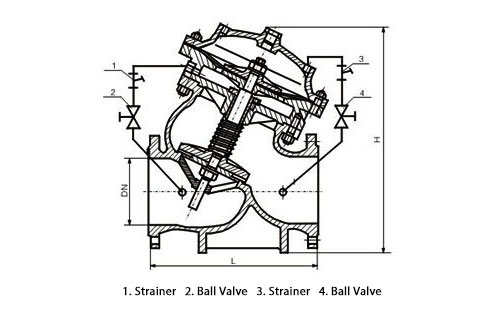

3. Hydraulic Control Valve Outsize Drawing

Diaphragm Style Hydraulic Control Valve , Ductile Iron Pressure Relief Valve

DN L D D1 n-d H
1.0MPa 1.6 MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa
50 205 165 165 165 125 125 125 4-18 4-18 4-18 300
65 216 185 185 185 145 145 145 4-18 4-18 8-18 337
80 250 200 200 200 160 160 160 8-18 8-18 8-18 467
100 320 220 220 235 180 180 190 8-18 8-18 8-22 520
125 365 250 250 270 210 210 220 8-18 8-18 8-22 580
150 415 285 285 300 240 240 250 8-22 8-22 8-26 640
200 500 340 340 360 295 295 310 8-22 12-22 12-26 778
250 605 395 405 425 350 355 370 12-22 12-26 12-26 889
300 698 445 460 485 400 410 430 12-22 12-26 12-30 1010
350 787 505 520 555 460 470 490 16-22 16-26 16-30 1037
400 914 565 580 620 515 525 550 16-26 16-30 16-33 1264
450 978 615 640 670 565 585 600 20-26 20-30 16-36 1294
500 978 670 715 730 620 650 660 20-26 20-33 20-36 1324
600 1150 780 840 845 725 770 770 20-30 20-36 20-39 1600
700 1300 895 910 960 840 840 875 2430 24-36 24-42 1750
800 1450 1015 1025 1085 950 950 990 2433 24-39 24-48 1900

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

4. Hydraulic Control Valve Packing with Plywood

Diaphragm Style Hydraulic Control Valve , Ductile Iron Pressure Relief Valve

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.
