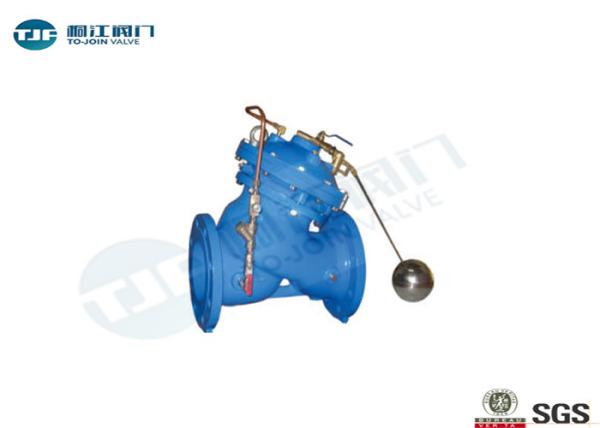

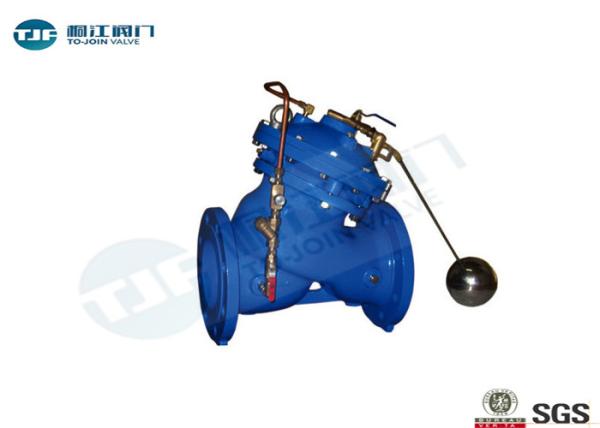

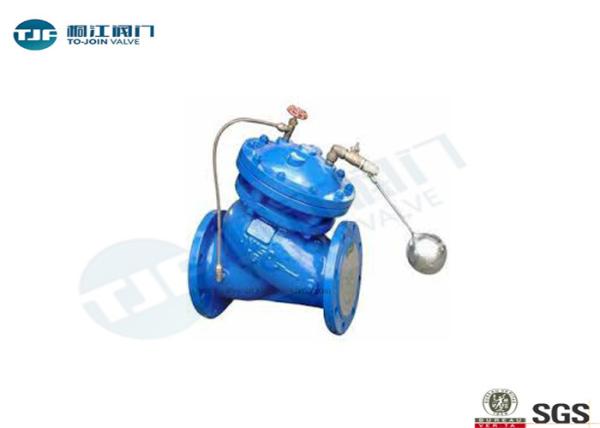

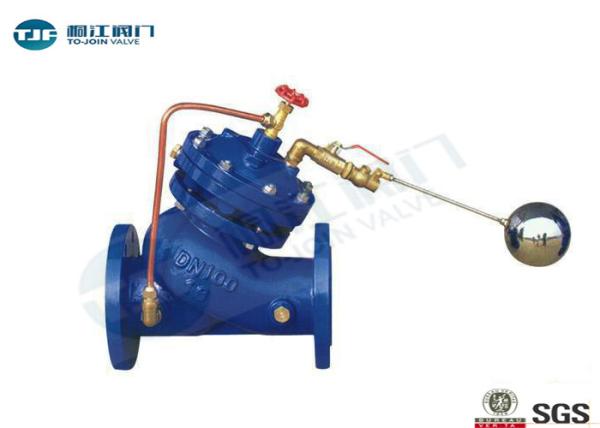

Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style
Specifications
Brand Name :
TongJiang
Model Number :
Hydraulic Control Valve
Certification :
ISO9001,BV,SGS
Place of Origin :
CHINA
MOQ :
5 piece or as the requirment
Price :
FOB CHINA USD100-5800 /PC
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
10000PCS/MONTH as the specification
Delivery Time :
5-15 days
Packaging Details :
Wooden cases
Hydraulic Control Valve Body Material :
Cast Steel, Ductile Iron
Hydraulic Control Valve Size :
DN 50mm-DN 800mm
Hydraulic Control Valve Connection :
Flanged Ends
Hydraulic Control Valve Application :
Adjust Water Level
Hydraulic Control Valve Pressure Class :
PN 10 Bar- 25 Bar
Hydraulic Control Valve Temperature :
up to 80 °C
Description

Hydraulic Float Control Valve, Cast Steel, Bi-Lever, Non-modulating , F745X

PRODUCT INTRODUCTION

1. Description

F745X Float Control Valve is mounted in the water inlet pipeline of the water pool or tower. F745X Bi-Level, Non-Modulating float-Control Valve will close automatically when the level of the pool reaches the preset one and open to supplier water when the level is lower than the preset one.

a. Tightly and reliably closed. Use of secure O-ring seal and hydraulic control principle makes the closing force of the sliding disk proportional to the water pressure, leaving a high reliability of the seal.

b. Big flow. The valve body is designed as the full-path stream-line type, causing small fluid resistance and big flow.

c. Safe running. Use of hydraulic operation can control automatically the level of the water pool or tower very accurately.

d. Easy use and maintenance. Installation on the outside of the water pool makes the main valves debugging and checking easy and maintenance simple.

2. Installation Pump Control Valve

Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style

3. Hydraulic Control Valve Outsize Drawing

Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style

DN L D D1 n-d H
1.0MPa 1.6 (MPa) 2.5 (MPa) 1.0(MPa) 1.6(MPa) 2.5 (MPa) 1.0MPa 1.6 (MPa) 2.5 (MPa)
50 205 165 165 165 125 125 125 4-18 4-18 4-18 255
65 216 185 185 185 145 145 145 4-18 4-18 8-18 290
80 250 200 200 200 160 160 160 8-18 8-18 8-18 326
100 320 220 220 235 180 180 190 8-18 8-18 8-22 380
125 365 250 250 270 210 210 220 8-18 8-18 8-22 448
150 415 285 285 300 240 240 250 8-22 8-22 8-26 495
200 500 340 340 360 295 295 310 8-22 12-22 12-26 625
250 605 395 405 425 350 355 370 12-22 12-26 12-26 755
300 698 445 460 485 400 410 430 12-22 12-26 12-30 879
350 787 505 520 555 460 470 490 16-22 16-26 16-30 909
400 914 565 580 620 515 525 550 16-26 16-30 16-33 1130
450 978 615 640 670 565 585 600 20-26 20-30 16-36 1160
500 978 670 715 730 620 650 660 20-26 20-33 20-36 1198
600 1150 780 840 845 725 770 770 20-30 20-36 20-39 1600
700 1300 895 910 960 840 840 875 2430 24-36 24-42 1750
800 1450 1015 1025 1085 950 950 990 2433 24-39 24-48 1900

If you require other sizes and valve design standards, please send email to angela@tjfmcn.com to get the drawing.

4. Hydraulic Control Valve Packing with Plywood

Hydraulic Float Control Valve Cast Steel Bi - Lever Non - Modulating Style

Please feel free to contact with us at angela@tjfmcn.com or filling up an enquiry form instructed at the bottom.

You will get an effective response within 24 hours from TongJiang Team.

CONTACT INFORMATION

Miss Angela

Mobile: +86 13588429004(Whatsapp)

Skype: angelazhuo1

E-mail: angela@tjfmcn.com

Tel No: +86 571 86991717

Official Website: www.zjtjvalve.com
