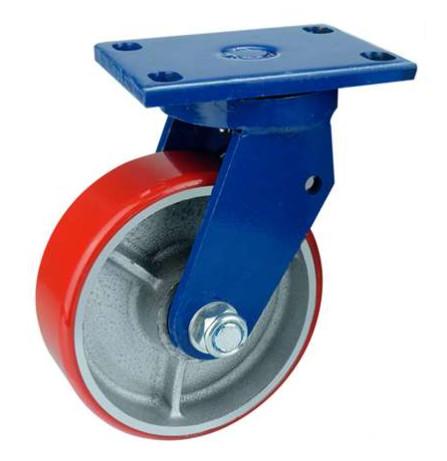

Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons
Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons
Specifications
Model Number :
OY5-PU150-SRB
Place of Origin :
China
MOQ :
50-100pcs
Price :
negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
500 pcs per day
Delivery Time :
5-7 working days
Packaging Details :
stardard export carton
guarantee :
one year under normal condition use
name :
super heavy duty PU casters
material :
urethane casters
core :
iron
diameter :
150mm ,200mm ,250mm and 300mm
load capacity :
2000kgs
plate type :
swivel,fixed,total brake
bearing :
double ball bearing 6205
bracket :
paint coated
MOQ :
10-50pcs
Description

super heavy duty caster PU wheel cast iron 2.5 tons

Product description

Item Name: super heavy duty polyurethane casters
Wheel Diameter: 150mm,200mm,250mm and 300mm available ,you can choose as you want
Wheel Width: 75mm
Mounting Type: Top Plate
Top Plate Size: 140mm x 110mm

Top plate thickness: 10mm
Hole distance: 110mm x 73mm
Wheel Core: Cast iron

Wheel tread:PU
Bearing type: precision double ball bearing 6205
Load Capacity: 2 tons/piece
Mounting: swivel,fixed and total brake are optionals

Features:

The wheel diameter is 150mm,200mm,250mm and 300mm

Tread width of the caster wheel is 75mm,very strong

This wheel caster can be mounted using a top plate with the dimensions of 140mm x 110mm x 10mm and holes distance of 110mm x 73mm

High quality polyurethane wheel ,cast iron wheel core with precision double ball bearing 6205

10mm thick bracket to support maximum load calpacity around 2000kg-2500kg

Applications: move large items , heavy duty equipent or machine

Technical data

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons OY5-PU150-SRB PU 150mm 75mm 1500kg 202mm 110*73mm 140*110mm
OY5-PU200-SRB PU 200mm 75mm 2000kg 252mm
OY5-PU250-SRB PU 250mm 75mm 2500kg 300mm
OY5-PU300-SRB PU 300mm 75mm 2500kg 380mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons OY5-PU150-FRB PU 150mm 75mm 1500kg 202mm 110*73mm 140*110mm
OY5-PU200-FRB PU 200mm 75mm 2000kg 252mm
OY5-PU250-FRB PU 250mm 75mm 2500kg 300mm
OY5-PU300-FRB PU 300mm 75mm 2500kg 380mm

Picture Item No. Material Wheel diameter Tread width Load capacity Overall height Hole spacing Plate size
Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons OY5-PU150-BRB PU 150mm 75mm 1500kg 202mm 110*73mm 140*110mm
OY5-PU200-BRB PU 200mm 75mm 2000kg 252mm
OY5-PU250-BRB PU 250mm 75mm 2500kg 300mm
OY5-PU300-BRB PU 300mm 75mm 2500kg 380mm

Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons

Iron Caster PU Wheels Super Heavy Duty Swivel Casters 1500kgs 1.5tons

How about payment terms ?

TT 30% deposit before production,and 70% balance after goods finished
Western union is available for small amount


Can you support us with less order quantity?

No problem,we will try our best to serve you no matter small order or bulk order


How to customize castor wheels ?

Just tell us your requirments then we will match and send you price list
we will produce free samples after dimensions confirmed


How to handle shipping ?

If you have forwarder in China,then we will cooprate with them
We will handle the goods for you if you do not have agent in China
please rest assured,we will follow up till the goods reach you
