EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
Specifications
Brand Name :
EDL
Model Number :
504P-86
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
4inch(100mm)
Dynamic Load :
150kg
Core Material :
PP
Tread Material :
TPU
Mounting Type :
Rigid/Swivel / Brake
Mounting Height :
133mm
Frame Material :
Cold-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
4mm
Bracket Thickness :
2.5mm
Bracket Width :
41mm
Wheel width :
32mm
Bearing :
Double ball bearings
Tread Color :
Red
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 504P-86



The EDL Medium Duty 4-inch 150kg Plate TPU Caster 504P-86 is made of high-durability TPU, offering excellent shock absorption, wear resistance, and quiet operation to minimize floor damage. Its vibrant red color enhances visibility and safety. Equipped with dual ball bearings, it ensures smooth and effortless movement. The 4-inch wheel size provides excellent stability and maneuverability, making it ideal for industrial and commercial applications. The plate mounting system ensures secure installation, allowing quick and easy attachment or replacement across different equipment setups. Available in both rigid and swivel options, it comes with side brake and iron dual brake configurations, catering to various braking needs.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness

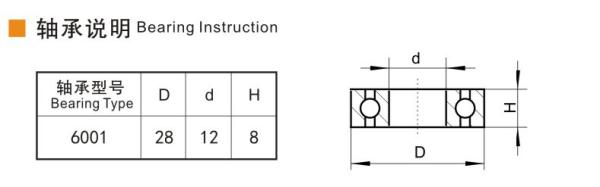

504-86 4" 100mm 32mm 41mm 150Kg PP

TPU

Double ball

bearing 6001

 -20℃～80℃ 95A

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake typeEDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake typeEDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake typeEDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake typeEDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 4inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
