EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
Specifications
Brand Name :
EDL
Model Number :
37225S-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
2.5inch(63mm)
Dynamic Load :
80kg
Tread Material :
TPU
Core Material :
PP
Standard Threaded :
M12X25
Mounting Height :
95mm
Frame Material :
Cold-Rolled Plate
Mounting Type :
Swivel / Brake
Bracket Thickness :
2mm
Surface Treatment :
Chrome Coating
Bracket Width :
33mm
Wheel width :
25mm
Bearing :
Single ball bearing
Tread Color :
Grey
Applicable Temperature :
-30℃～70℃
Tread Hardness :
80A
Name :
Light Duty Casters
Description

EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 37225S-77


The EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster features a 2mm thick chrome-plated bracket, providing excellent rust resistance, a sleek polished finish, and enhanced durability. The high-quality TPU wheel ensures smooth, quiet operation, wear resistance, and floor protection, making it ideal for hardwood, tile, and concrete surfaces. With a threaded stem design, this caster offers secure and stable installation, while the swivel and brake mechanism allows for easy maneuverability and firm locking for safety and convenience. The integrated cover design not only enhances aesthetics but also prevents dust buildup, maintaining a clean and durable structure. This caster is perfect for industrial, commercial, and household applications, delivering reliable performance and long-lasting quality.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
37225-77 2.5" 63mm 25mm 33mm 80KG PP

TPU

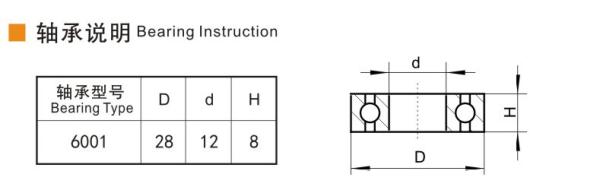

Single ball

bearing 6001

 -20℃～80℃ 95A

EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake typeEDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake typeEDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

EDL Light Duty Chrome Coating 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable
