Specifications
Brand Name :
EDL
Model Number :
3714S-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
4 Inch Metal Caster Wheels
Wheel Diameter :
4inch(100mm)
Dynamic Load :
80kg
Tread Material :
TPU
Core Material :
PP

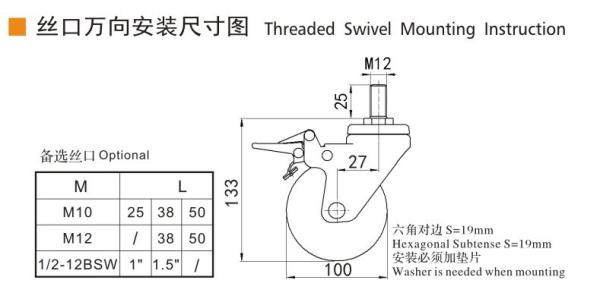

Standard Threaded :
M12X25
Mounting Type :
Swivel / Brake
Mounting Height :
133mm
Frame Material :
Cold-Rolled Plate
Bracket Thickness :
2mm
Surface Treatment :
Zinc Coating
Bracket Width :
33mm
Wheel width :
25mm
Bearing :
Single ball bearing
Tread Color :
Grey
Applicable Temperature :
-30℃～70℃
Tread Hardness :
80A
Description

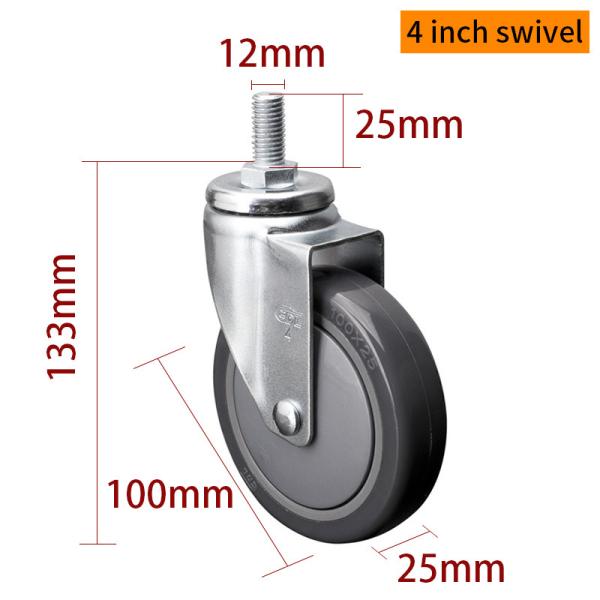

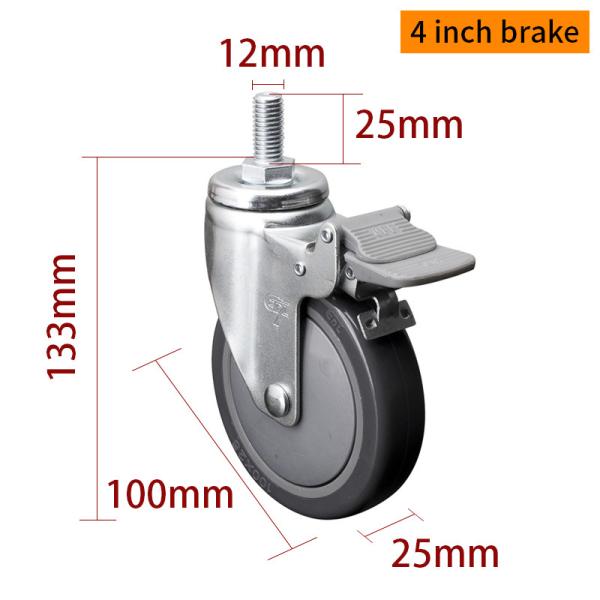

EDL Light Duty Zinc Coating 4inch 80kg Threaded TPU Caster by Swivel and Brake type 3714S-77


The EDL Light Duty Zinc Coating 4inch 80kg Threaded TPU Caster 3714S-77 features a high-quality zinc-coated bracket, providing superior corrosion resistance and long-lasting durability, making it ideal for humid or demanding environments. The gray TPU wheel ensures excellent wear resistance, shock absorption, and floor protection. With a 2mm-thick reinforced bracket and 80kg load capacity, it delivers strong and stable support. The threaded stem installation allows for secure and hassle-free mounting. Equipped with a single ball bearing, this caster ensures smooth movement. Available in swivel and brake types, it adapts to various application needs.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
3714-77 4" 100mm 25mm 33mm 80KG PP

TPU

Single ball

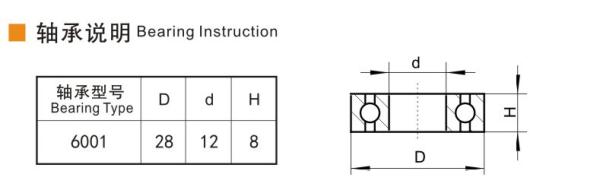

bearing 6001

 -20℃～80℃ 95A

4 Inch Metal Caster Wheels Light Duty 100mm Swivel Castors 3714S-774 Inch Metal Caster Wheels Light Duty 100mm Swivel Castors 3714S-77

4 Inch Metal Caster Wheels Light Duty 100mm Swivel Castors 3714S-774 Inch Metal Caster Wheels Light Duty 100mm Swivel Castors 3714S-77



4 Inch Metal Caster Wheels Light Duty 100mm Swivel Castors 3714S-77

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable
