Specifications
Brand Name :
EDL
Model Number :
735-86
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
5 Inch Heavy Duty Swivel Casters
Wheel Diameter :
5inch(125mm)
Dynamic Load :
380kg
Tread Material :
TPU
Core Material :
PP
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
165mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
6mm
Bracket Thickness :
5mm
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearings
Tread Color :
Red
Applicable Temperature :
-20℃～80℃
Tread Hardness :
98A
Description

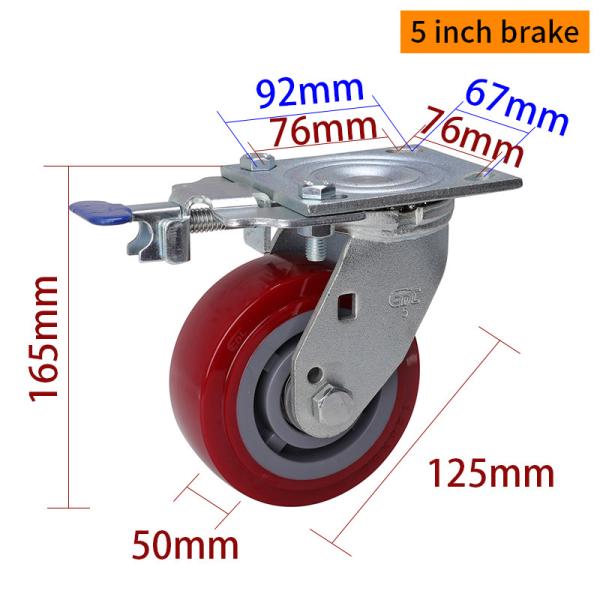

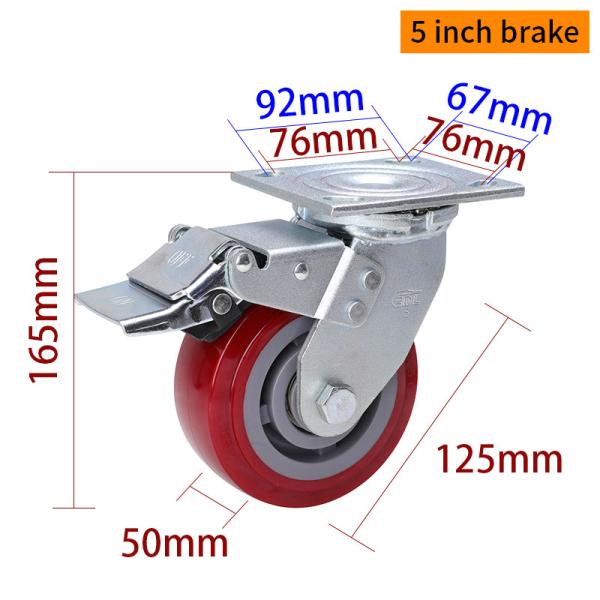

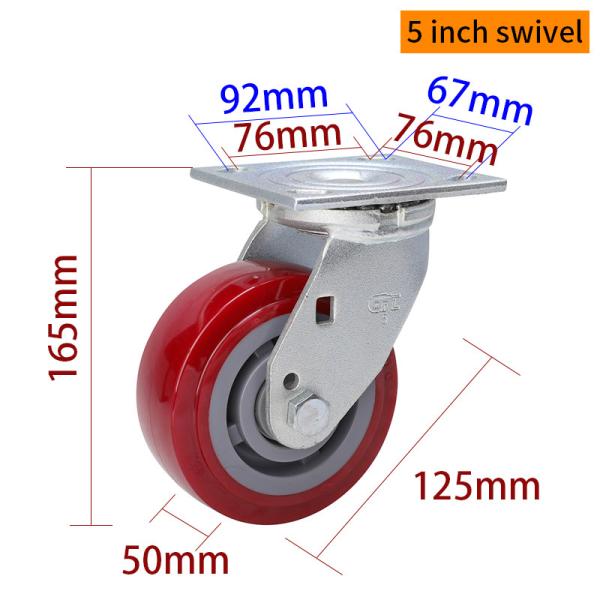

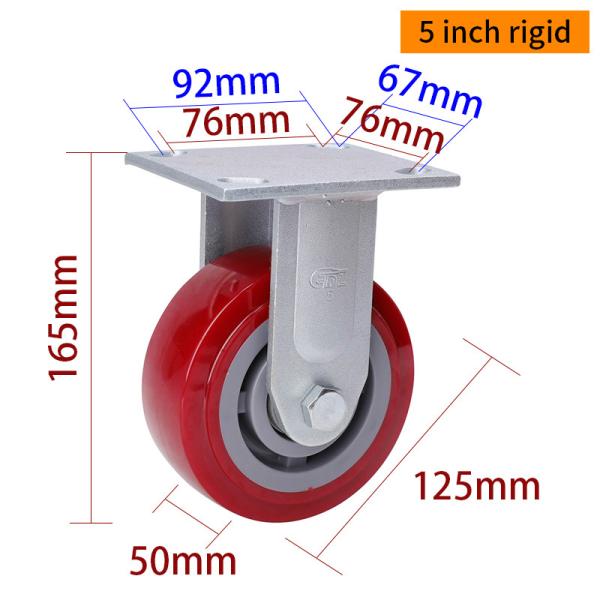

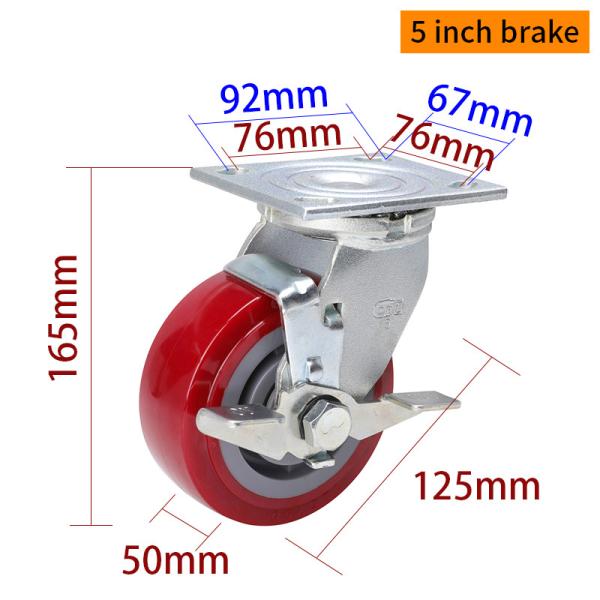

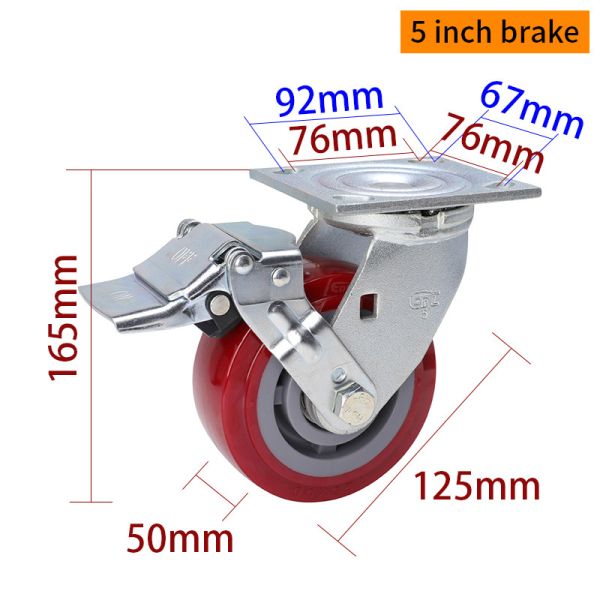

EDL Heavy Duty 5inch 380kg Plate TPU Caster by Rigid, Swivel and Brake type 735-86


The EDL Heavy Duty 5-inch 380kg Plate TPU Caster 735-86 is designed for exceptional strength and durability. Featuring a striking red TPU wheel, it offers excellent wear resistance and shock absorption while ensuring smooth and quiet movement. With a 380kg load capacity, this caster is ideal for heavy-duty applications, from industrial machinery to logistics trolleys. The 6mm thick hot-rolled steel plate enhances structural stability, providing superior strength for demanding environments. Available in multiple configurations, including rigid, swivel, dual brake, wheel brake, side brake, and directional lock, it accommodates various usage needs. The plate-mounted design ensures a secure and stable installation, making it a reliable choice for industries requiring high performance and durability.


Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
735-86 5" 125mm 50mm 61mm 380Kg PP

TPU

Double ball

bearing 6203

 -20℃～80℃ 98A

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

Red 5 Inch Heavy Duty Swivel Casters 125mm Caster Wheels 735-86

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
