Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86
Specifications
Brand Name :
EDL
Model Number :
736-86
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton

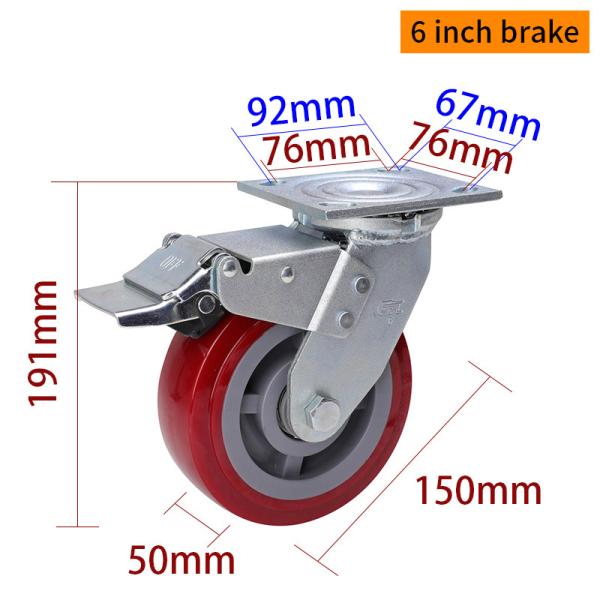

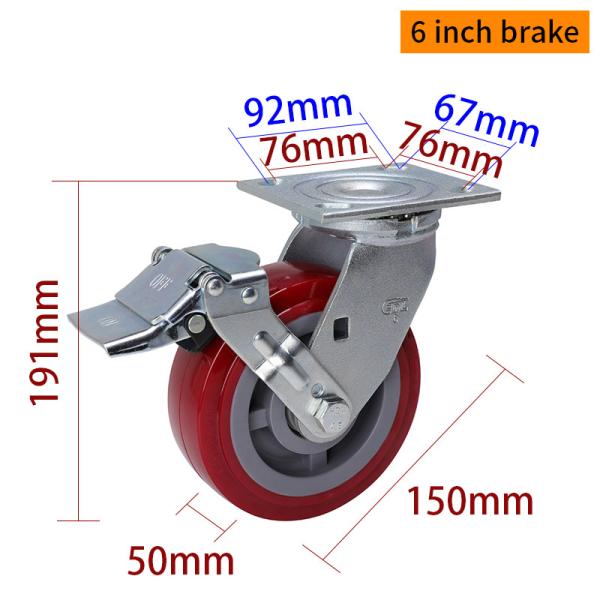

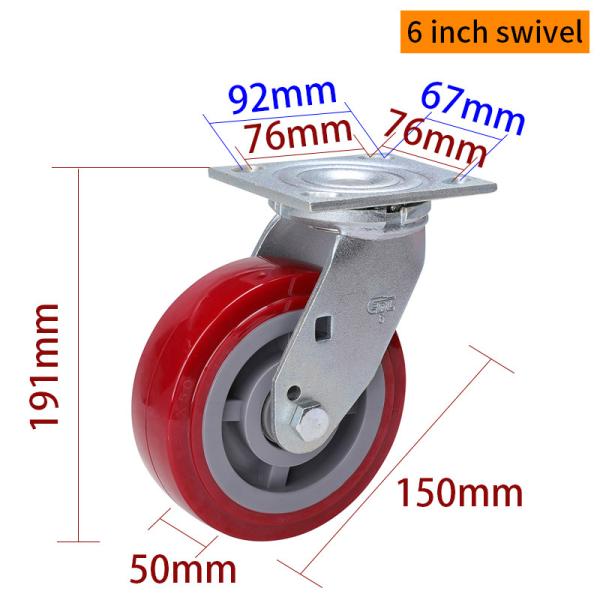

Wheel Diameter :
6inch(150mm)
Tread Material :
TPU
Core Material :
PP
Mounting Type :

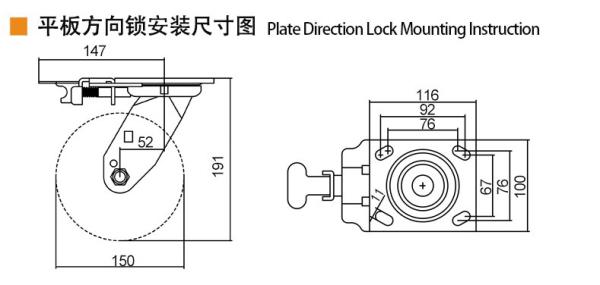

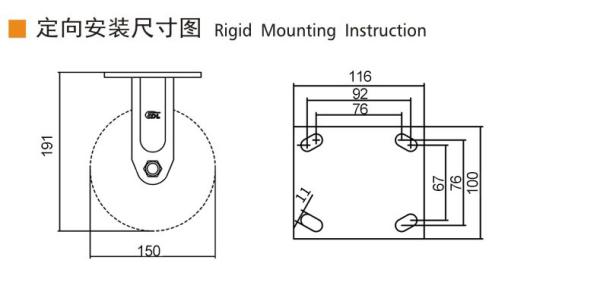

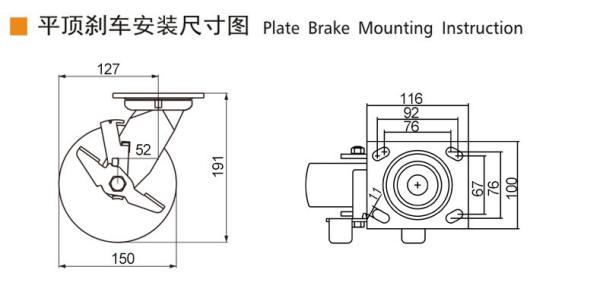

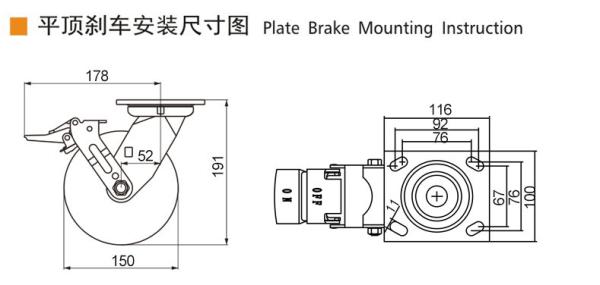

Rigid/Swivel/Brake
Mounting Height :
191mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
6mm
Dynamic Load :
420kg
Bracket Thickness :
5mm
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearings
Tread Color :
Red
Applicable Temperature :
-20℃～80℃
Tread Hardness :
98A
Name :
Heavy Duty Casters
Description

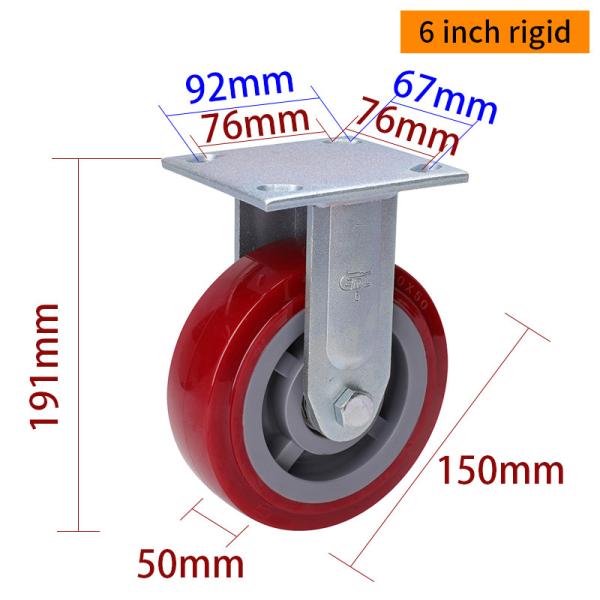

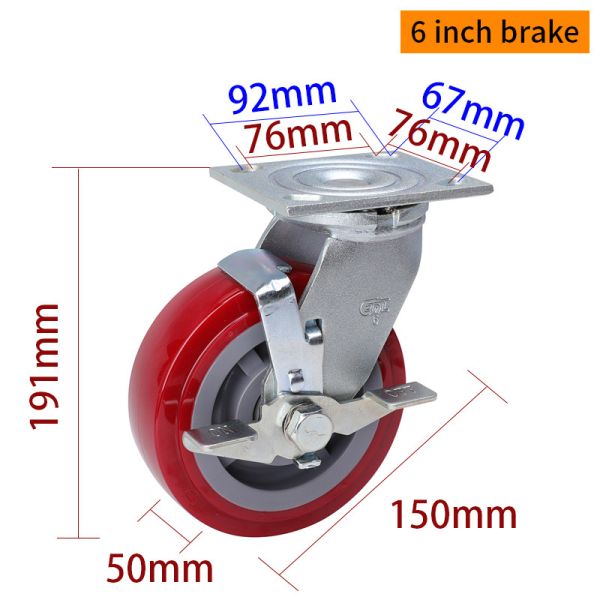

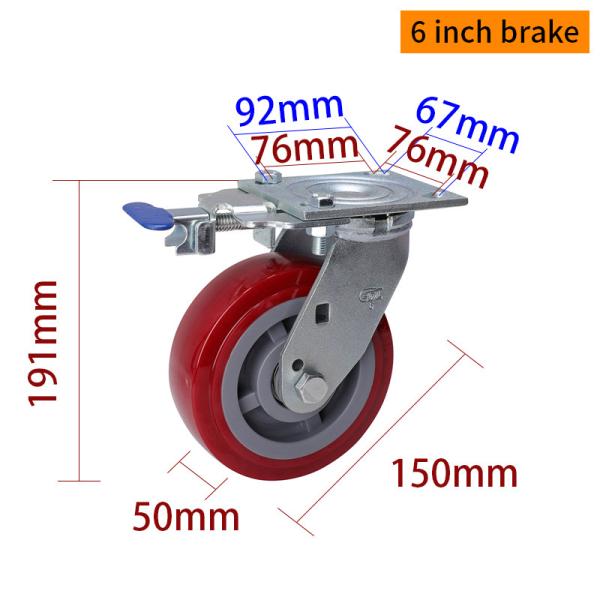

EDL Heavy Duty 6inch 420kg Plate TPU Caster by Rigid, Swivel and Brake type 736-86


The EDL Heavy Duty 6-inch 420kg Plate TPU Caster 736-86 is built for demanding industrial applications. Featuring a bold red TPU wheel, it provides excellent wear resistance, shock absorption, and smooth mobility. With a 420kg load capacity, this caster is designed to handle heavy-duty equipment, industrial carts, and material handling systems. The 6mm thick hot-rolled steel plate enhances durability and structural stability, ensuring reliable performance under high loads. Its plate-mounted design guarantees a secure and stable installation, making it suitable for a variety of work environments. Available in multiple configurations, including rigid, swivel, dual brake, wheel brake, side brake, and directional lock, it offers flexibility for different operational needs.


Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
736-86 6" 150mm 50mm 61mm 420Kg PP

TPU

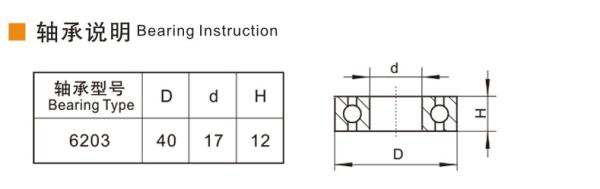

Double ball

bearing 6203

 -20℃～80℃ 98A

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

Zinc Coating Heavy Duty Casters 6 Swivel Caster With Brake 736-86

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
