Specifications
Brand Name :
EDL
Model Number :
738-86
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Heavy Duty Casters
Wheel Diameter :
8inch(200mm)
Dynamic Load :
450kg
Tread Material :
TPU
Core Material :
PP
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
241mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
6mm
Bracket Thickness :
5mm
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearings
Tread Color :
Red
Applicable Temperature :
-20℃～80℃
Tread Hardness :
98A
Description

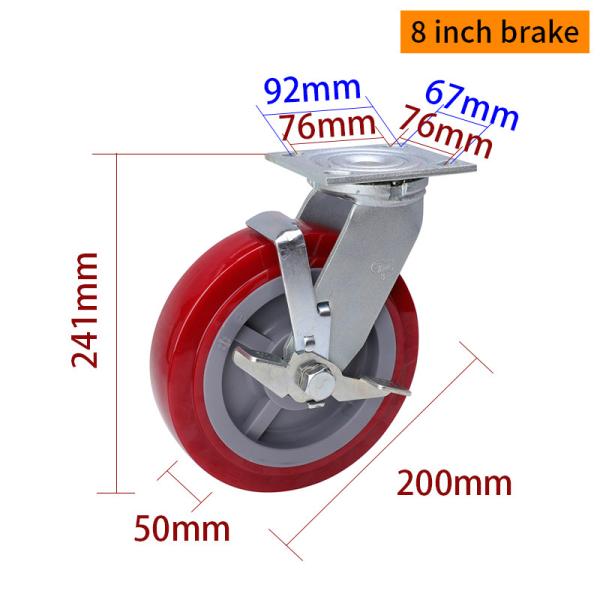

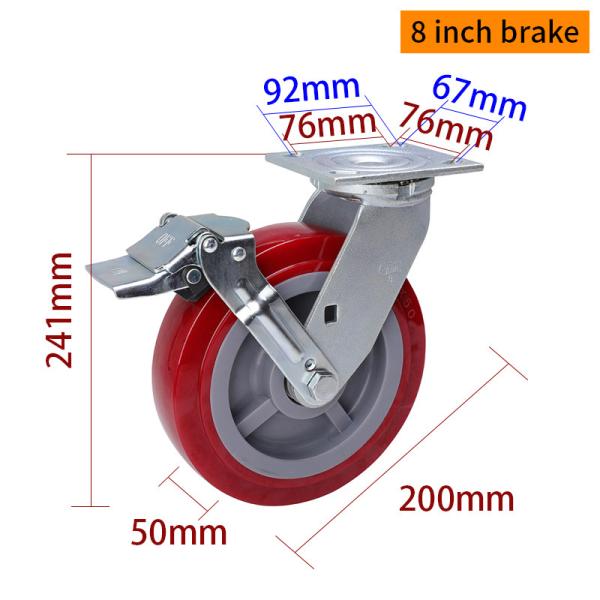

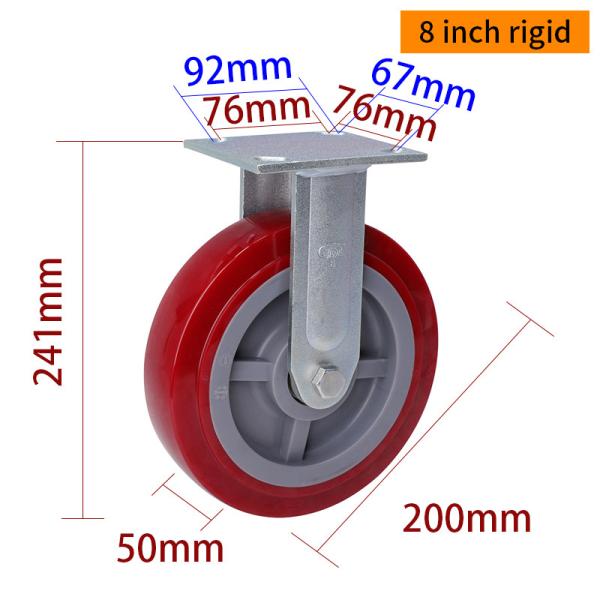

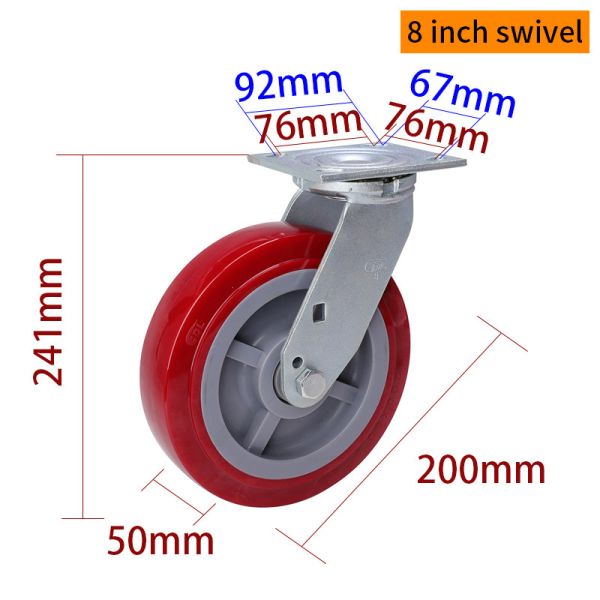

EDL Heavy Duty 8inch 450kg Plate TPU Caster by Rigid, Swivel and Brake type 738-86


The EDL Heavy Duty 8-inch 450kg Plate TPU Caster 738-86 is designed for demanding industrial and commercial applications. Featuring a striking red TPU wheel, it not only enhances durability but also provides excellent resistance to wear and floor protection. The 450kg load capacity makes it ideal for transporting heavy machinery, warehouse carts, and logistics trolleys. Its versatile plate-mounted design ensures secure installation, accommodating rigid, swivel, dual-brake, side-brake, and directional lock configurations to suit different operational needs. Built with a 6mm thick hot-rolled steel bracket, this caster offers superior strength and stability, making it a reliable choice for factories, workshops, and distribution centers where heavy loads require smooth and controlled movement.


Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
738-86 8" 200mm 50mm 61mm 450Kg PP

TPU

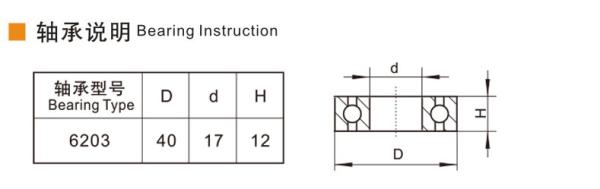

Double ball

bearing 6203

 -20℃～80℃ 98A

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

EDL Heavy Duty Casters 200mm 8 Inch Swivel Caster Wheels 738-86

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
