Specifications
Brand Name :
EDL
Model Number :
735-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton

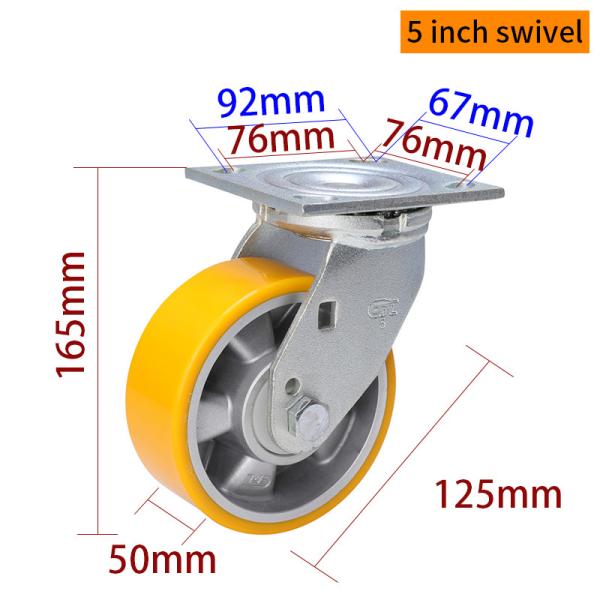

Name :
5 Inch Heavy Duty Caster Wheels
Wheel Diameter :
5inch(125mm)
Dynamic Load :
420kg
Tread Material :
TPU
Core Material :
Aluminum
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
165mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
6mm
Bracket Thickness :
5mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
95A
Description

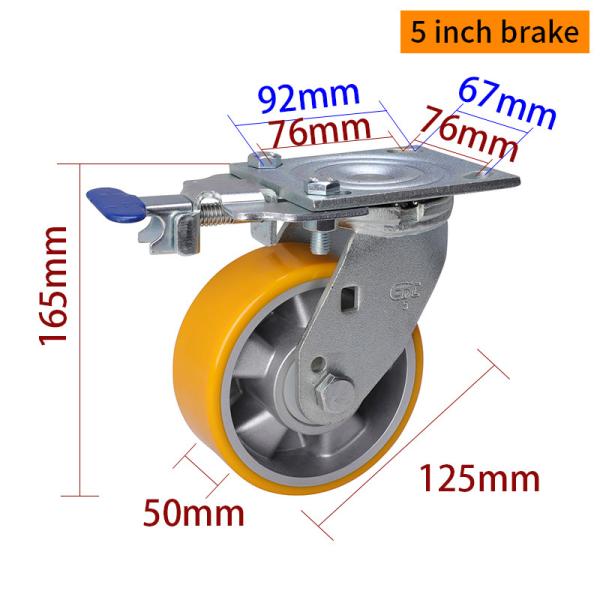

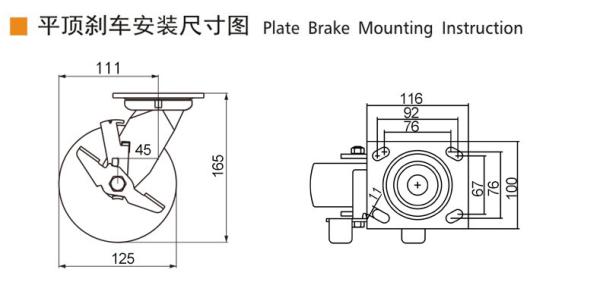

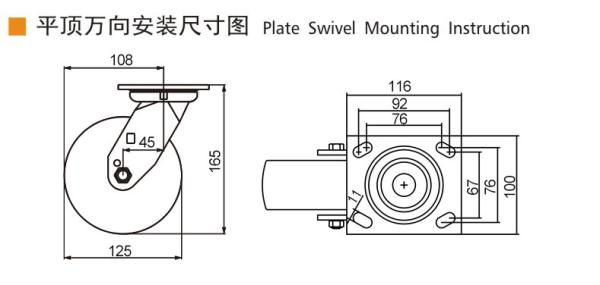

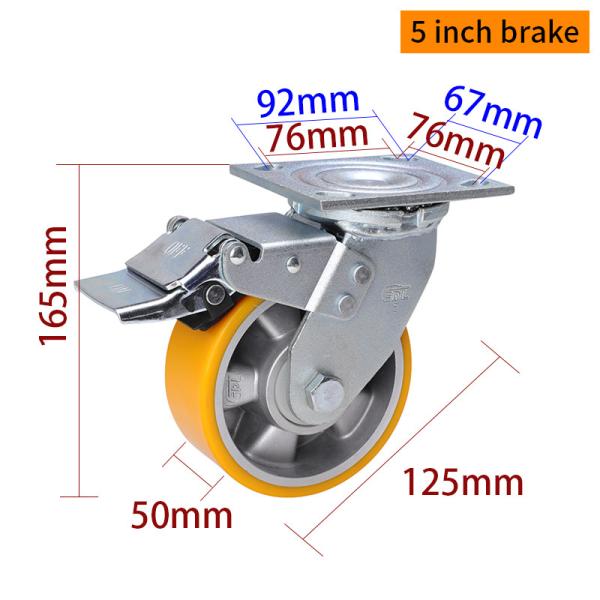

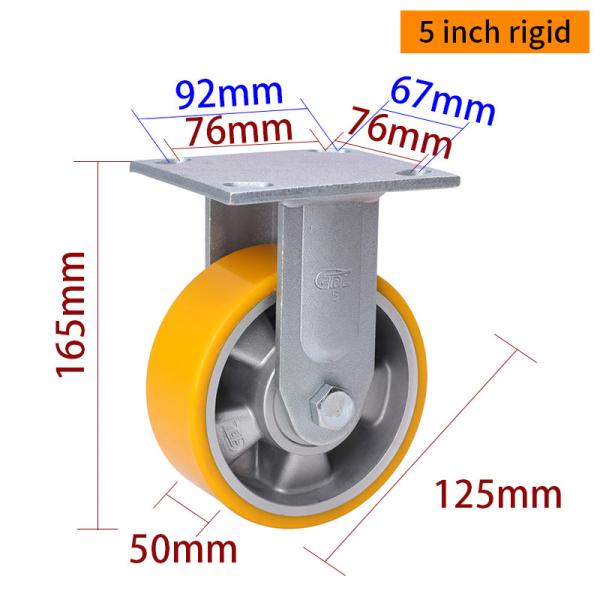

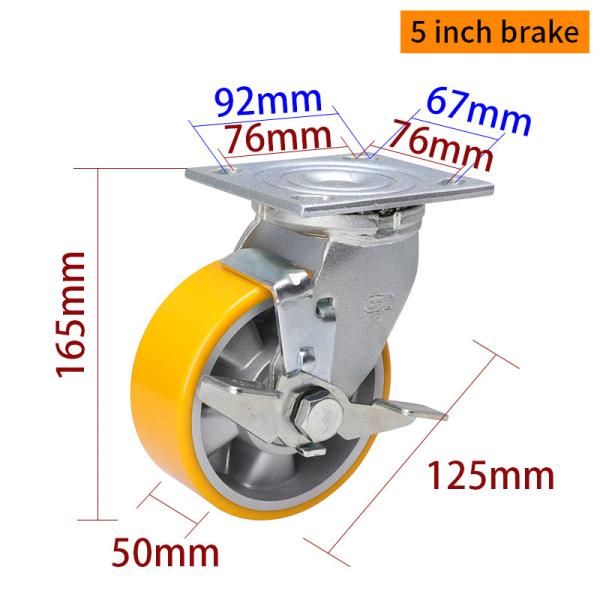

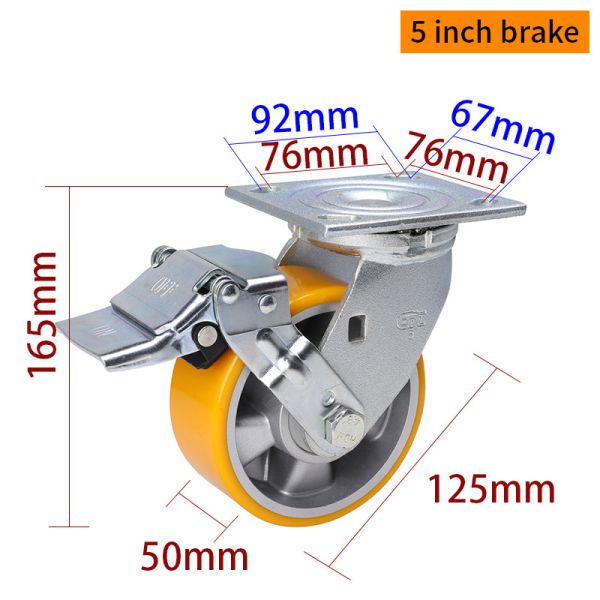

EDL Heavy Duty 5inch 420kg Plate Aluminum Caster by Rigid, Swivel and Brake type 735-86A


The EDL Heavy Duty 5-inch 420kg Plate Aluminum Caster 735-86A is engineered for superior performance in high-load applications. Featuring a durable yellow TPU wheel, it offers excellent wear resistance, shock absorption, and smooth, quiet movement, making it ideal for industrial carts, logistics trolleys, and heavy machinery. The high-strength aluminum alloy wheel core ensures both lightweight construction and outstanding durability. With a 6mm thick hot-rolled steel mounting plate, this caster provides enhanced stability and load-bearing capacity. Designed for versatility, it is available in rigid, swivel, dual brake, wheel brake, side brake, and directional lock configurations, making it adaptable to various operational needs. Whether for manufacturing floors, warehouse transport, or precision equipment, this caster guarantees reliability and long-lasting performance.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
735-86A 5" 125mm 50mm 61mm 420Kg Aluminum

TPU

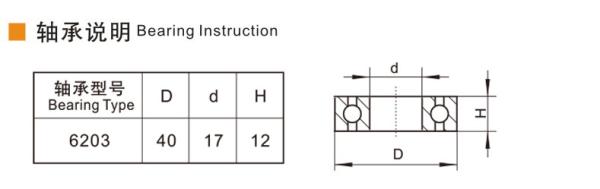

Double ball

bearing 6203

 -30℃～80℃ 95A

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

420kg Plate Aluminum 5 Inch Heavy Duty Caster Wheels With Brakes

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
