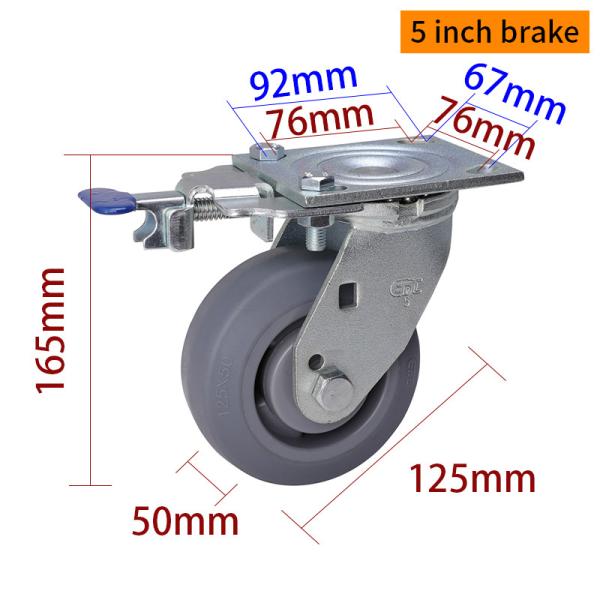

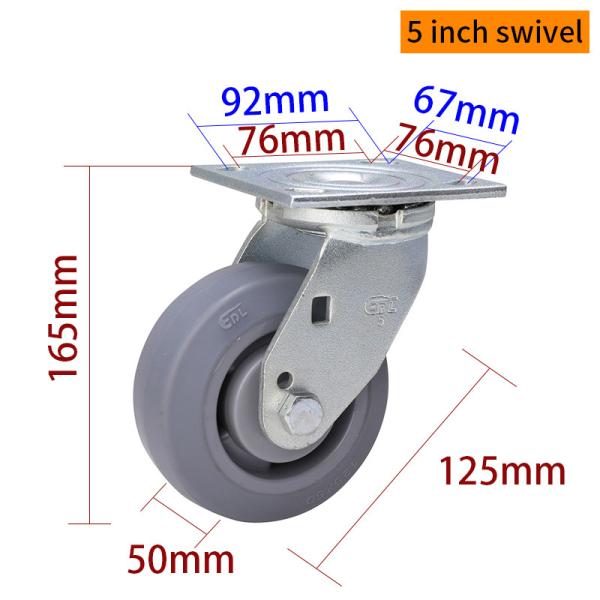

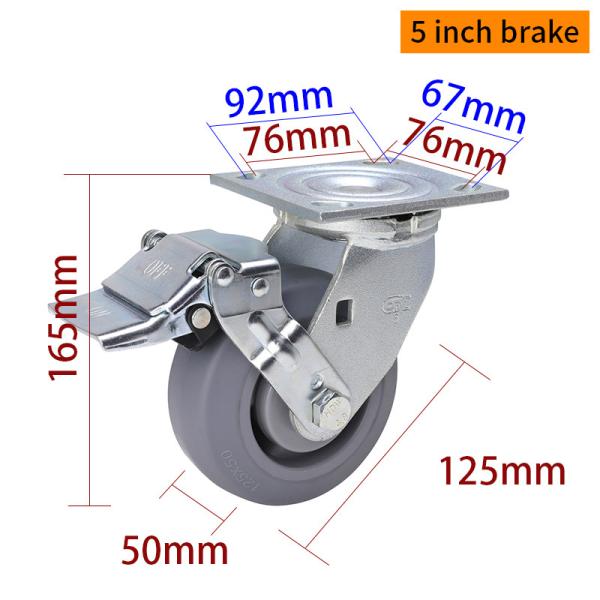

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56
Specifications
Brand Name :
EDL
Model Number :
735-56
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
5inch(125mm)
Name :
Heavy Duty Casters
Dynamic Load :
300kg
Tread Material :
TPE
Core Material :
PP
Mounting Type :

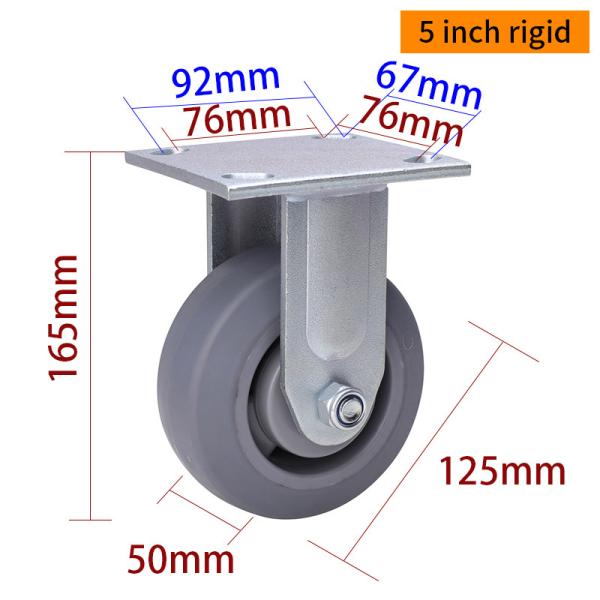

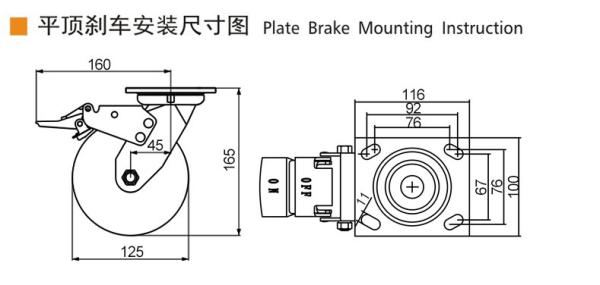

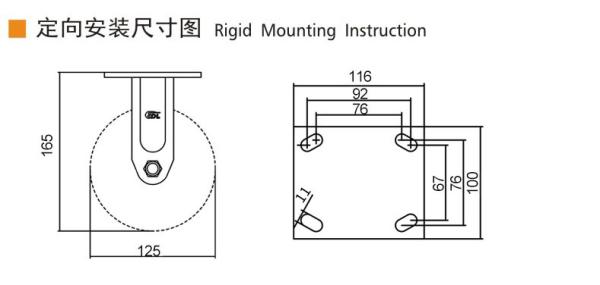

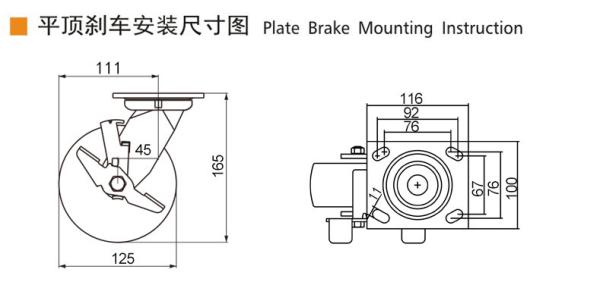

Rigid/Swivel/Brake
Mounting Height :
165mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
6mm
Bracket Thickness :
5mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Grey
Applicable Temperature :
-30℃～70℃
Tread Hardness :
80A
Description

EDL Heavy Duty 5inch 300kg Plate TPE Caster by Rigid, Swivel and Brake type 735-56


The premium EDL Heavy Duty 5inch 300kg Plate TPE Caster 735-56, expertly crafted by EDL Casters, combines strength and versatility. Featuring a 5-inch wheel, this caster is designed to handle demanding loads of up to 300kg while maintaining smooth and stable movement. Ideal for industrial machinery, transport carts, and mobile platforms, it offers exceptional durability. The high-quality TPE wheel provides outstanding wear resistance and floor protection, ensuring quiet operation. With a reinforced bracket and a variety of mounting options, including rigid, swivel, and brake types, this caster adapts to diverse working environments. EDL Casters continues to deliver superior mobility solutions with a commitment to innovation and reliability.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
735-56 5" 125mm 50mm 61mm 300Kg PP

TPE

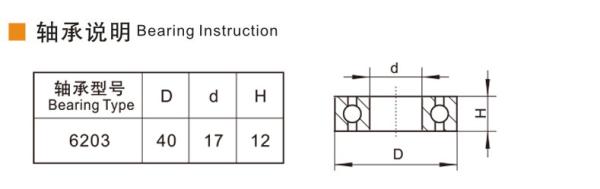

Double ball

bearing 6203

 -30℃～70℃ 80A

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

125mm Heavy Duty Casters 5 Inch Swivel Casters With Brake 735-56

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
