EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26
Specifications
Brand Name :
EDL
Model Number :
665P-26
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
5inch(125mm)
Dynamic Load :
250kg
Tread Material :
TPA

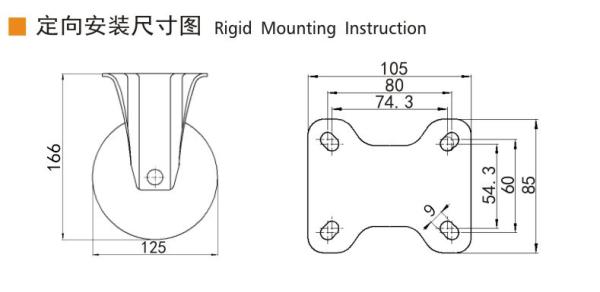

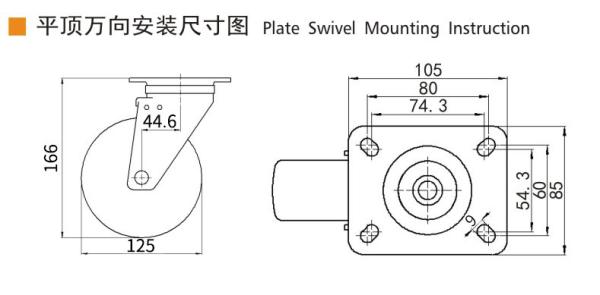

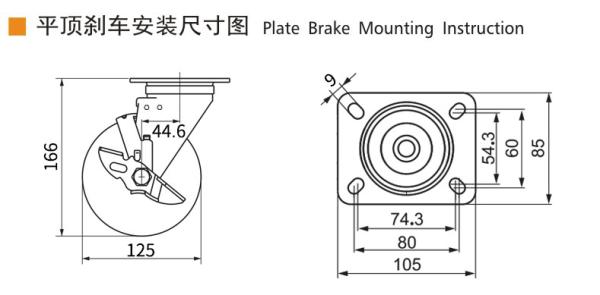

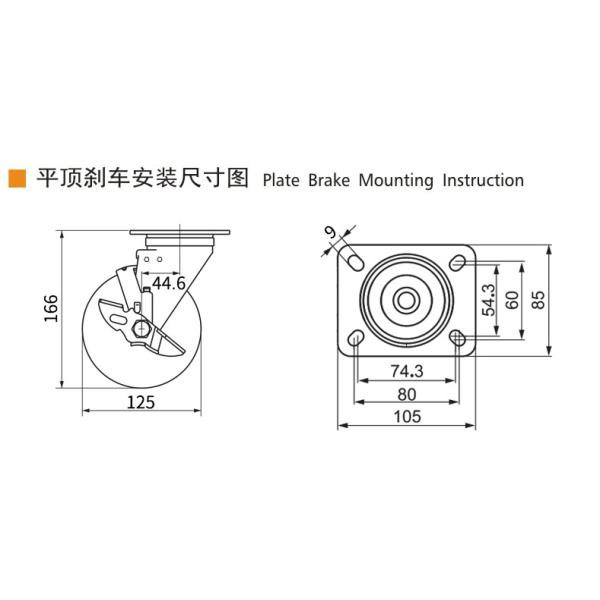

Mounting Height :
166mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
4mm
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm
Bearing :
Double ball bearing
Tread Color :
White
Applicable Temperature :
-20℃～120℃
Tread Hardness :
67D
Name :
Industrial Caster Wheels
Description

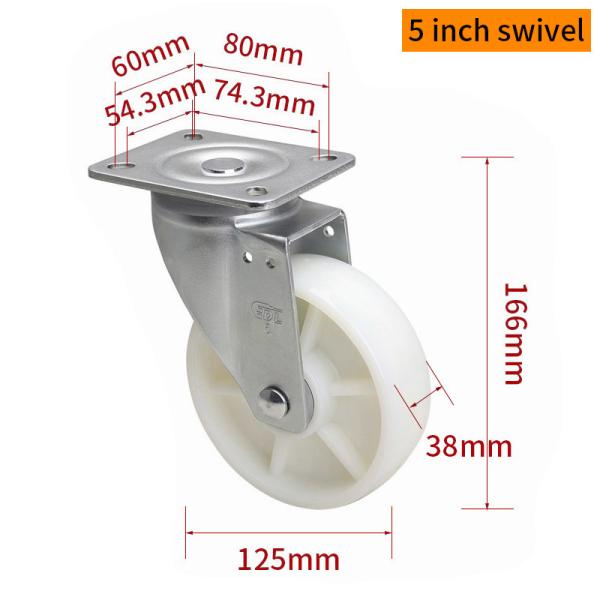

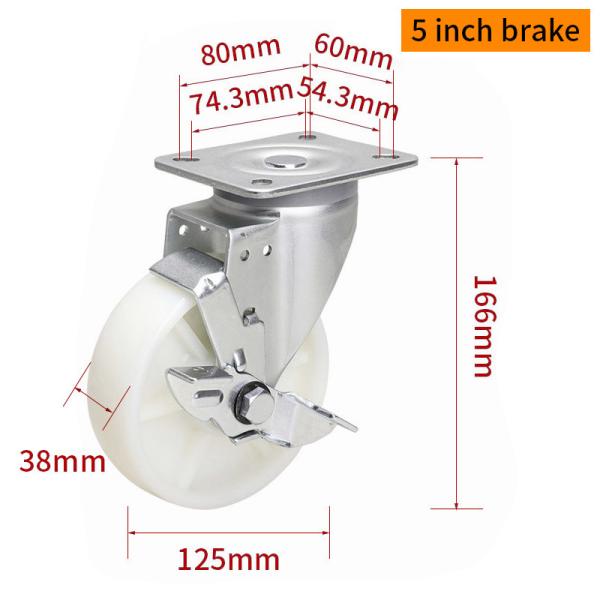

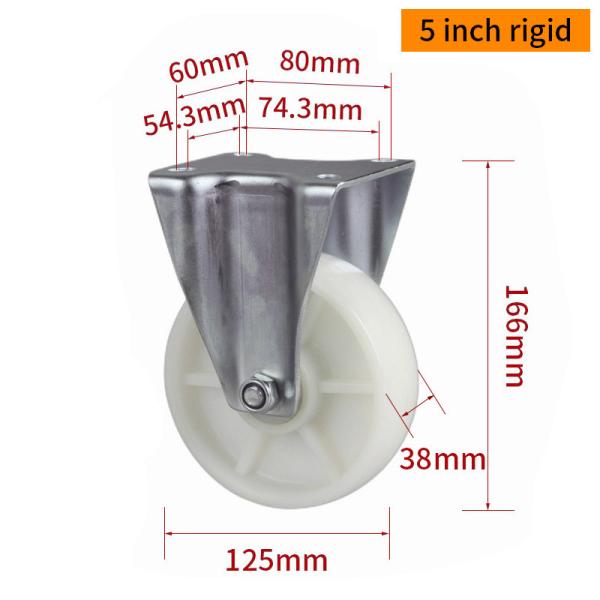

EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26


The EDL Medium Duty 5-inch TPA Plate Caster 665P-26 is built for high-load applications, supporting up to 250kg while ensuring durability and smooth mobility. The white TPA wheel features a hardness of 67D, offering exceptional wear resistance, shock absorption, and floor protection. Designed for varied environments, it operates effectively in temperatures ranging from -20°C to 120°C without compromising performance. The reinforced 4mm thick plate bracket enhances stability and load-bearing capacity, making it ideal for industrial and commercial applications. The dual-bearing system ensures low rolling resistance and effortless maneuverability, even under heavy loads. Equipped with both dual brake and side brake options, this caster provides secure locking and precise control, ensuring safety in various working conditions. Whether for material handling, factory equipment, or warehouse carts, this caster combines strength, reliability, and easy mobility, optimizing workflow and enhancing operational efficiency.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

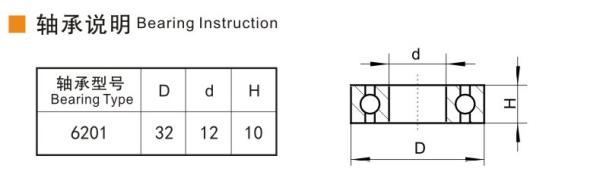

 Core Tread Bearing

Applicable

Temperature

 Hardness
665-26 5" 125mm 38mm 46mm 250Kg /

TPA

Double ball

bearing 6201

 -20℃～120℃ 67D

EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26

EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26

EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26

EDL‌ Medium Duty 5inch Caster TPA Plate by Rigid , Swivel and Brake Type 250kg 665P-26

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
