EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
Specifications
Brand Name :
EDL
Model Number :
665S-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton

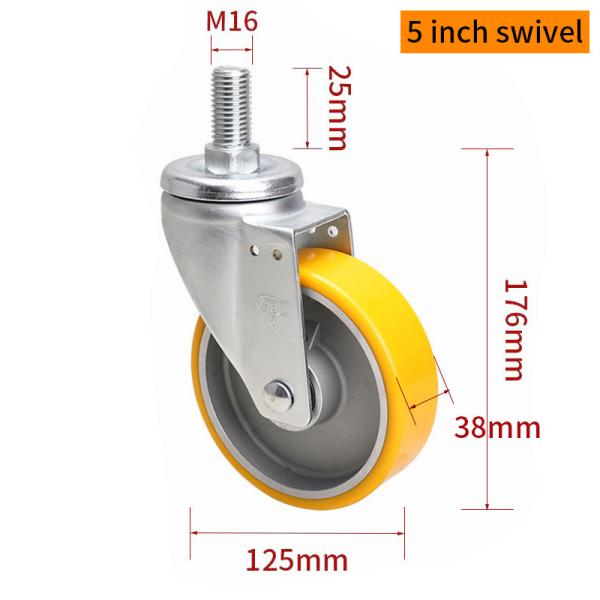

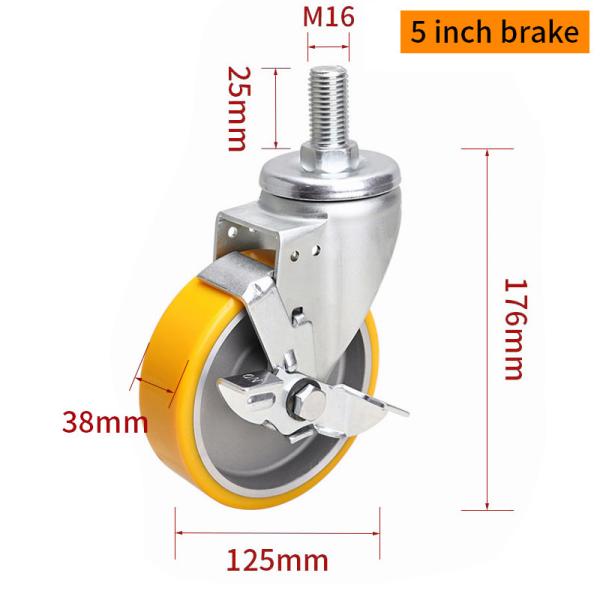

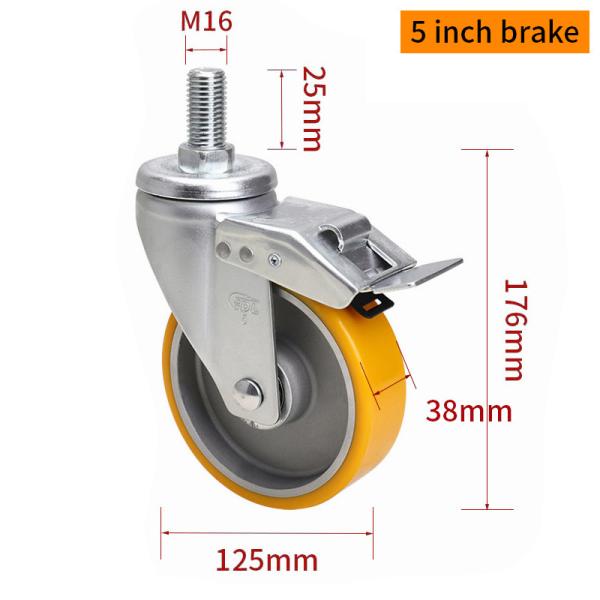

Wheel Diameter :
5inch(125mm)
Dynamic Load :
300kg
Tread Material :
TPU
Core Material :
Aluminum

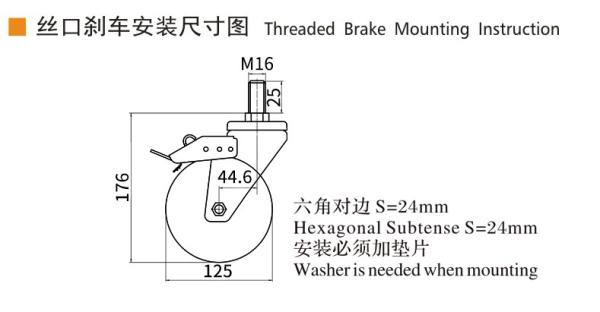

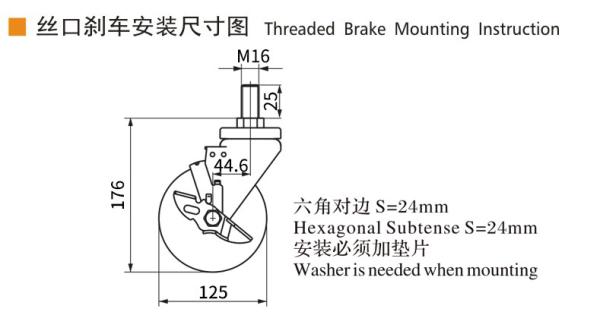

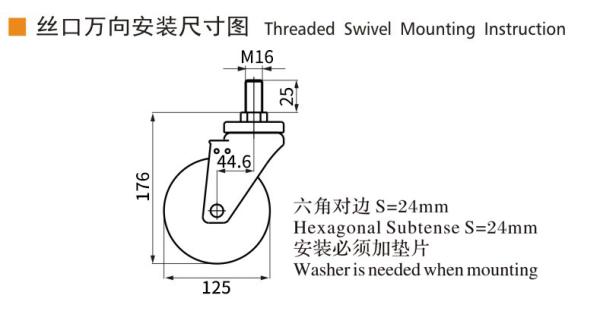

Standard Threaded :
M16×25
Mounting Type :
Swivel/Brake
Mounting Height :
176mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
92A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A


The EDL Medium Duty 5-inch Threaded Aluminum Caster 665S-86A is built for high-load applications, supporting up to 300kg with exceptional durability and smooth mobility. The yellow TPU tread offers excellent shock absorption, noise reduction, and floor protection, making it perfect for industrial, medical, and commercial environments. The aluminum alloy wheel core ensures high strength, wear resistance, and long service life, preventing deformation under heavy loads. Designed with a threaded stem installation, this caster allows secure and easy mounting, while the reinforced 3mm thick bracket enhances overall stability and load-bearing capacity. The dual-bearing system ensures effortless movement and reduced rolling resistance, making transport smooth even with maximum loads. Equipped with both dual brake and side brake options, it provides secure locking and precise control, ensuring safety in dynamic working environments. Whether for heavy-duty carts, machinery, or mobile equipment, this caster delivers strength, reliability, and superior maneuverability in every use.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
665-86A 5" 125mm 38mm 46mm 300Kg Aluminum

TPU

Double ball

bearing 6201

 -30℃～80℃ 92A

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86AEDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86AEDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86AEDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86AEDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
