Specifications
Brand Name :
EDL
Model Number :
664S-56
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
4inch(100mm)
Dynamic Load :
200kg
Tread Material :
TPE
Core Material :
PP

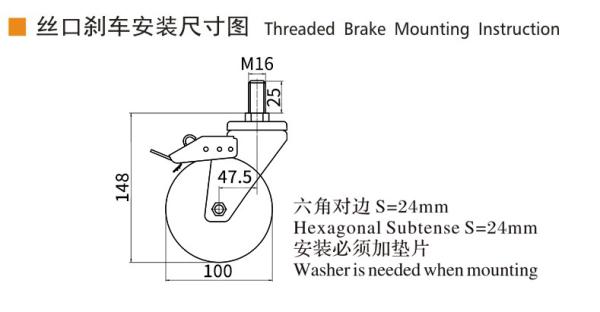

Standard Threaded :
M16×25
Mounting Type :
Swivel/Brake
Mounting Height :
148mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm
Bearing :
Double ball bearing
Tread Color :
Grey
Applicable Temperature :
-30℃～70℃
Tread Hardness :
80A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56


The EDL Medium Duty 4-inch Threaded TPE Caster 664S-56 is designed for high-performance load capacity up to 200kg while ensuring exceptional quiet operation. The gray TPE wheel offers superior elasticity and shock absorption, reducing vibrations and protecting floors from damage. Its soft material ensures ultra-quiet movement, making it ideal for hospitals, offices, and noise-sensitive environments. The threaded stem installation provides a secure and stable attachment, while the 3mm thick reinforced bracket enhances strength and durability. Equipped with a dual-bearing system, it guarantees smooth rolling under heavy loads. With both dual brake and side brake options, users can easily control movement and secure the caster when needed. Whether for medical carts, warehouse trolleys, or furniture, this caster delivers silent, smooth, and reliable mobility.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
664-56 4" 100mm 38mm 46mm 200Kg PP

TPE

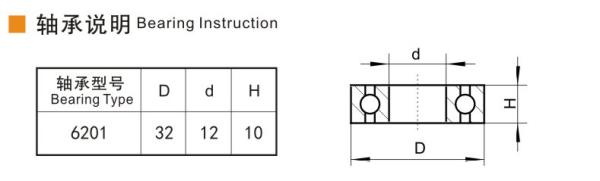

Double ball

bearing 6201

 -30℃～70℃ 80A

EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56

EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56

EDL Medium Duty TPE Caster 4inch 200kg Threaded by Swivel and Brake type 664S-56

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
