EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
Specifications
Brand Name :
EDL
Model Number :
664S-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton

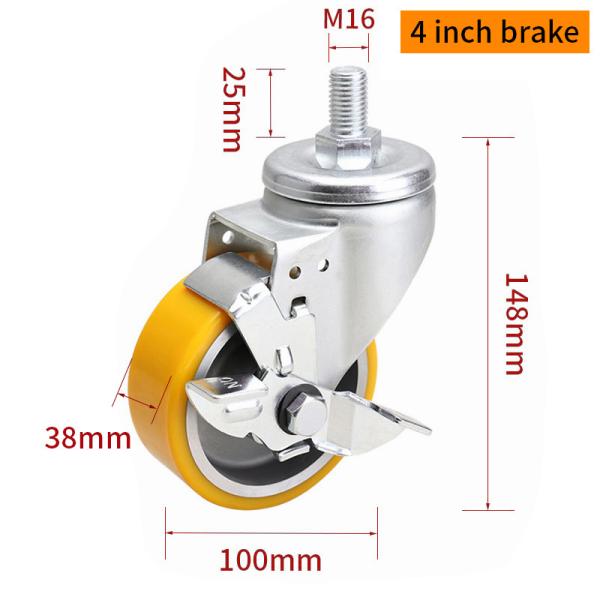

Wheel Diameter :
4inch(100mm)
Dynamic Load :
300kg
Tread Material :
TPU
Core Material :
Aluminum

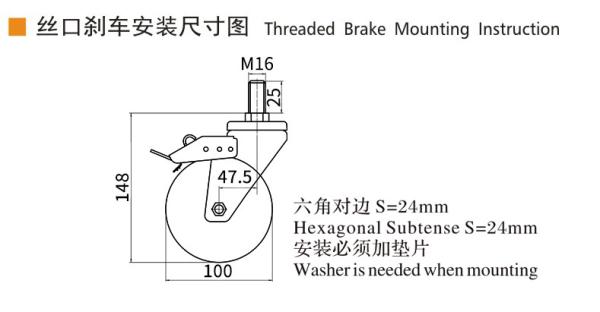

Standard Threaded :
M16×25
Mounting Type :
Swivel/Brake
Mounting Height :
148mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
92A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A


The EDL Medium Duty 4-inch Threaded Aluminum Caster 664S-86A is designed for heavy-duty performance, supporting up to 300kg with exceptional durability. The yellow TPU tread provides superior shock absorption, floor protection, and quiet operation, making it ideal for sensitive environments like warehouses, medical facilities, and commercial spaces. Its aluminum alloy wheel core enhances strength and longevity, ensuring resistance to deformation even under heavy loads. The threaded stem installation offers secure and easy mounting, while the reinforced 3mm thick bracket provides enhanced stability and load capacity. The precision dual-bearing system ensures smooth and effortless movement, reducing push force even when carrying heavy loads. With both dual brake and side brake options, users can lock the wheel securely for added safety and control. This caster is ideal for demanding applications, combining strength, noise reduction, and seamless maneuverability in one compact design.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
664-86A 4" 100mm 38mm 46mm 300Kg Aluminum

TPU

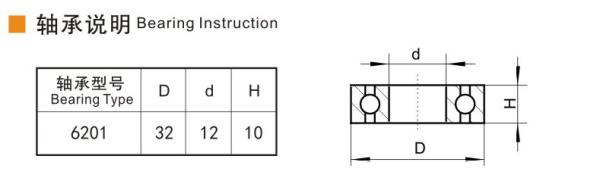

Double ball

bearing 6201

 -30℃～80℃ 92A

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86AEDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86AEDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86AEDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86AEDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
