EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56
Specifications
Brand Name :
EDL
Model Number :
666S-56
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
6inch(150mm)
Dynamic Load :
200kg
Tread Material :
TPE
Core Material :
PP
Standard Threaded :
M16×25
Mounting Type :
Swivel/Brake
Mounting Height :
201mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Bracket Thickness :
3mm
Bracket Width :
46mm
Wheel width :
38mm

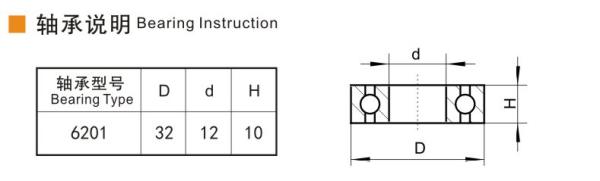

Bearing :
Double ball bearing
Tread Color :
Grey
Applicable Temperature :
-30℃～70℃
Tread Hardness :
80A
Name :
Industrial Caster Wheels
Description

EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56


The EDL Medium Duty 5-inch Threaded TPE Caster 665S-56 is engineered for smooth and quiet mobility, supporting up to 200kg with ease. The soft gray TPE wheel effectively absorbs shocks and vibrations, ensuring low noise levels, making it ideal for hospitals, offices, libraries, and other noise-sensitive environments. Its floor-protective material prevents scratches and extends surface durability. Designed to perform reliably in varying conditions, this caster operates efficiently in temperatures ranging from -30°C to 70°C. The secure threaded stem installation allows for quick and stable mounting, while the reinforced 3mm thick bracket enhances durability and structural integrity. The high-precision dual-bearing system enables effortless movement and reduced rolling resistance, even under heavy loads. Equipped with both dual brake and side brake options, it provides enhanced control and stability, preventing unintended movement. Whether for medical carts, industrial trolleys, or commercial equipment, this caster offers a perfect combination of strength, noise reduction, and maneuverability.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
666-56 6" 150mm 38mm 46mm 200Kg PP

TPE

Double ball

bearing 6201

 -30℃～70℃ 80A

EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56

EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56

EDL Medium Duty TPE Caster 6inch 200kg Threaded by Swivel and Brake type 666S-56

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
