6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77
Specifications
Brand Name :
EDL
Model Number :
5726S-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
6inch(150mm)
Dynamic Load :
130kg
Core Material :
PP
Tread Material :
TPU
Mounting Type :
Swivel / Brake
Mounting Height :
196mm
Frame Material :
Cold-Rolled Plate
Surface Treatment :
Chrome Coating
Standard Threaded :
M16×25
Bracket Thickness :
2.5mm
Bracket Width :
41mm
Wheel width :
31mm
Bearing :
Single ball bearing
Tread Color :
Grey
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Name :
Industrial Caster Wheels
Description

EDL Industrial TPU Casters 6inch 130kg Chrome Coating Threaded by Swivel and Brake 5726S-77


The EDL Industrial 6-inch 130kg Chrome Coating Threaded TPU Caster by Swivel and Brake 5726S-77 is engineered for heavy-duty performance with a touch of style. Made from durable TPU material, it offers exceptional wear resistance and can support a load of up to 130kg. The 6-inch large wheels provide enhanced stability and smooth movement, making it ideal for environments requiring higher weight capacity and durability. The single ball bearing ensures smooth rotation, while the threaded stem makes for easy installation. Featuring a chrome-coated bracket, this caster stands out for both its aesthetic appeal and its resistance to corrosion, making it perfect for long-term use in challenging industrial settings. The plastic dual brake system ensures secure stopping, and the 2.5mm thick bracket improves its overall stability and load-bearing capacity.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
5726-77 6" 150mm 31mm 41mm 130Kg PP

TPU

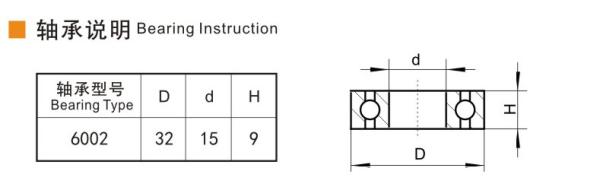

Single ball

bearing 6002

 -20℃～80℃ 95A

6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-776 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77

6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-776 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77

6 Inch 150mm Industrial Castors And Wheels Chrome Coating 5726S-77

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
